Specifications
Display Mode :
2004
Resolution :
20*04
is_customized :
Yes
View Size :
123.5×44.1mm
Controller :
ST7066U
Model Number :
Persian 2004C-3
Type :
COB

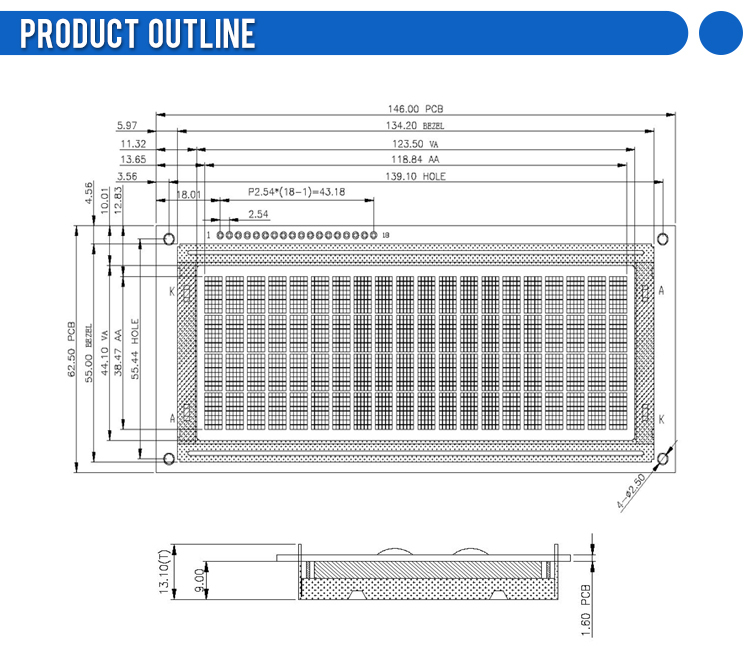

Outline Dimension :
146×62.5×13.1mm
Hign-concerned Chemical :
None
Origin :
Mainland China
Color :
Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
Description

Persian 2004C-3

The Persian 2004C-3 offers a reliable and efficient display solution for a variety of industrial and commercial applications. Designed for clarity and durability, this COB display module delivers consistent performance in demanding environments.

Ideal for use in:

  • Industrial control panels
  • Instrumentation equipment
  • Point-of-sale systems
  • Embedded systems

Product Attributes

FOB Unit: piece
Product MOQ: Not Specified
FOB Price: 9.88 USD
Packaging & Delivery: Not Specified

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 2004
Resolution 20*04
Is Customized Yes
Model Number Persian 2004C-3
Type COB
Origin Mainland China
Outline Dimension 146×62.5×13.1mm
View Size 123.5×44.1mm
Controller ST7066U

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

Persian Gray Film 2004C-3 Large Character LCD Module Character Module COB Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
