Specifications
Attribute :
Black Color
Type :
COB
Value :
Black-Blue, Black-Green, Black-Ice Blue, Black-Orange, Black-Purple, Black-Red, Black-White, Black-Yellow
is_customized :
Yes
Model Number :
2004K
Hign-concerned Chemical :
None
View Size :
77×25.2mm

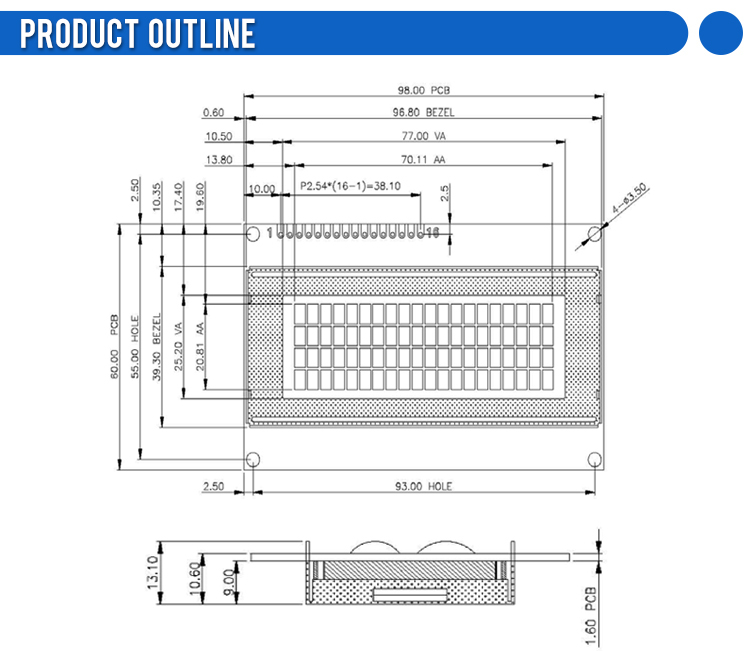

Outline Dimension :
98x60x13.4mm
Origin :
Mainland China
Resolution :
20*04
Display Mode :
2004
Controller :
ST7066U
Description

2004K LCD Display

High-quality 2004K LCD display, ideal for a variety of industrial and commercial applications. This reliable display offers clear visibility and consistent performance.

Key Benefits:

  • Clear and readable display
  • Durable construction for long-lasting use
  • Customizable options available
  • Easy integration into existing systems
  • Cost-effective solution for display needs

Target Industries & Applications:

Suitable for use in industrial control panels, instrumentation, point-of-sale systems, and other applications requiring a reliable and clear display.

Product Attributes

FOB Unit: Piece
Product MOQ: 0
FOB Price: $3.47

Technical Specifications

AttributeValue
Hign-concerned ChemicalNone
Display Mode2004
Resolution20*04
is_customizedYes
Model Number2004K
TypeCOB
OriginMainland China
Outline Dimension98x60x13.4mm
View Size77×25.2mm
ControllerST7066U


BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

BTN Black Film 2004K ST7063 LCD Display 2004 IIC/I2C Interface Adapter Board ST7066U Display Monitor

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
