Specifications
is_customized :
Yes
Model Number :
Owen 320240B1

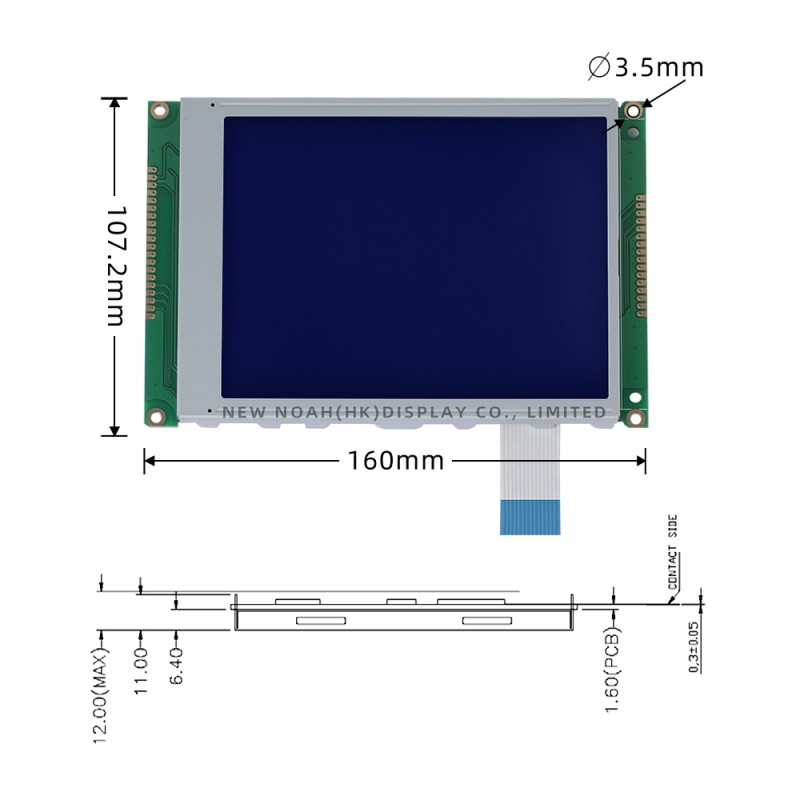

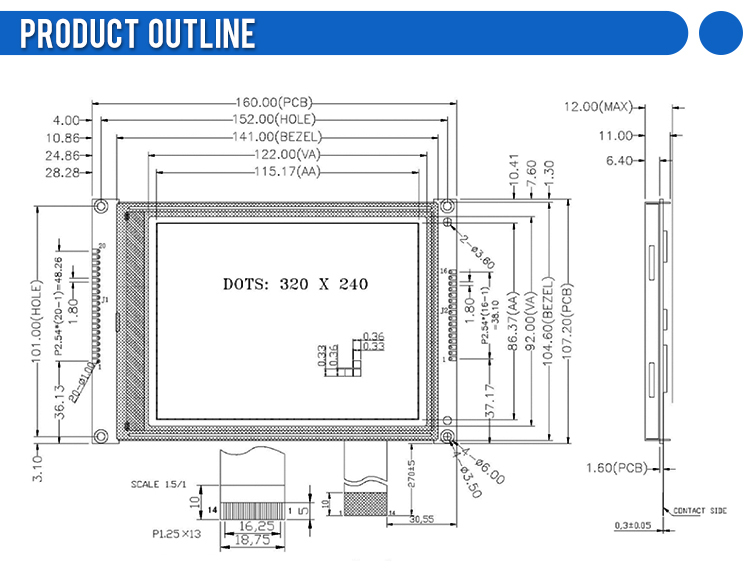

Outline Dimension :
160×107.2x12mm
Controller :
NT7086PQ
Display Mode :
320240
Color :
Blue Film
View Size :
122x92mm
Hign-concerned Chemical :
None
Resolution :
320*240
Origin :
Mainland China
Type :
COB
Description

Owen 320240B1

High-performance display module for industrial applications.

The Owen 320240B1 is a reliable and versatile display module designed for demanding B2B environments. Offering a clear visual interface, it's ideal for integration into a variety of industrial control systems and devices.

This module provides a cost-effective solution without compromising on quality or performance.

Key Benefits:

  • Clear and crisp display
  • Robust and reliable design
  • Easy integration
  • Cost-effective solution
  • Customizable options available

Target Industries & Applications:

Industrial Automation, Control Systems, Medical Devices, Instrumentation.

Product Attributes

FOB Price: $186.0 / piece

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 320240
Resolution 320*240
Is Customized Yes
Model Number Owen 320240B1
Type COB
Origin Mainland China
Outline Dimension 160×107.2x12mm
View Size 122x92mm
Controller NT7086PQ

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

Blue Film Manufacturer 320240B1 LCD Display Module With Controller NT7086PQ 5.7-Inch Display Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
