Specifications
Controller :
RA8835A

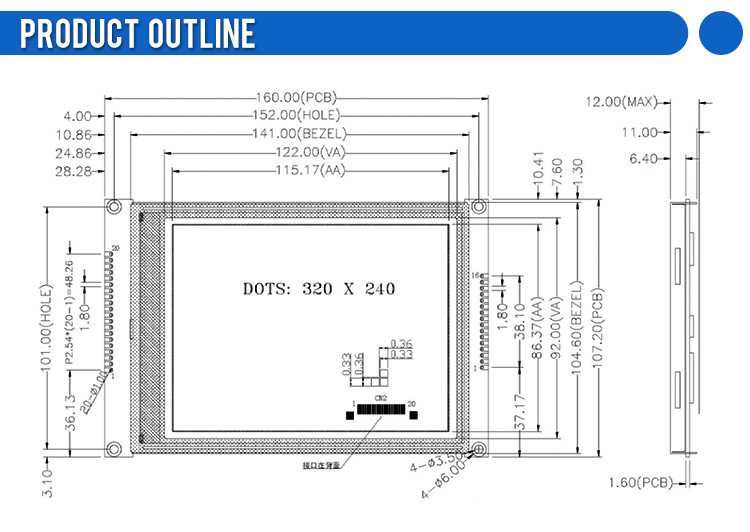

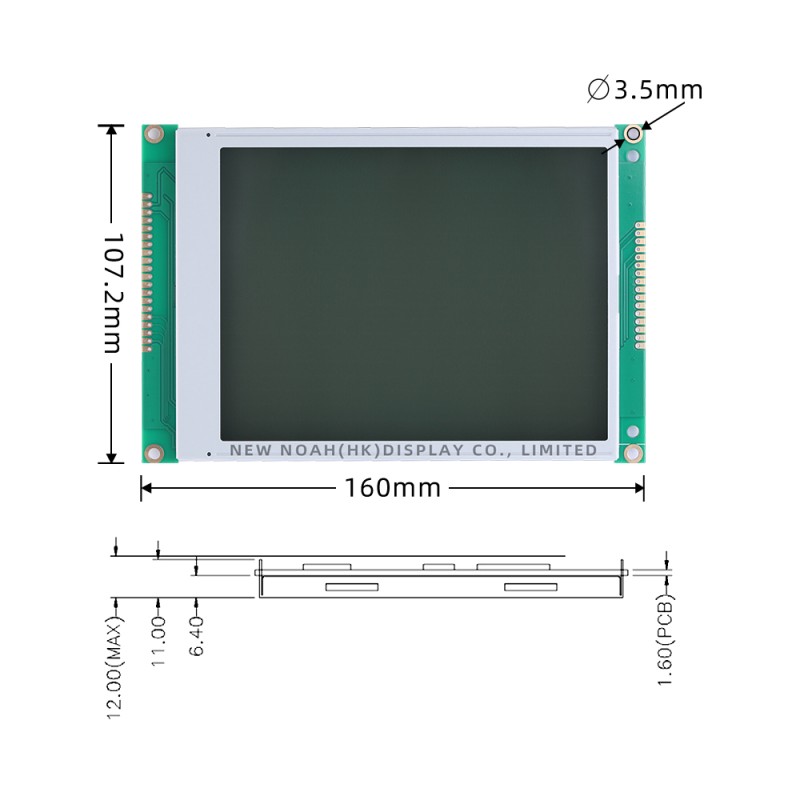

Outline Dimension :
160×107.2x12mm
Hign-concerned Chemical :
None
Display Mode :
320240
is_customized :
Yes
Color :
Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
Resolution :
320*240
Origin :
Mainland China
View Size :
122x92mm
Type :
COB
Model Number :
Owen 320240B
Description

Owen 320240B

High-quality display module, ideal for various industrial and commercial applications. The Owen 320240B offers a crisp and clear display with a resolution of 320x240.

Key Benefits:

  • Clear and Crisp Display
  • Customizable Design
  • Durable and Reliable
  • Easy Integration

Target Industries: Industrial automation, medical devices, consumer electronics.

Applications: Control panels, handheld devices, instrumentation.

Product Attributes

FOB Price $295.0
FOB Unit piece
Product MOQ Not Specified
Packaging & Delivery Not Specified

Technical Specifications

Attribute Value
Display Mode 320240
Hign-concerned Chemical None
Resolution 320*240
is_customized Yes
Model Number Owen 320240B
Type COB
Origin Mainland China
Outline Dimension 160×107.2x12mm
View Size 122x92mm
Controller RA8835A

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

Grey Film 320240B Graphic LCD Display Screen With Uv ResiStant Material RA8835 5.7-Inch Display Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
