Specifications
Model Number :
OLED1602A
Type :
OLED
Hign-concerned Chemical :
None
Resolution :
16*2
is_customized :
Yes

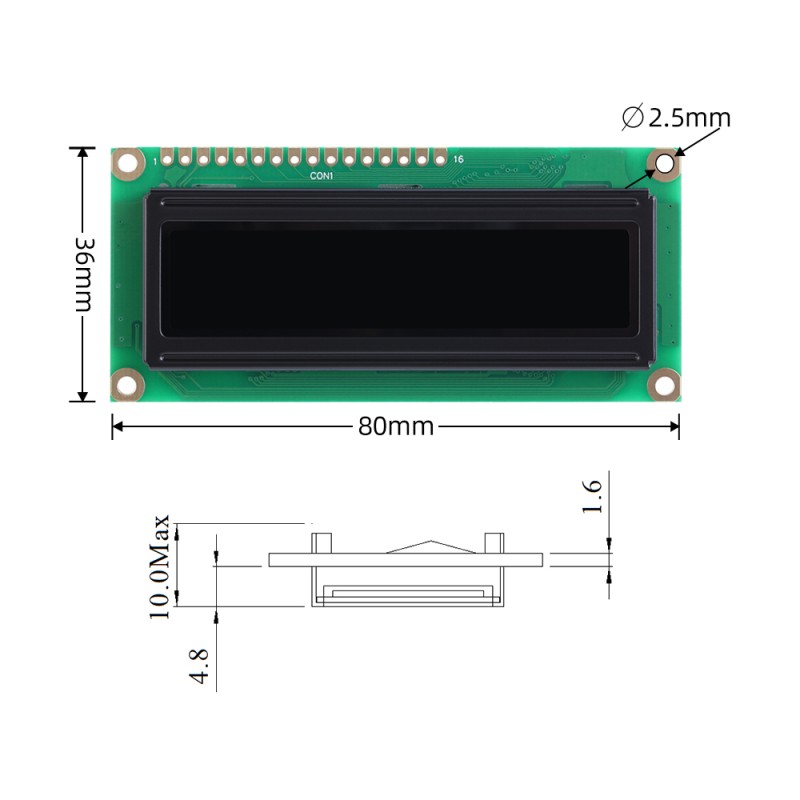

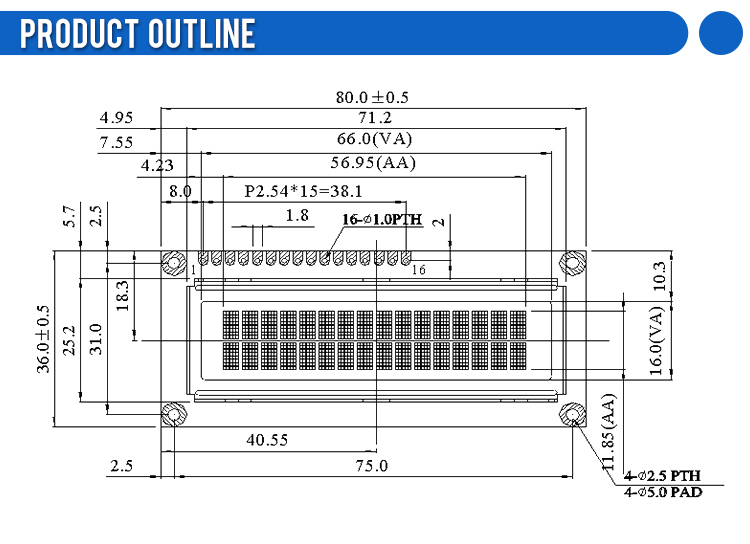

Outline Dimension :
80×36×10mm
Origin :
Mainland China
View Size :
66×16mm
Display Mode :
OLED1602A
Color :
Black Film
Controller :
WS0010-TX
Description

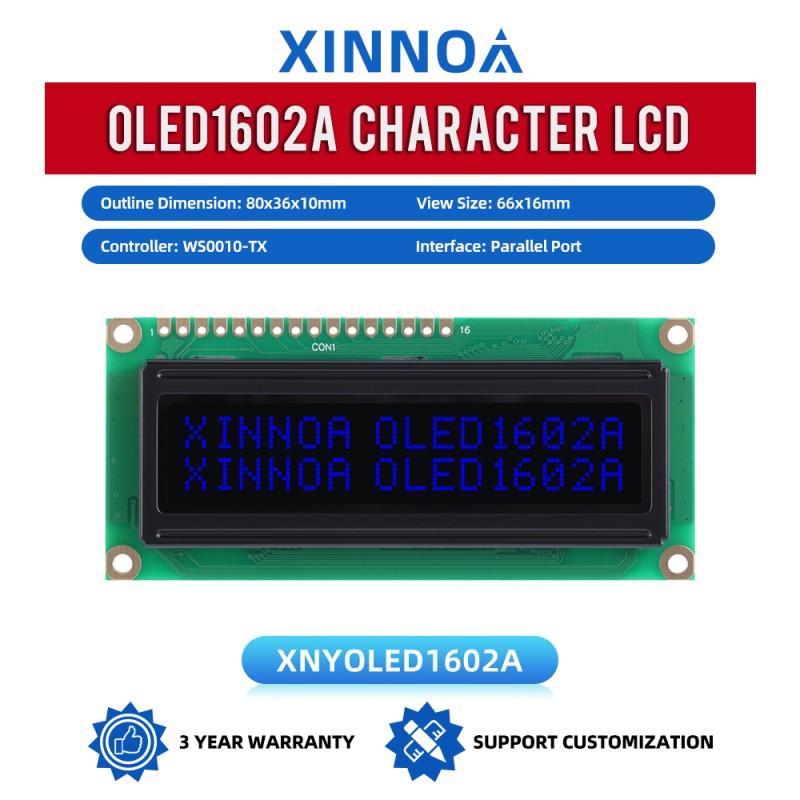

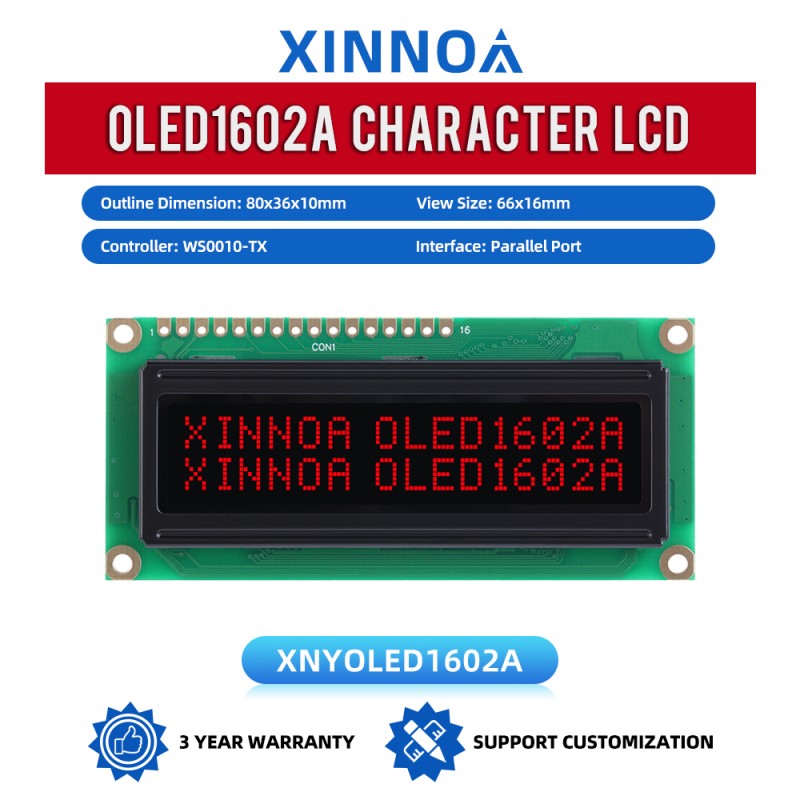

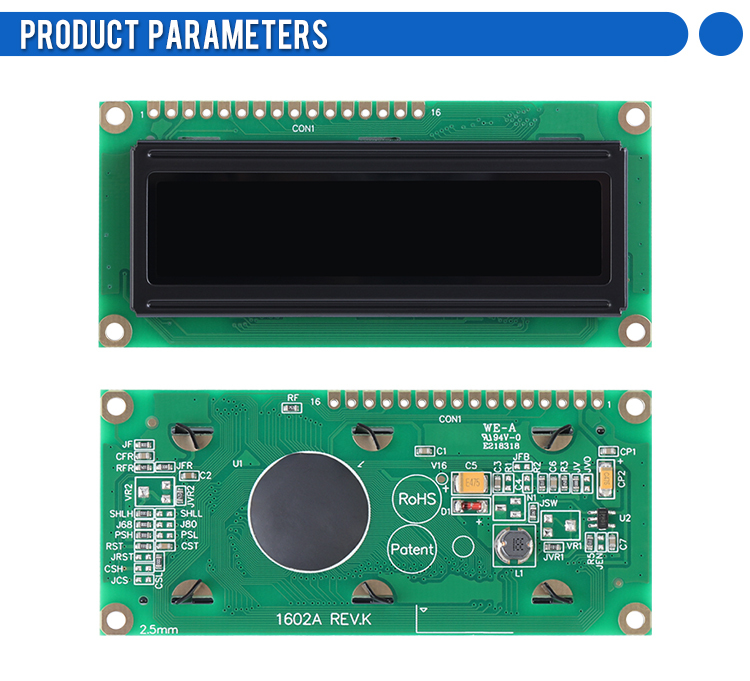

OLED1602A Character LCD Module

The OLED1602A Character LCD Module (XNYOLED1602A) is a reliable and versatile character display solution suitable for a wide range of applications. This compact module offers clear and concise text information display, making it ideal for integration into various electronic devices and embedded systems.

Key Benefits:

  • Clear and concise character display
  • Compact and easy to integrate (80×36×10mm outline dimension)
  • Durable and reliable performance (backed by a 3-year warranty)
  • Cost-effective character display solution
  • Customizable to meet specific interface or application requirements
  • Stable signal transmission with WS0010-TX controller and parallel port interface

Target Industries and Applications:

This 16×2 character OLED LCD module features self-luminous OLED display technology, ensuring ultra-high contrast ratio and crisp text readability under all ambient light conditions. Equipped with a parallel port interface and integrated WS0010-TX driver IC, it supports stable signal transmission and consistent performance. With its compact structure and wide operating temperature adaptability, it delivers reliable long-term working performance in diverse environments, suitable for:

  • Industrial control panels
  • Smart instruments and meters
  • Consumer electronics
  • Embedded system displays
  • Portable electronic devices
  • Smart home devices

Product Attributes

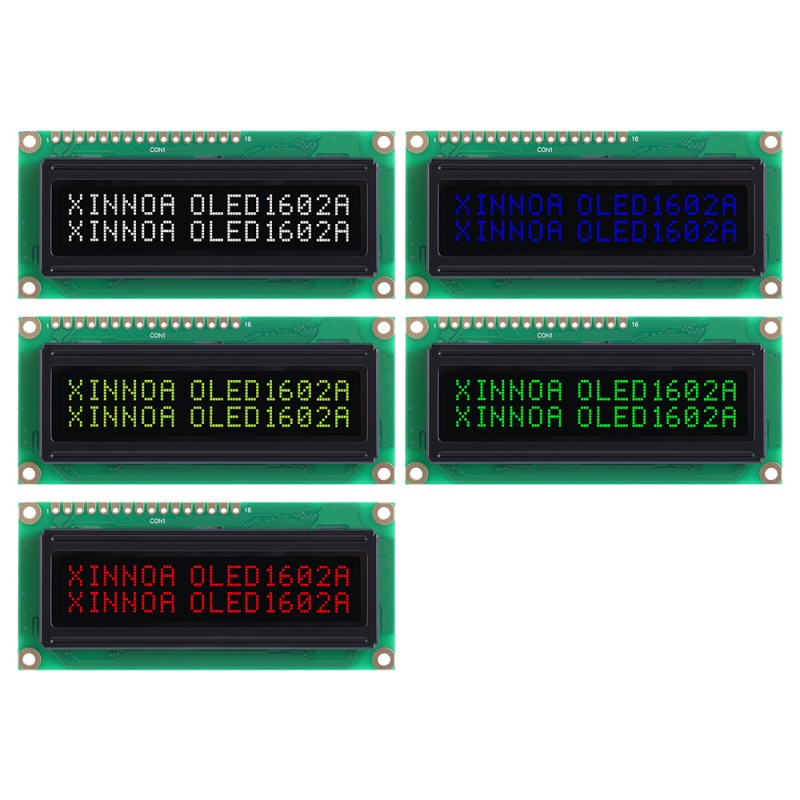

Attribute Value FOB Price FOB Unit

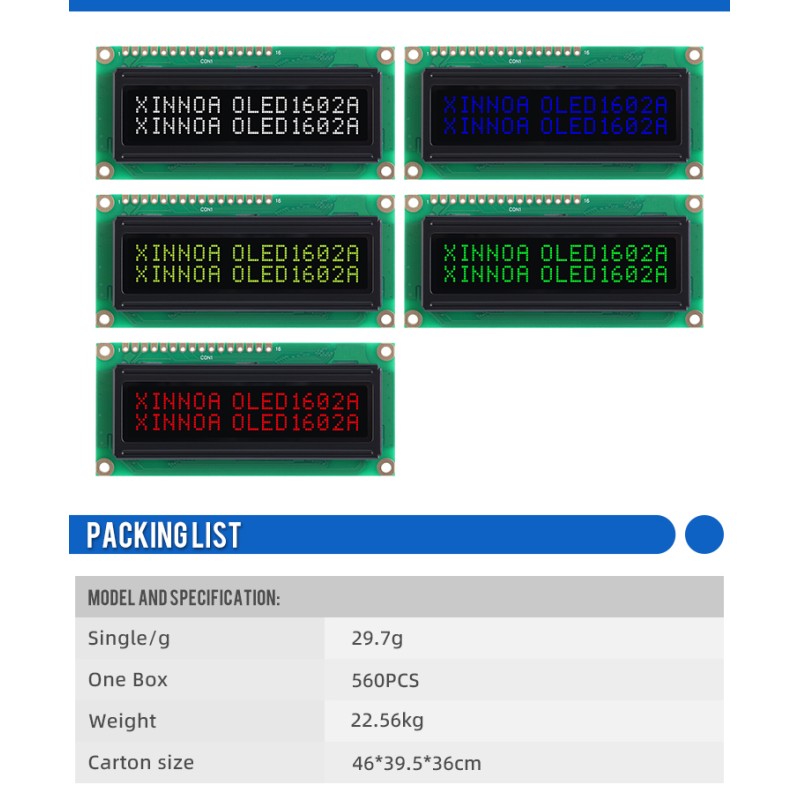

Black Color Black-White $95 Piece
Black Color Black-Blue $98 Piece
Black Color Black-Yellow $96 Piece
Black Color Black-Green $97 Piece
Black Color Black-Red $99 Piece

Technical Specifications

Attribute Value
Display Mode OLED1602A
Hign-concerned Chemical None
Resolution

16*2
is_customized Yes
Model Number OLED1602A
Type OLED
Origin Mainland China
Outline Dimension 80×36×10mm
View Size 66×16mm
Controller WS0010-TX


OLED1602A Black Film, 16×2 Character OLED LCD Display Module, WS0010-TX, Parallel Interface, 66x16mm View Size, Working Temperature -40+80 Display

OLED1602A Black Film, 16×2 Character OLED LCD Display Module, WS0010-TX, Parallel Interface, 66x16mm View Size, Working Temperature -40+80 Display

OLED1602A Black Film, 16×2 Character OLED LCD Display Module, WS0010-TX, Parallel Interface, 66x16mm View Size, Working Temperature -40+80 Display

OLED1602A Black Film, 16×2 Character OLED LCD Display Module, WS0010-TX, Parallel Interface, 66x16mm View Size, Working Temperature -40+80 Display

OLED1602A Black Film, 16×2 Character OLED LCD Display Module, WS0010-TX, Parallel Interface, 66x16mm View Size, Working Temperature -40+80 Display

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
