Specifications
Controller :
WS0010-TX
is_customized :
Yes
Resolution :
20*02
View Size :
85×18.6mm
Hign-concerned Chemical :
None
Model Number :
OLED002002A
Display Mode :
OLED002002A

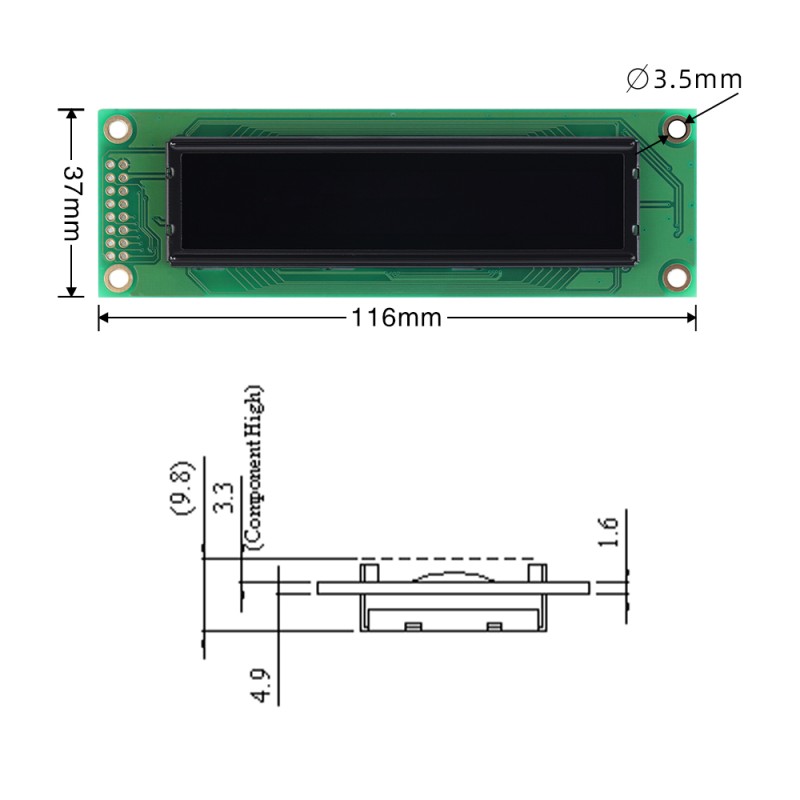

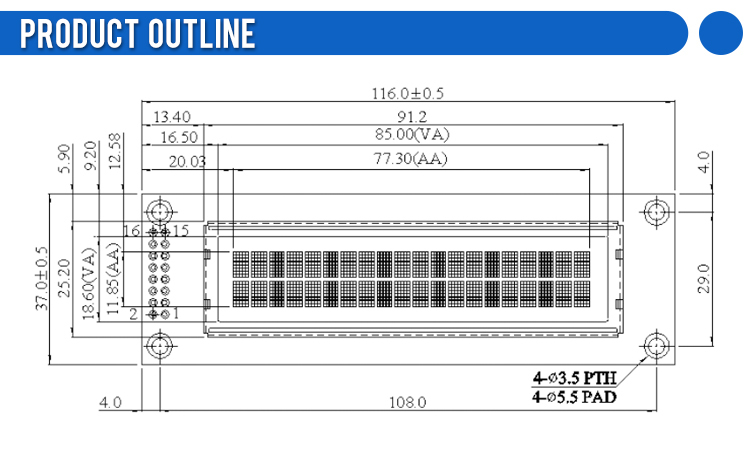

Outline Dimension :
116×37×9.8mm
Type :
OLED
Origin :
Mainland China
Color :
Black Film
Description

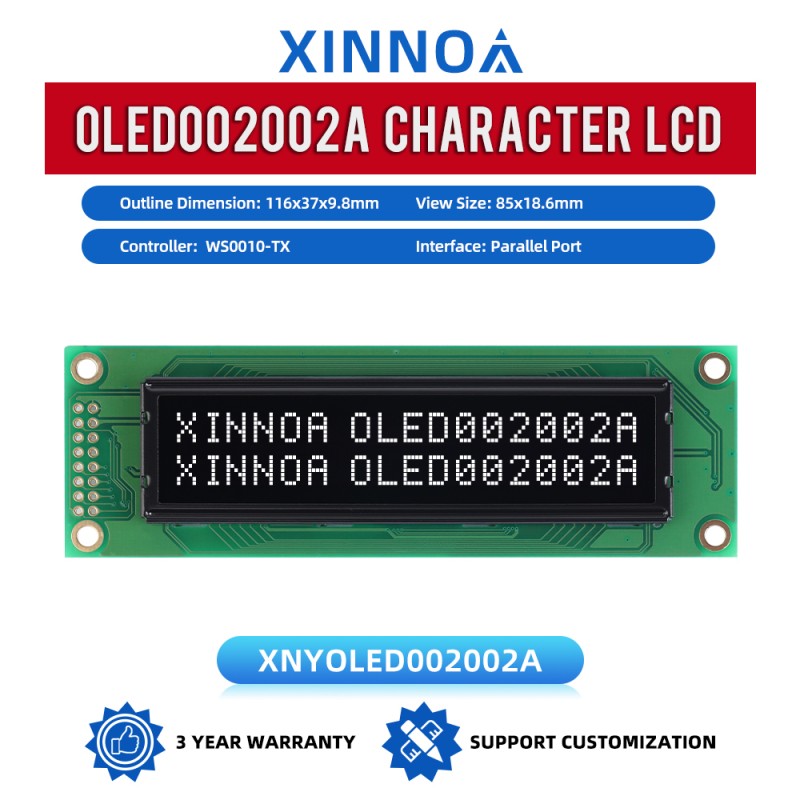

OLED002002A Character LCD Module

The OLED002002A Character LCD Module (XNYOLED002002A) is a reliable and versatile character display solution designed for seamless integration into a wide range of electronic systems. This 20×2 character module delivers clear text information, making it ideal for industrial, consumer, and smart device applications.

Key Benefits:

  • Clear character display: Crisp 20×2 character output for intuitive information presentation
  • Standardized form factor: Easy-to-integrate 116×37×9.8mm outline dimension
  • Durable and stable performance: Backed by a 3-year warranty for long-term reliability
  • Cost-effective character display: Balanced performance and affordability for mass deployment
  • Customizable design: Tailored to meet specific interface, pinout, or branding requirements
  • Wide compatibility: Parallel port interface with WS0010-TX controller for easy MCU integration

Target Industries and Applications:

This 20×2 character OLED LCD module features a self-luminous display technology, ensuring high contrast ratio and clear readability across diverse ambient light conditions. Equipped with a parallel port interface and WS0010-TX driver IC, it supports stable signal transmission and consistent performance. With its robust structure and wide temperature adaptability, it delivers reliable long-term operation in challenging environments, making it suitable for:

  • Industrial control panels
  • Smart instruments and meters
  • Consumer electronics
  • Medical devices
  • Automotive infotainment systems
  • Embedded system displays

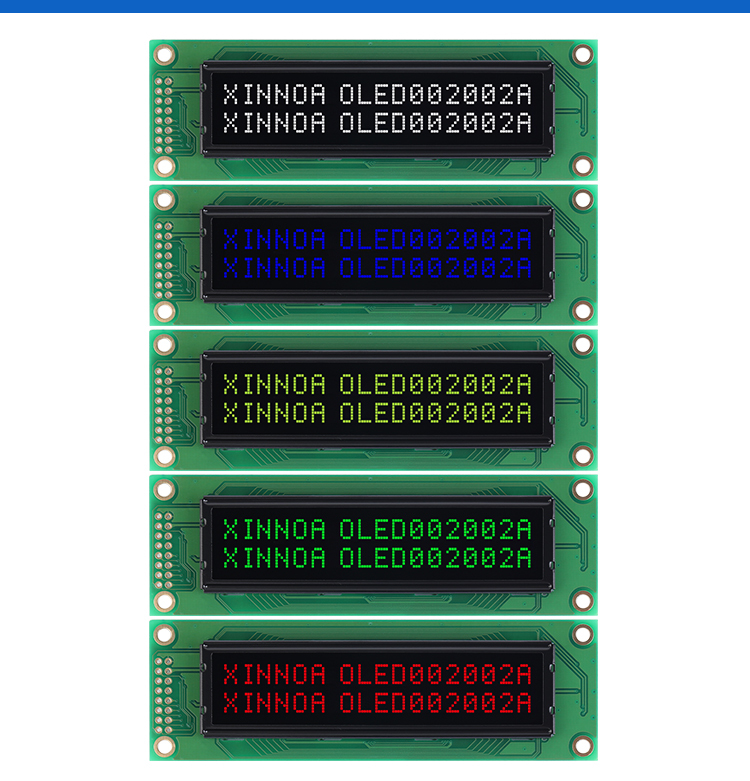

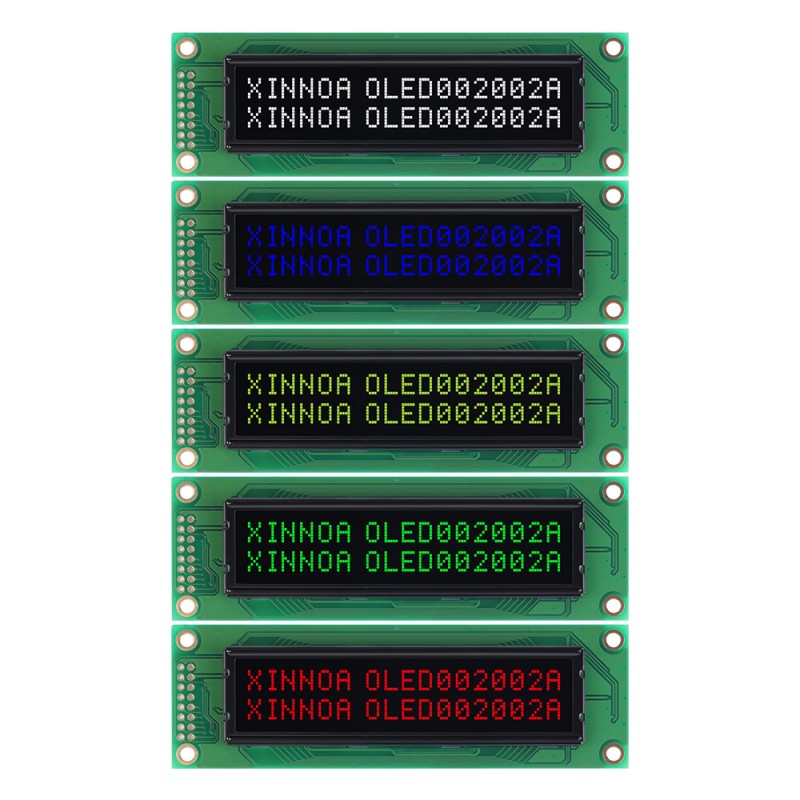

Product Attributes

Attribute Value FOB Price FOB Unit
Black Color Black-White $140.00 Piece
Black Color Black-Blue $144.00 Piece
Black Color Black-Yellow $141.00 Piece

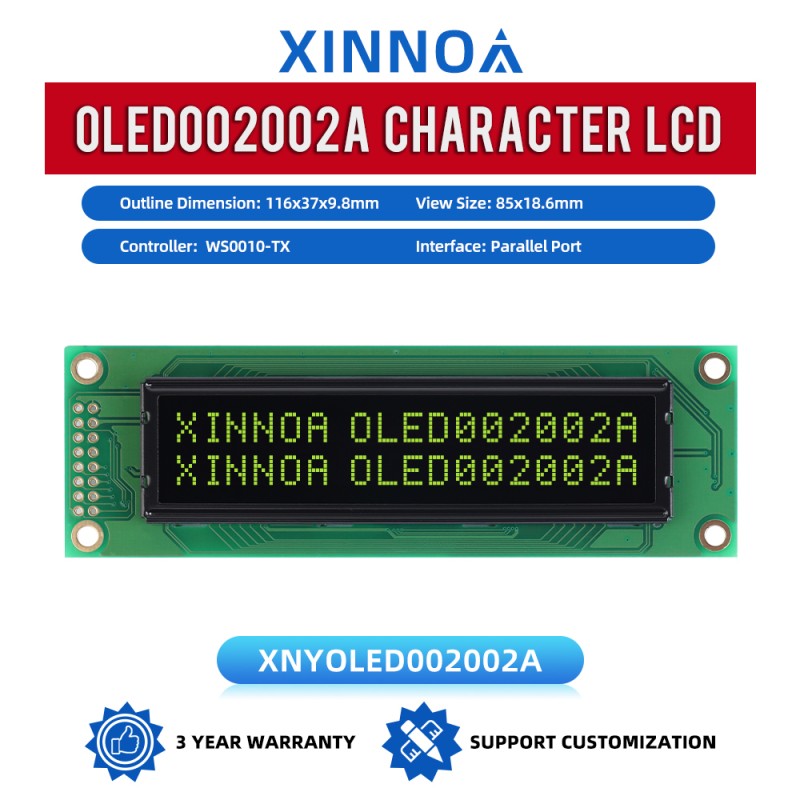

Black Color Black-Green $143.00 Piece

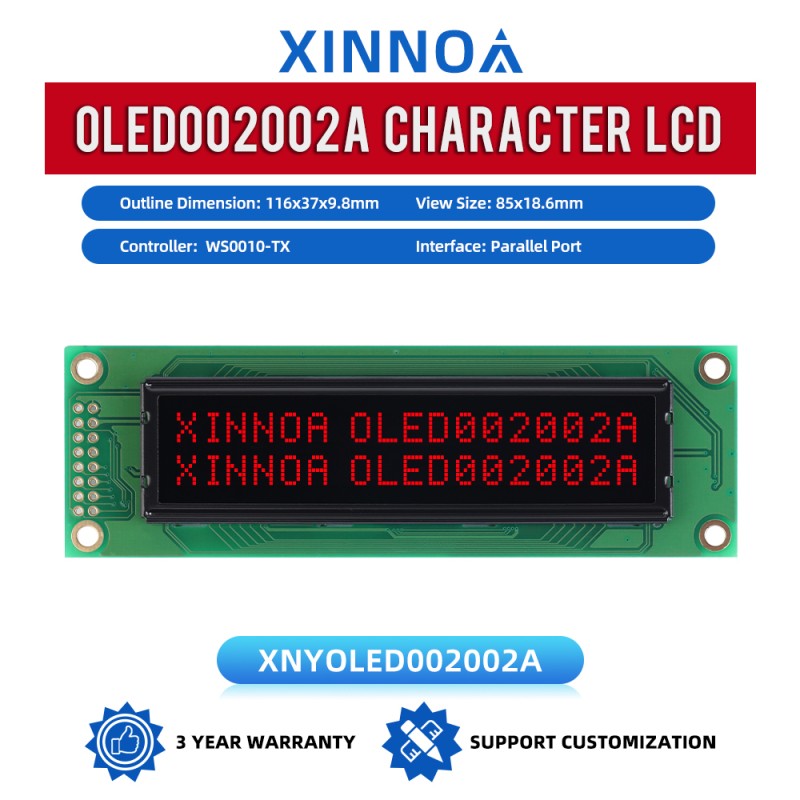

Black Color Black-Red $145.00 Piece

Technical Specifications

Attribute Value
Display Mode OLED002002A
Hign-concerned Chemical None
Resolution 20*02
is_customized Yes
Model Number OLED002002A
Type OLED
Origin Mainland China
Outline Dimension 116×37×9.8mm
View Size 85×18.6mm
Controller WS0010-TX

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

OLED002002A Character LCD Module, Black Film, Parallel Interface, 85x18.6mm View Size, WS0010-TX Controller

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
