1300 HP Drilling Rig Mud Pump 5000 PSI F-1300 Mud Pump API-7K
1300 HP Drilling Rig Mud Pump 5000 PSI F-1300 Mud Pump API-7K
Specifications
MOQ :
1 SET
Packaging Details :
woden carton
Brand Name :
RIG
Rated Power :
969 kW (1300 HP)
Maximum Pressure :
34.5 MPa (5000 psi)
Standard :
API Spec 7K
Application :
Onshore And Offshore Drilling
Certification :
API 7K
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Price :
USD100000-150000/SET
Model Number :
F-1300
Model :
F-1300
Place of Origin :
China
Delivery Time :
30-45days
Supply Ability :
10-20 sets/month
Type :
Triplex Mud Pump
Description

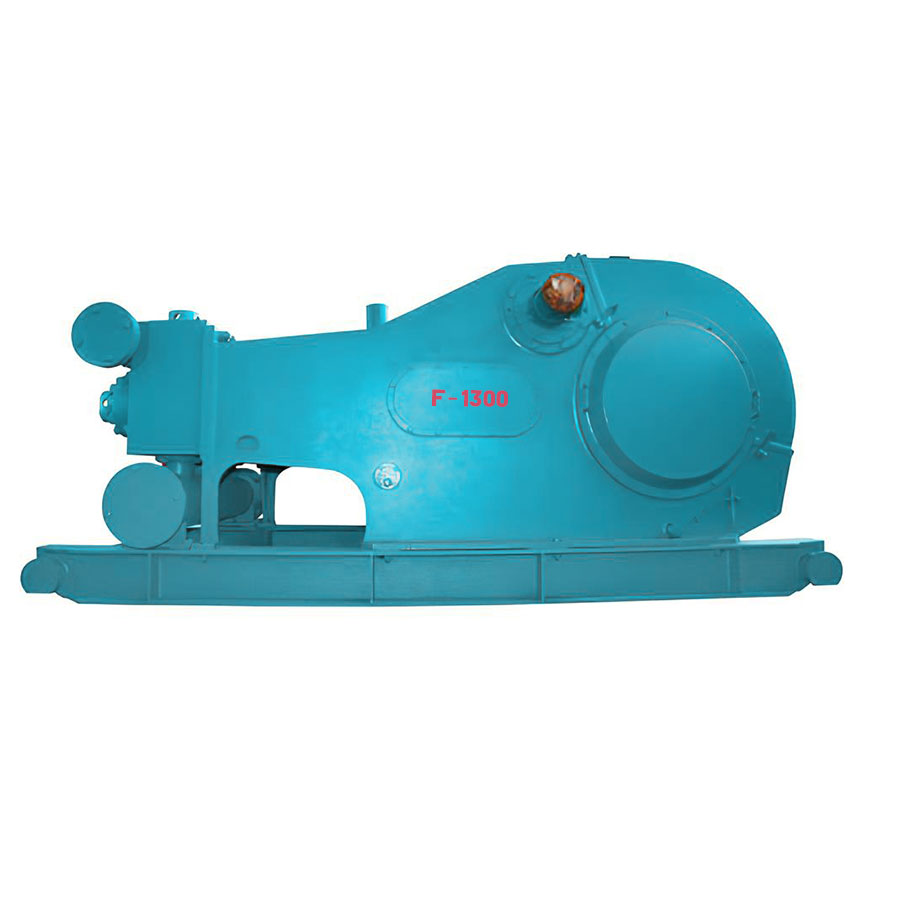

F-1300 Mud Pump

The F-1300 mud pump is a compact and robust solution designed for high-pressure and large-displacement drilling operations, both onshore and offshore. With a rated power of 969 kW (1300 HP) and a maximum pressure of 34.5 MPa (5000 psi), it complies with API Spec 7K standards, ensuring high performance and reliability.

The F-1300 Mud Pump is engineered to meet the demanding requirements of high-pressure and large-displacement drilling operations, both onshore and offshore. Its robust and compact design ensures excellent and reliable performance. The pump’s longer stroke length of 305 mm (12 in) enhances water supply performance at lower speeds, significantly extending the service life of fluid end components.

Manufactured in accordance with API Spec 7K standards, the fluid end parts are interchangeable with API-compliant components. The advanced suction pulsation damper ensures optimal suction performance, while the durable fluid end components significantly boost overall performance. The independent structure facilitates easier inspection, maintenance, and repairs, making the F-1300 an ideal choice for efficient and reliable drilling operations.

Specifications

Parameter Value
Rated Power 969 kW / 1300 HP
Type Triplex Single-acting
Strokes per Minute 120
Stroke Length 305 mm / 12 in
Max Liner Diameter 180 mm / 7 in
Gear Type Herringbone Gear
Valve Pot API-7 #
Gear Ratio 4.206:1
Suction Inlet Diameter 305 mm / 12 in
Discharge Outlet Diameter 5 1/8 in Flange 5000 psi
Pinion Shaft Diameter 215.9 mm / 8 1/2 in
Max Pressure 34.5 MPa / 5000 psi
Dimensions (L x W x H) 4617 x 3260 x 2600 mm
182 x 128 x 102 in
Weight 24572 kg / 54170 lbs
