Quenched Hook Block Interchangeable Hook Block Parts API 8C
Quenched Hook Block Interchangeable Hook Block Parts API 8C
Quenched Hook Block Interchangeable Hook Block Parts API 8C
Quenched Hook Block Interchangeable Hook Block Parts API 8C
Specifications
Delivery Time :
in stock
Dia. of wire line (mm/in) :
35/1 3/8
Model Number :
YG225
MOQ :
1 SET
Max. Hook Load (KN) :
2250
Weight (kg) :
3713
Number of sheaves :
5
Brand Name :
Xi'an Rig
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Dimensions (mm) :
2294x1190x630
Packaging Details :
woden carton
OD of Sheaves (mm/in) :
1120/44
Certification :
API
Description

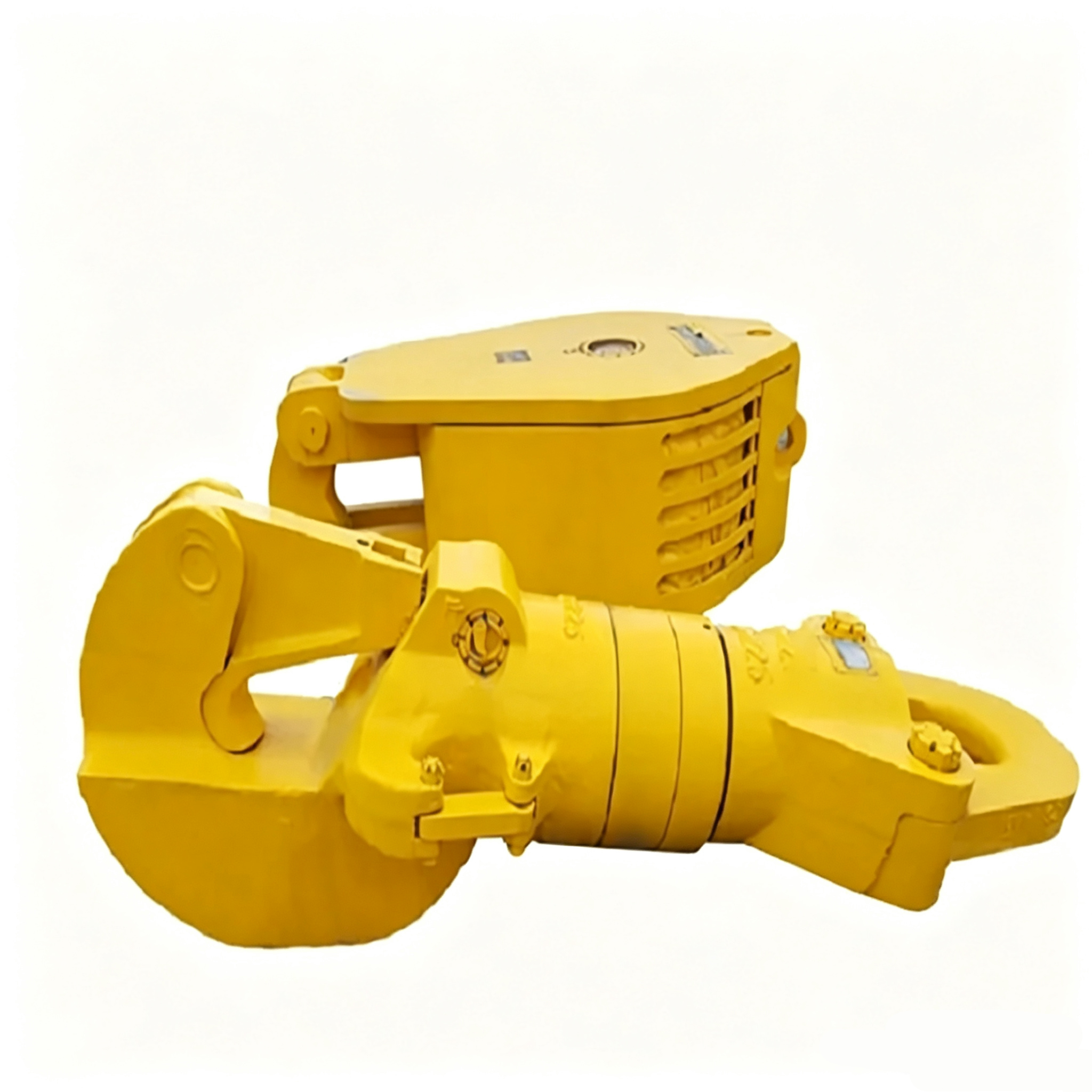

API 8C Travlling Block Spare Parts Hook Blocks for Oilfield

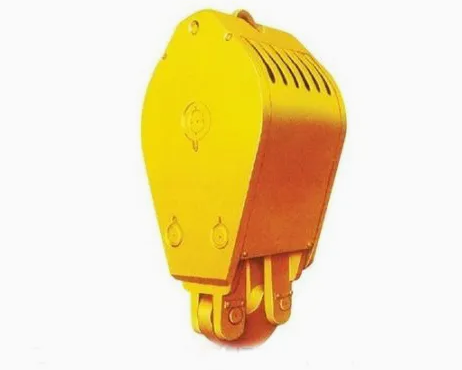

Traveling Block

In accordance with API Spec.8C and marked with API MONOGRAM;
Joining the Traveling Block and Hook together to reduce overall length.
The grooves are quenched to extent the service life.
Equipped with the rope covers.
There is a reliable safety device.

Model Parameters YG60 YG90 YG110 YG135 YG170 YG225 YG350 YG450
Max. Hook Load KN(USton) 600 900 1100 1350(150) 1700(190) 2250(250) 3170(350) 4500(500)
Qty. of Sheaves ~ 3,4 3,4 3,4 4 5 5 5 6
Diameter of Sheaves mm(in) 610(24) 610(24) 610(24) 760(30) 915(36) 915(36) 915(36) 1120(44) 1270(50) 1524(60)
Diameter of Wire Line mm(in) 22(7/8) 22(7/8) 26(1) 26(1)/29(1-1/8) 29(1-1/8) 29(1-1/8) 29(1-1/8)/32(1-1/4) 29(1-1/8)/32(1-1/4) 32(1-1/4) 35(1-3/8)
Major Hook Opening mm(in) 110(4-3/8) 130(5-1/8) 140(5.5) 150(5.9) 200(7.9) 190(7.5) 220(8.7) 220(8.7)
Spring travel mm(in) 115(4-1/5) 120(4-3/4) 150(5-7/8) 170(6.7) 170(6.7) 180(7) 200(7.9) 200(7.9)
Overall Dimension mm 1840x692x456 2005x616x498 2334x640590) 2946X838X647 3091X987X647 3402X960X725 3610X960X775 3714X1190X775 4190X1350X885 4887X1600X810
Weight KG 1200 1250 1780 3126 3426 4594 6200 6600 10860 12530

Traveling block
