GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
chenzhu
Model Number :
GS5011-EX
MOQ :
5 sets
Price :
8＄
Payment Terms :
T/T
Supply Ability :
500pcs/day
Delivery Time :
5days
Application :
Signal isolator
Type :
Analog signal isolator
Series :
GS5000
Mounting Type :
DIN35mm
Description :
Signal isolator
Manufacturing Date Code :
2024
Voltage - Isolation :
8.2vDC
Technology :
magnetic coupling
Voltage - Supply :
20-35V DC
Isolated Power :
2500v
Channel type :
Unidirectional
Number of channels :
2
Description

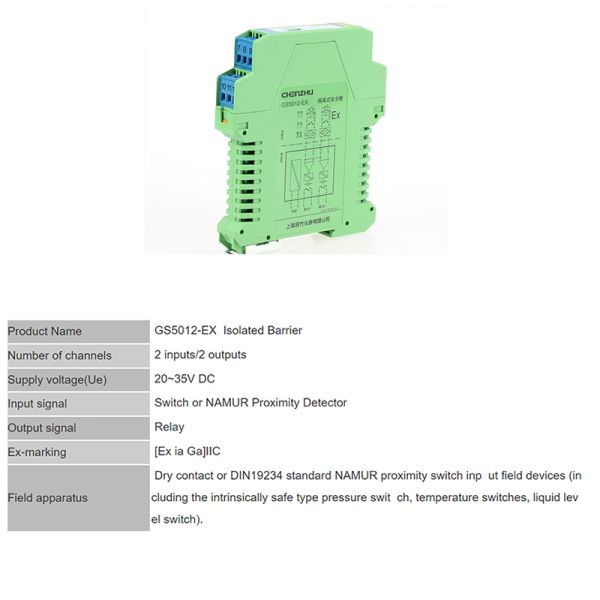

GS5011-EX GS5012-EX Safety Barrier

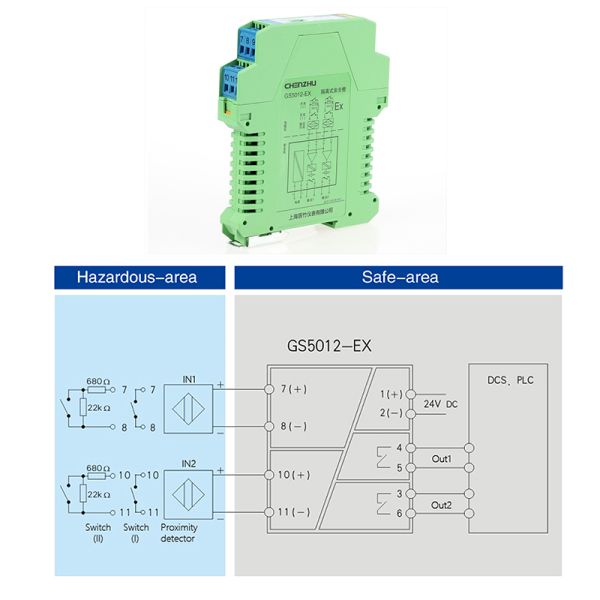

Relay output isolated barrier designed to transfer digital signals (switch or NAMUR proximity detectors) from hazardous areas to safe areas. Particularly suitable for explosion-proof elevators, security doors, and other explosion-proof equipment safety switch signal monitoring and processing. Features independent power supply with three-way isolation between power supply, input, and output.
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
Technical Specifications
Parameter GS5011-EX GS5012-EX GS5111-EX
Number of channels 1 in, 2 out 2 in, 2 out 1 in, 1 out
Response time ≤10ms

Input signal Dry contact; NAMUR type proximity switch

Open-circuit voltage ≤28V ≤28V ≤28V
Distribution voltage Voltage at 20mA: ≥15.5V Voltage at 20mA: ≥15.5V Voltage at 20mA: ≥15.5V
Normal operating current ≤25mA ≤25mA ≤25mA
Output signal 250V AC, 2A or 30V DC, 2A

Current output load resistor RL≤300Ω (550Ω optional) RL≤300Ω (550Ω optional) RL≤300Ω (550Ω optional)
Voltage output load resistor RL 330kΩ or higher RL 330kΩ or higher RL 330kΩ or higher
Supply voltage (Ue) 20-35V DC 20-35V DC 20-35V DC
Power protection Reverse power supply protection Reverse power supply protection Reverse power supply protection
Current consumption ≤75mA (at 24V with 20mA output) ≤75mA (at 24V with 20mA output) ≤75mA (at 24V with 20mA output)
Power supply mode Independent power supply Independent power supply Independent power supply
Power connection method Terminal power supply Terminal power supply Terminal power supply
Material PA PA PA
Protection grade IP20 IP20 IP20
GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on sensor product research, development, design, production, and trade. With over ten years of technology accumulation, we follow the business philosophy of "technology first and service first" to provide customers with complete, mature application solutions. Our expertise spans pharmaceutical, aerospace, chemical, electronics, and other industries.
With extensive experience in foreign trade, we handle all aspects of international business professionally. Our company commitment: "reasonable price, short production time, satisfactory after-sales service." We welcome cooperation with customers for mutual development and benefit. Potential buyers are encouraged to contact us.
Frequently Asked Questions
What's your idea about your offer?
We operate our own factory and offer high quality products at competitive prices.
What's the MOQ?
The minimum order quantity is one piece, with pricing based on quantity - larger orders receive better pricing.
What type of payment do you have available?
We accept TT and L/C for sample orders. Western Union, Moneygram, and Aliexpress payments are also available.
What's the delivery time?
7-10 days after we receive payment.
How to make an order?
Tell us the size and quantity you need, or describe your application. Our technicians will recommend the appropriate size. After payment to our bank account, we will arrange production and ship as soon as possible.
