Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
Specifications
Brand Name :
Bairui
Model Number :
PT100
Place of Origin :
Shaanxi ，China
MOQ :
50
Price :
2~6＄
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15days
Type :
Temperature Sensor
Output :
Resistance
Usage :
Temperature Measurement
Manufacturer Part Number :
PT100/PT1000
Mounting Type :
External attachment
Description

Product Description

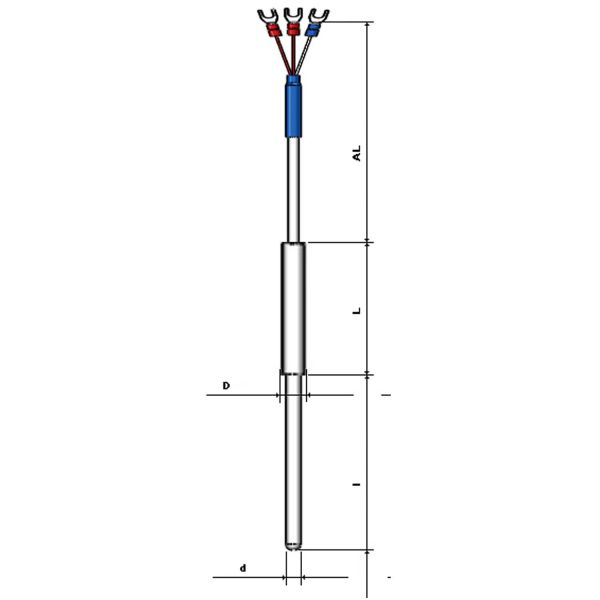

The stepped-tube packaged platinum resistance temperature sensors feature a stepped stainless steel tube (or other specified metals). The platinum resistance element is sealed inside and wired out to protect it. These sensors are widely applied in humid, liquid, dusty, corrosive, extrusive and conventional working environments, representing a common packaging form for temperature sensors.

Specification

Category RTD
Nominal Output PT100/PT1000
Accuracy Class1/3B, A ,B or C per IEC60751
Sheath Material 304 316Stainless Steel
Probe Diameter D Customized 4mm 5mm……
Probe Length L Customized 20mm 30mm 40mm 50mm……
Probe Diameter d Customized 4mm 5mm……
Probe Length l Customized 20mm 30mm 40mm 50mm……
Cable Length 20’ or Customized 1M 2M……
Number Of Wires Two / Three / Four
Process Temperature Range -40~200℃ or Customized
Termination Connection Type Stripped leads
Number Sensing Points one

Customized RTD PT100 PT1000 Probe Temperature Sensor with Stainless Steel Sheath and Wide Temperature Range
