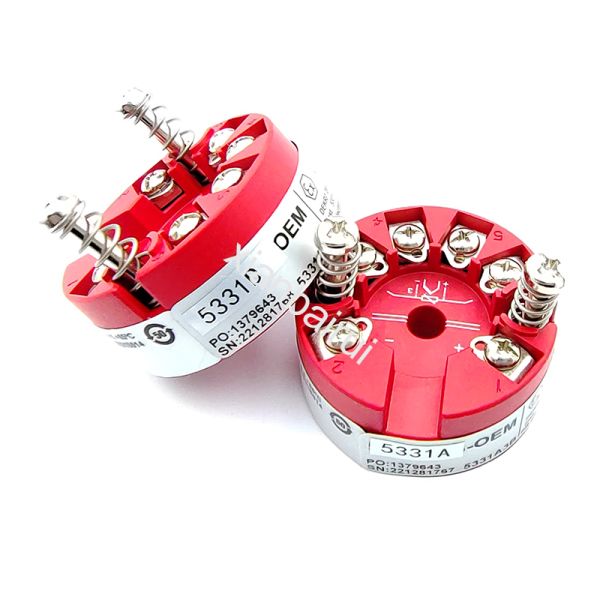

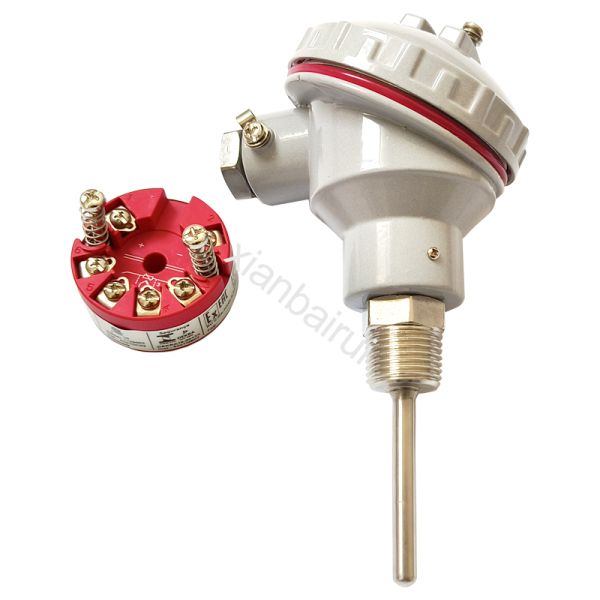

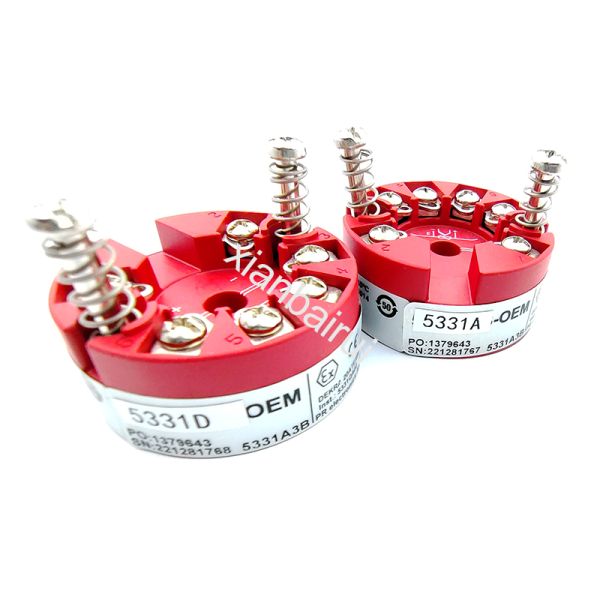

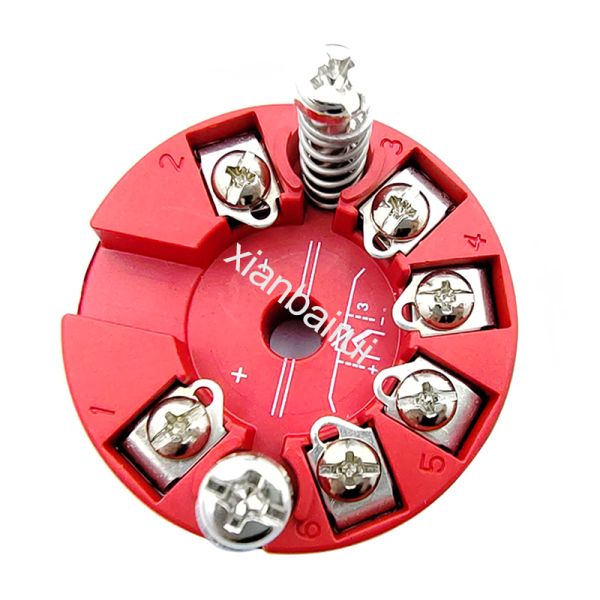

name | Round head temperature transmitter |
Installation mode | Head mount, DIN rail mount |
Model number | 5331 |
place of origin. | Denmark |
brand | PR electronics |
Feature | Temperature/resistance signal conversion |
Input: | |
mV, measuring range/minimum range | - 12... 800 mV / 5 mV |
RTD, measuring range/minimum range | - 200... +850°C / 25°C |
Lin.R, measuring range/minimum range | 0... 5000 Ω / 30 Ω |
Sensor connections, cables | Two lines. - Three lines. - Four lines |
TC type | BEJKLNRSTUW3W5Lr |
Maximum offset | 50% of the selected maximum value |
Cold-end compensation | Internal/external |
mA, signal range/minimum range | 3.5... 23 mA / 16 mA |
Ambient temperature | - 40... +85°C |
Power supply voltage, DC | 7.2... 35 VDC |
Maximum power consumption | 0.8W |
Isolation voltage, test/work | 1500 VAC / 50 V |
Response time | 1... 60 s |
Signal dynamic range, input/output | 20 bit / 16 bit |
precision | < ±0.05% of the measuring range |
Temperature coefficient | < ±0.01% of the range / °C |
NAMUR | NE21, NE43 |
passage | 1 |
Parameter setting mode | Loop Link |
Structural dimension | Ø 44 x 20,2 mm |
Scope of application | Whole industry |
Application industry | Temperature measurement |
