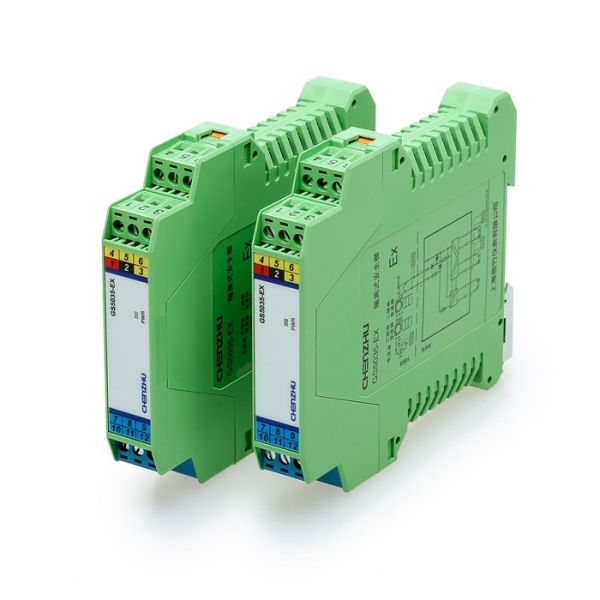

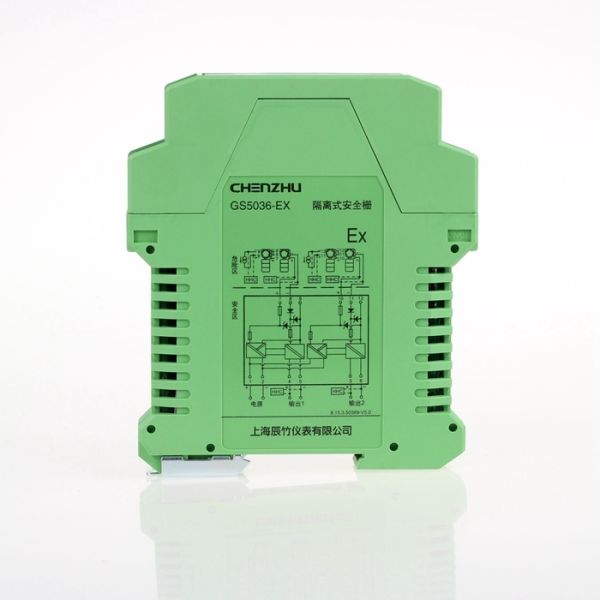

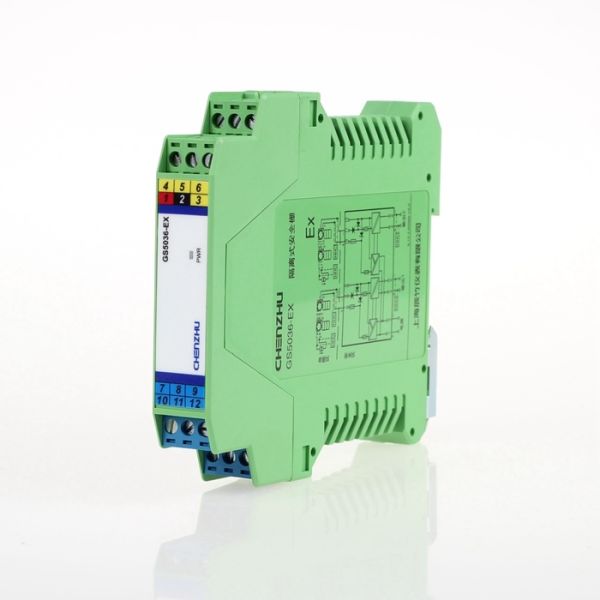

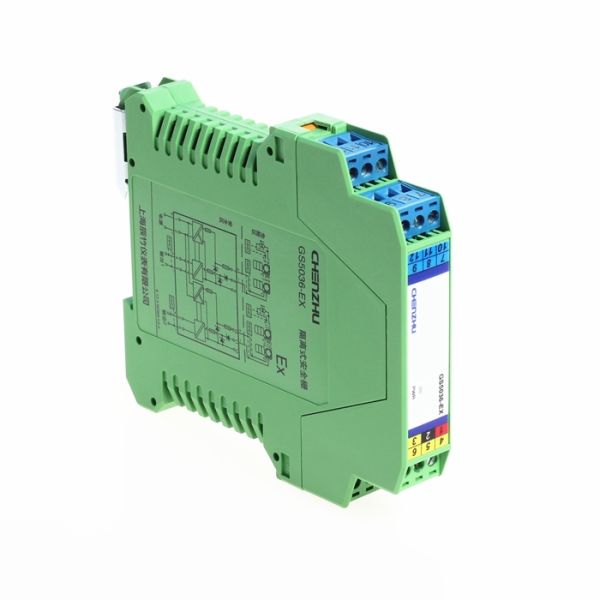

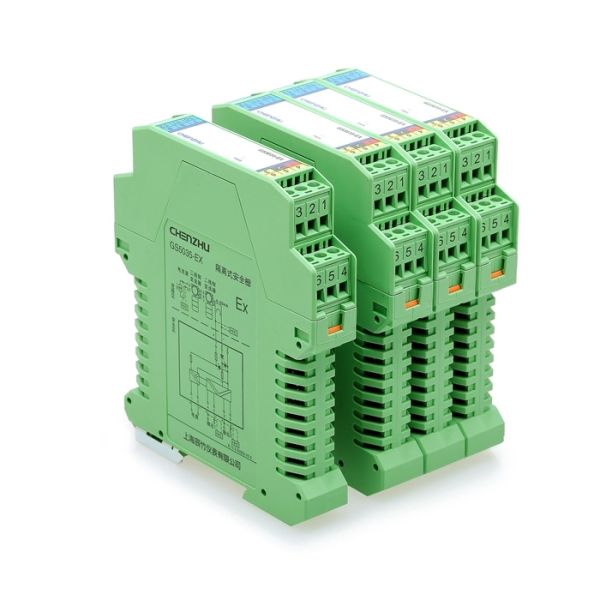

Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
chenzhu
Model Number :
GS5035-EX
MOQ :
5 sets
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5days
Application :
Signal isolator
Type :
Analog signal isolator
Series :
GS5000
Mounting Type :
DIN35mm
Description :
Signal isolator
Manufacturing Date Code :
2024
Technology :
magnetic coupling
Isolated Power :
2500v
Channel type :
Unidirectional
Number of channels :
2
Description
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Product Overview

The analog input isolation barrier provides isolated power supply to the transmitters in the hazardous area, isolating and transmitting the current generated by the transmitters from the hazardous side to the safe side, and supports bidirectional transmission of HART signals. This product requires independent power supply, with three isolations for power supply, input and output.

Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Technical Specifications
Model GS5035-EX GS5036-EX GS5045-EX
Number of channels 1 in, 2 out 2 in, 2 out 1 in, 1 out
Response time 2ms reaches 90% of the final value 2ms reaches 90% of the final value 2ms reaches 90% of the final value
Input signal 0~20mA; 4~20mA; HART digital signal 0~20mA; 4~20mA; HART digital signal 0~20mA; 4~20mA; HART digital signal
Open-circuit voltage ≤28V ≤28V ≤28V
Distribution voltage Voltage at 20mA: ≥15.5V Voltage at 20mA: ≥15.5V Voltage at 20mA: ≥15.5V
Normal operating current ≤25mA ≤25mA ≤25mA
Output signal 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V
Current output load resistor RL≤300Ω(550Ω is optional for users) RL≤300Ω(550Ω is optional for users) RL≤300Ω(550Ω is optional for users)
Voltage output load resistor RL 330 k Ω or higher RL 330 k Ω or higher RL 330 k Ω or higher
Supply voltage (Ue) 20-35V DC 20-35V DC 20-35V DC
Power protection Reverse power supply protection Reverse power supply protection Reverse power supply protection
Current consumption ≤75mA(when powered by 24V and with 20mA output) ≤75mA(when powered by 24V and with 20mA output) ≤75mA(when powered by 24V and with 20mA output)
Power supply mode Independent power supply Independent power supply Independent power supply
Power connection method Terminal power supply Terminal power supply Terminal power supply
Material PA PA PA
Protection grade IP20 IP20 IP20
Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
About Bailui Electric Technology Co., Ltd.

Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on the research, development, design, production, and trade of sensor products. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, providing customers with complete sets of mature application solutions. Our products serve various industries including pharmaceutical, aerospace, chemical, and electronics.

We have extensive experience in foreign trade and dealing with all aspects of international business. The company promises: "reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.

Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Frequently Asked Questions
What's your idea about your offer?

We have our own factory and offer high quality products with proper pricing.

What's the MOQ?

The minimum order quantity is one piece, but our pricing is based on quantity - larger orders receive more competitive pricing.

What type of payment do you have available?

We accept TT and L/C for sample orders. Western Union, Moneygram, and Aliexpress are also available payment methods.

What's the delivery time?

7-10 days after we receive payment.

How to make an order?

Tell us the size and quantity you need, or describe your application requirements. Our technical team will recommend the appropriate specifications. After payment to our bank account, we will arrange production and ship your order as soon as possible.

Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer Taihua Industrial Isolated Signal Transmitter 4-20mA Current Transformer
