Specifications
Mounting Type :
Threaded installation
Description :
ultrasonic sensor
Model Number :
LS-300
Type :
Ultrasonic Sensor
Place of Origin :
Guangdong, China
Brand Name :
BAIRUI
Usage :
Liquid level measurement
Theory :
Vibration occurs at the mechanical resonance frequ
Output :
PNP/NPN
Amplifier Type :
Standard
Voltage - Supply :
24v DC
Detection Distance :
1500mm
Material :
Stainless steel
MOQ :
2 pieces
Price :
Negotiable
Description

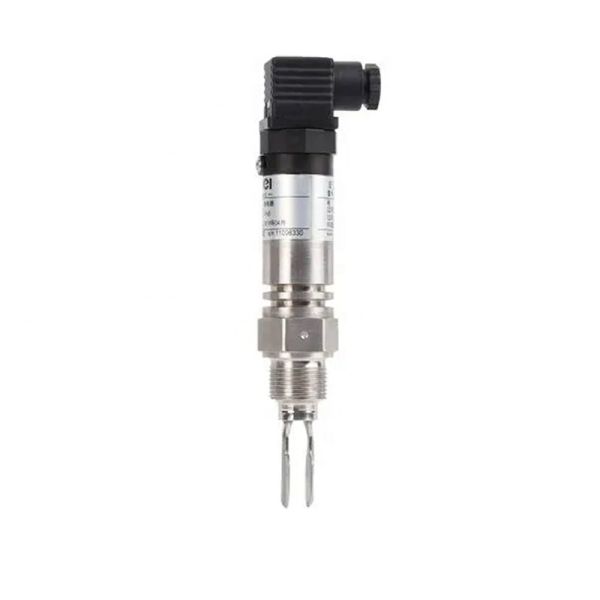

BQT300 High Temperature Tuning Fork Level Sensor
BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch
The LS-300 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.
BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch
Technical Specifications
Power Supply 19…60VDC 19…250VAC 50/60Hz
Switching Time In the medium 2 seconds, Empty: 3 seconds
Environment Temperature -40…+70°C
Shelf Temperature -40…+85°C
Medium Temperature -40…+150°C
Working Pressure -1…+40bar
Medium Type Powder and particle ≤10mm，density>0.1g/cm³
Liquid，Viscosity ≤10000mm²/s, density >0.7g/cm³
Process Connection M20×1.5，G1-1/2"，customization
Electrical Connection M12×P1.0 Connector
Shell Material SS304
Fork Material SS304/SS316
Output Relay, AC250V/4A, DC60V/4A
NPN, 400mA
PNP, 400mA
Power Consumption DC<3W, AC <15W
Packing & Delivery
BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on sensor product research and development, design, production, and trade. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, providing customers with complete mature application solutions. The industries we serve include pharmaceutical, aerospace, chemical, electronics and other sectors. In foreign trade, we have rich experience in dealing with all aspects of international business.
Company Commitment: "Reasonable price, short production time, satisfactory after-sales service." We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.
BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch BQT300 High Temperature Tuning Fork Level Sensor 45mm 100mm Compact Limit Vibration Tuning Fork Level Switch
Frequently Asked Questions
What's your idea about your offer?
We have our own factory and offer high quality products with competitive pricing.
What's the MOQ?
The minimum order quantity is one piece, but our pricing is based on quantity - larger orders receive better pricing.
What type of payment do you accept?
We accept TT and L/C. For sample orders, Western Union, Moneygram and Aliexpress are also available.
What's the delivery time?
7-10 days after we receive payment.
How to make an order?
Tell us the size and quantity you need, or describe where you plan to use the sensor. Our technician will suggest the appropriate size. Then pay to our bank account, and we will arrange production and ship as soon as possible.
