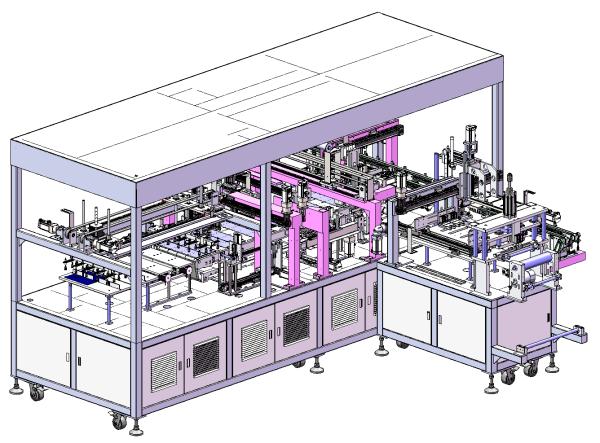

Automated Glass Loading and EVA Laying/Wiring Assembly Integrated Production Line for Solar Panels
Automated Glass Loading and EVA Laying/Wiring Assembly Integrated Production Line for Solar Panels
Specifications
Brand Name :
YNTECH
Model Number :
630
Place of Origin :
CHINA
MOQ :
1
Price :
50000-100000
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15-25Days
Packaging Details :
wooden package
Description

I. Equipment Performance:


1. This equipment utilizes the most advanced high-frequency electromagnetic welding technology and is compatible with all standard monocrystalline and polycrystalline solar cells;
2. Compatible with busbar connection at both ends of the cell string, lead welding, and insulation tape application;
3. Cell string specifications: String width 52–105 mm, string length 100–350 mm, compatible with two or more busbars;
4. Busbar specifications: 2–6 mm;
5. Main busbar and lead-in strip requirements: Compatible with welding of two or more busbars;
6. Busbar specifications: Thickness 0.12–0.3 mm, width 2–6 mm;
7. This equipment includes automatic glass loading, EVA placement, busbar layout, lead wire welding, insulation strip application, power testing, cell string heating and positioning,
and backplate covering with lead wire insertion.
8. Single-string fly-wire function.

Spec String Length(mm) Beat
String Length 100-400 10-13

cell width

 D-Strings 52-105 10-13

S-String 125-210 10-13
Pass rate(Grade A) ＞97%
Cell widht 52mm--210mm
String Gap 1mm-10mm
Power

Rated Power

 6KW
Air Supply 0.5~0.8MPA
Machine Size 3500mm(L)*1300mm(W)*1800mm(H)
