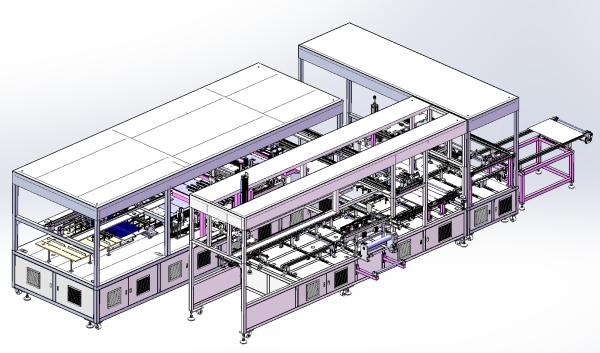

Automated Production Line for Solar Panels
Automated Production Line for Solar Panels
Specifications
Brand Name :
YNTECH
Model Number :
830
Place of Origin :
CHINA
MOQ :
1
Price :
50000-100000
Payment Terms :
L/C
Supply Ability :
50 sets per month
Delivery Time :
15-25Days
Packaging Details :
wooden package
Description

PV Layup & Bussing All-in-One Line

Equipment Specifications:

1. This PV assembly machine uses the latest high-frequency electromagnetic welding, compatible with all standard mono and polycrystalline solar cells.

2. It supports layout and busbar soldering for 1, 2, 3 and 4 cell strings.

3. Available for double-end busbar soldering and lead wire soldering between two cell strings.

4. Cell string dimensions: width 78–210 mm, length 200–700 mm.

5. For main busbar ribbons: it fits welding with two or more ribbons.

6. Busbar specs: thickness 0.12–0.3 mm, width 2–6 mm.

7. This all-in-one unit features full processes: automatic glass loading, EVA laying, layup & bus soldering, lead wire welding, insulation strip attaching, power testing, cell string heating & positioning, backsheet mounting and lead threading.

Equipment Data:

Spec String L(mm) Cycle time
String L(mm) 200-700 10-13s
Cell width 78-210 10-13s
Pass rate >97%
Cell width 52mm--210mm
Cell gap 1mm-10mm
Power Rated power 15KW
Air supply 0.5~0.8MPA
Machine Size 8500mm(L)* 1700mm(W)*2000mm(H)
