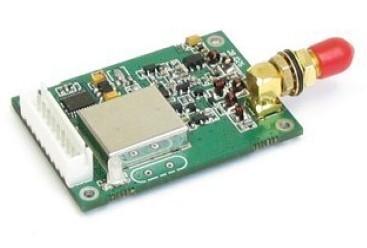

Wireless RF Transceiver Module Power module TTL/RS232/RS485, 433MHz/868MHz/915MHz HR-1027
Wireless RF Transceiver Module Power module TTL/RS232/RS485, 433MHz/868MHz/915MHz HR-1027
Specifications
Place of Origin :
China
Brand Name :
HUARAY
Certification :
CE, FCC, ROHS
Model Number :
HR-1027
Price :
negotiable
Packaging Details :
Inner Staticproof Bag, External Cardboard Box
Delivery Time :
two working days
Payment Terms :
T/T, L/C, Papal, Moneygram, Western Union
Supply Ability :
100,000PCS/month
MOQ :
2pcs
Description

APPLICATION:

* AMR Automatic Meter Reading

* Wireless alarm and security systems

* Building automation, security, wireless monitoring and control of room equipment, Access Control System;

* Wireless data transmission, automatic data collection system;

* Low power telemetry

* 433 / 868 and 915 MHz ISM/SRD band systems

* Data radio can be used for Wireless conference voting system;

* Mapping;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Observation and predication of oil well and hydrological information;

* Wireless RS232/RS485 conversion/connector;

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Technical specification of HR-1027:

PERFORMANCE

Power Output:

1W <customized>

RF Line-of-sight Range:

3km@9600bps, 4km@1200bps

RF Effective Rate:

1200~38400bps optional, 57600bps customized

Receiver Sensitivity:

-123dBm@1200bps, -118dBm@9600bps

NETWORKING

Networking Topology:

Point-to-point, point-to-multipoint

POWER

Supply Voltage:

7.5V or 9VDC(customized according requirement)

Transmitting Current:

<300mA

Receiving Current:

<25mA (TTL connect)

Sleeping Current:

<20µA

GENERAL

Frequency Band:

433MHz(Default), 450MHz~915MHz(customized)

Communication Mode:

Half-duplex

Channel:

8(Default), 16/32(customized)

Interface:

RS-232/RS-485/USB/TTL optional

PHYSICAL PROPERTIES

Size:

53mm*38mm*10mm (without antenna port)

Weight:

22g

Antenna Impedance:

50Ω SMA (multiple antenna options available)

Operating Temperature:

-35~+75 C

Frequency Stability;

±2.5ppm
