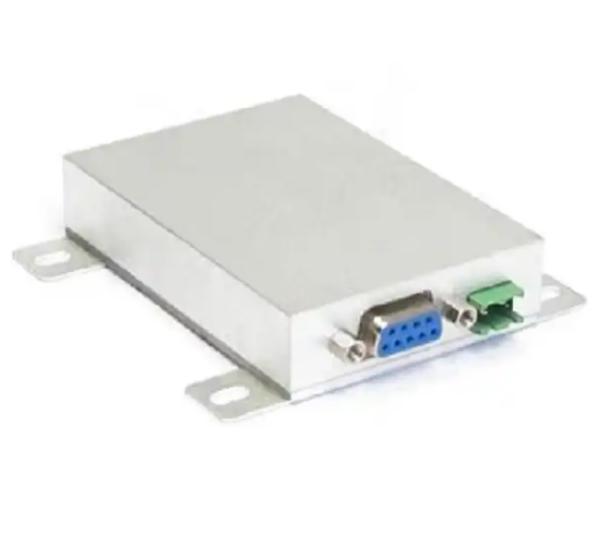

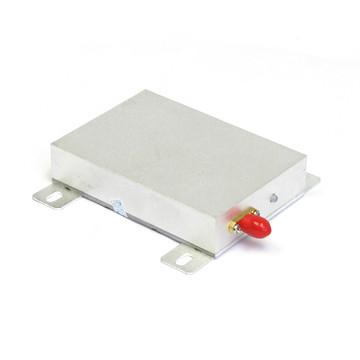

10W, 25W power Radio Modem, Radio Power Module, Wireless RF Data Transceiver Module HR-1030
10W, 25W power Radio Modem, Radio Power Module, Wireless RF Data Transceiver Module HR-1030
10W, 25W power Radio Modem, Radio Power Module, Wireless RF Data Transceiver Module HR-1030
10W, 25W power Radio Modem, Radio Power Module, Wireless RF Data Transceiver Module HR-1030
Specifications
Place of Origin :
China
Brand Name :
HUARAY
Certification :
CE, FCC, ROHS
Model Number :
HR-1030
Price :
negotiable
Packaging Details :
Inner Staticproof Bag, External Cardboard Box
Delivery Time :
two working days
Payment Terms :
T/T, L/C, Papal, Moneygram, Western Union
Supply Ability :
80,000PCS/month
MOQ :
2pcs
Description

APPLICATION:

* AMR Automatic Meter Reading

* Wireless alarm and security systems

* Building automation, security, wireless monitoring and control of room equipment, Access Control System;

* Wireless data transmission, automatic data collection system;

* Low power telemetry

* 433 / 868 and 915 MHz ISM/SRD band systems

* Data radio can be used for Wireless conference voting system;

* Mapping;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Data communication used for railway, oil field, dock and army.

* LED display in thruway and public places

* Wireless RS232/RS485 conversion/connector;

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Technical specification of HR-1030:

PERFORMANCE

Power Output:

5W or 10W (customized)

RF Line-of-sight Range:

8Km@9600bps, 12Km@1200bps

RF Effective Rate:

1200~19200bps optional

Receiver Sensitivity:

-123dBm@1200bps, -118dBm@9600bps

NETWORKING

Networking Topology:

Point-to-point, point-to-multipoint

POWER

Supply Voltage:

12V DC(customized according requirement)

Transmitting Current:

<1.5A

Receiving Current:

<30mA (TTL connect)

Sleeping Current:

<1mA

GENERAL

Frequency Band:

400MHz/420MHz/450MHz

Communication Mode:

Half-duplex

Channel:

8(Default), 16/32(customized)

Interface:

RS-232/RS-485/USB/TTL optional

PHYSICAL PROPERTIES

Size:

85mm*58mm*16mm (without antenna port)

Antenna Impedance:

50Ω SMA (multiple antenna options available)

Operating Temperature:

-35~+75 C(industry)

Frequency Stability;

±2.5ppm

Interface definition:

Pin No.

Signal Name

Function

Level

Connection with terminal

Remarks

1

GND

Grounding of power supply

Ground

2

A(TXD)

A of RS-485(TxD of RS-232)

3

B (RXD)

B of RS-485(RxD of RS-232)

4

NC

5

DGND

Signal

6

RXD/TTL

Received data input of the transceiver

TTL

7

TXD/TTL

Transmitted data out of the transceiver)

TTL

8

SLEEP

Sleep control (input)

TTL

Sleep signal

low level sleep

9

TEST

Inside control(input)
