DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
DX51D DX52D DX53D 0.12MM Hot Rolled Coil
Specifications
Brand Name :
Huaye
Certification :
ISO14000
Place of Origin :
China
MOQ :
25 MT
Price :
$550-600/mt
Payment Terms :
TT or LC
Supply Ability :
100000
Delivery Time :
30 days
Packaging Details :
standard export packing
Commodity :
Hot Dipped Galvanized Steel Coil
Steel Grade :
SGCC, SGCD3, SGCE, SGCH(Full hard), DX51D, DX53D, Q195, SGC490, ASTM A653
Thickness :
0.15-3.8mm
Width :
800 -1000/1220/1250/1500mm
Zinc coating :
40g-275g
Spangle :
regular spangle, minimized spangle, big spangle and zero spangle
Coil weight :
3-8 tons for galvalume steel coil
Surface treatment :
Galvanized
Application :
Construction
Description

PPGI/HDG/GI/SECC DX51 Zinc Coated Cold Rolled/Hot Dipped Galvanized Steel Coil


Quick Detial:

Thick 0.12 ~6.0 mm
Width 600-1500 mm
Length As Require
Zinc Coating 30~275G/M2
Coil ID 508 / 610MM
Coil Weight 3-5 Tons
Standard ASTM-A653; JIS G3302; EN10147;etc
Grade SGCC;SGCH; DX51D;DX52D; DX53D
Payment Terms T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Regular Order 25 tons or one container, for less quantity, to contact with us for details
Hardness Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface Structure Regular spangle,Minimum spangle, Zero spangle, Big spangle
Surface Treatment Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass
Delivery Time 10-30 days after receipt of advance payment.
Package

3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside steel sheet

to be covered by steel strips with lock, with inner coil sleeve .

Monthly Output 10000 tons
Remarks Insurance is all risks and accept the third party test
Loading Port Tianjin/Qingdao/Shanghai Port
Exhibition

Algeria Exhibition; Myanmar Building Material Exhibition; Big 5 Exhibition;Vietnam Exhibition;

Kazakhstan Exhibition
Application

Construction and building: roofing; ventilating duct; handrail; partition panel,etc.;Further processing: coating base plate;

Electric appliance: refrigerator; washing machine; recorder; microwave, etc.

Contact: sales@wxhy.com.cn

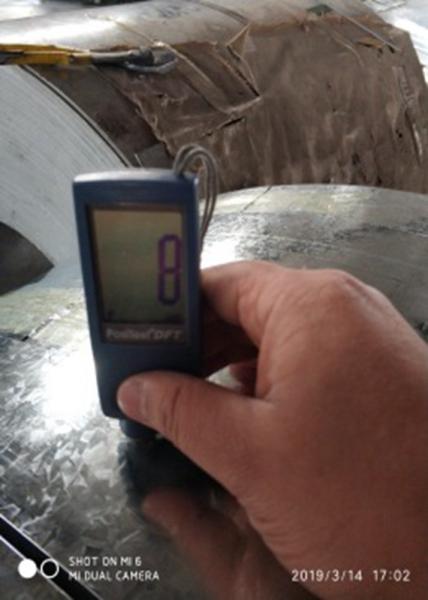

Photos for hot dipped galvanized coil

DX51D DX52D DX53D 0.12MM Hot Rolled Coil

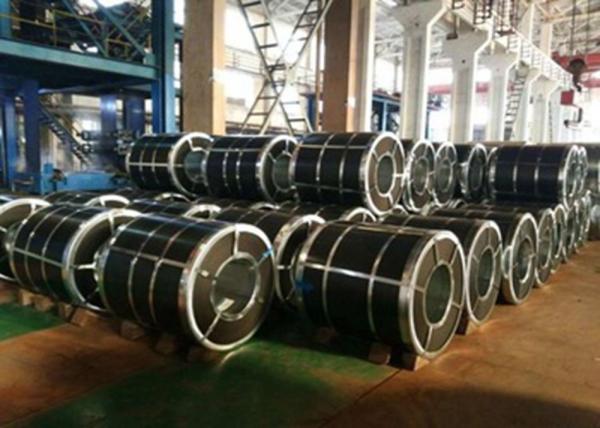

Photos for hot dip galvanized steel coil

DX51D DX52D DX53D 0.12MM Hot Rolled Coil

Applications:

1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.

2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.

3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.

4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine.

5. Furniture: lampshade, counter, signboard and medical facility etc.


Mill Test Certificate:(JIS G 3302 SGCH)

　 　 　 　 　 Physical Spec 　
No. Heat No. Size(mm) Quantity Chemical Composition(%) Final
　 　 　 MT C Si Mn P S Tensile strength Enlongation Yield Strength(N/mm2) 　
　 　 　 　 (Mpa) (%) 　
1 121208102 0.14MM X 750MM X COIL 　 0.05 0.02 0.33 0.014 0.015 650 15 550 A
2 121208208 0.15MM X 750MM X COIL 　 0.06 0.03 0.32 0.015 0.019 660 17 558 A
3 121208214 0.20MM X 750MM X COIL 　 0.06 0.03 0.34 0.020 0.021 655 16 560 A
4 121208216 0.30MM X 750MM X COIL 　 0.08 0.02 0.40 0.016 0.017 660 17 568 A

Competitive Advantage:

DX51D DX52D DX53D 0.12MM Hot Rolled Coil

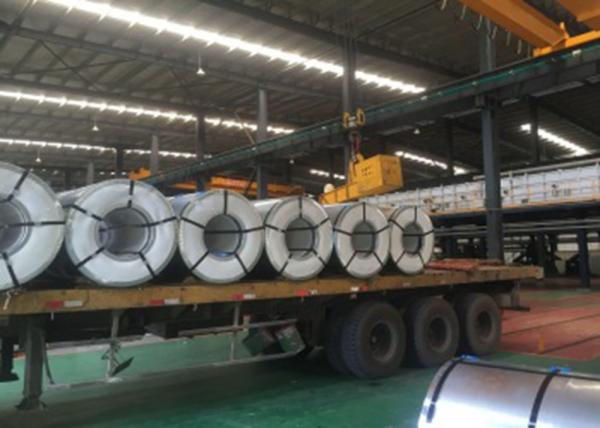

Packing pictures:

DX51D DX52D DX53D 0.12MM Hot Rolled Coil
