Specifications
Operation System :
ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO 14443A/B
Material :
ABS
Support Card :
MIFARE, smart cards
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply :
Bus-powered USB
Dimensions(L*W*H) :
149 * 109 * 50 mm (Without Camera)
Supported Font :
OCR-B
MRZ/OCR reading :
ICAO 9303 specification Parts 1-4
Contact smart card reading :
ISO/IEC 7816 Part 1 to 4
Contactless/RFID/NFC reading :
ISO/IEC 14443, ISO/IEC 18092
Supported Card Size :
ID-1
Support :
Fingerprint collection
Camera :
Real-time photo or video recording
Description
Product Description

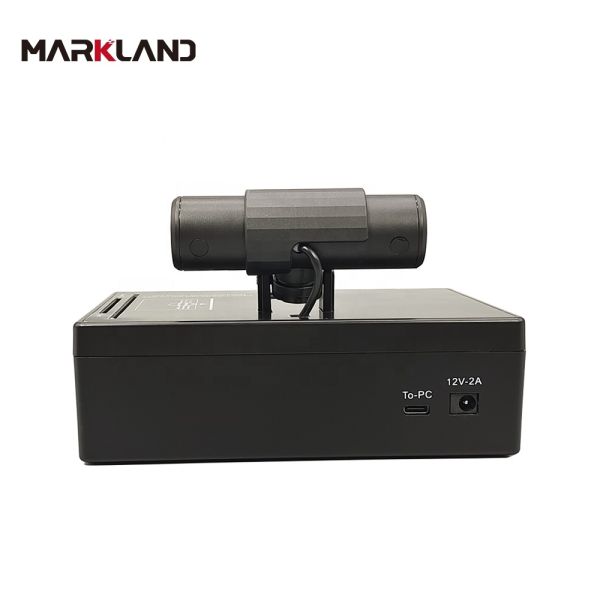

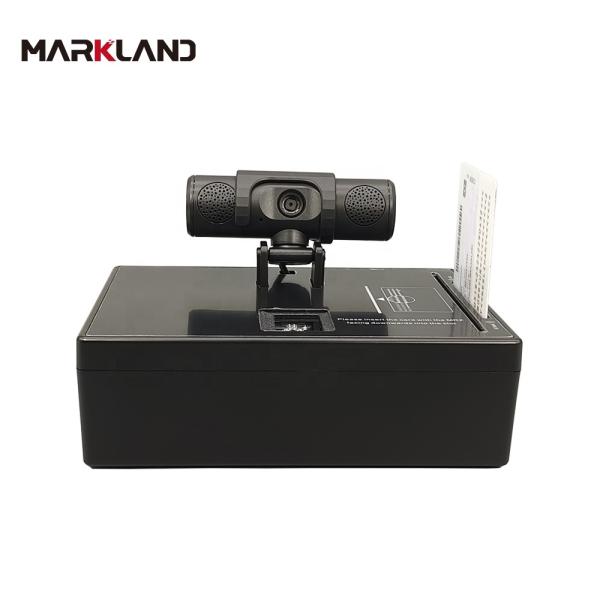

M ID-BOX ID Card Reader

Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint, Integrate these five functions into one device.


M ID-BOX ID card reader is a multi-function document reader for ID-1 identity document check, It provides a perfect solution for ICAO9303 standard documents of ID-1 size, such as eID, Resident Permit, Driving Licence, visa and other documents, which make it can be applied to variety of industries. It scans the MRZ on the card, and then extracts and prints digital data from the contactless NFC chip through the RFID function, including name, data of birth, gender, document number, date of expiry, the holder's image etc. In addition, M ID-BOX also integrates a fingerprint scanner and a camera, which can collect fingerprints and photos of holders on the spot in real time, which provides an ideal device choice for multi-factor identification. M ID-BOX ID card readers are both portable and desktop devices 'equipped' with a Software Development Kit, so that they can be integrated into computer systems - whether existing or planned. The industrial standard interfaces of our devices can be integrated into any IT system, the most importantly is that we can provide the customized service as per the clients requirement.

Read chip information from Documents in the following formats:

1. Printed with MRZ 2. Have contactless/NFC chip
M ID-BOX V2.0 E-ID Card Reader for ICAO 9303 ID-1 Document Check Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint

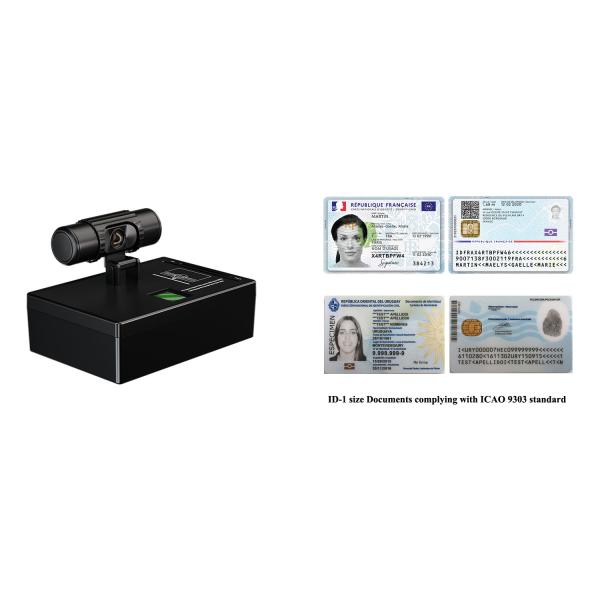

Supported Documents

M ID-BOX V2.0 E-ID Card Reader for ICAO 9303 ID-1 Document Check Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint

Reference Example

Keywords:

• Innovative and convenient multi-function authentication equipment • Read MRZ from ICAO 9303 compliant documents of ID-1 size (National IDs, Resident Permits, etc) • Single Action - MRZ & RFID chip reading are carried out simultaneously • One ISO 7816–compliant Contact Smart Card Reader • Support ISO 14443 Type A & B contactless ICs at 13.56MHz using a PC/SC interface • Support high-quality fingerprint collection and verification • Support high-definition real-time photography and video recording • Support customized shell, color, model, packaging, etc
M ID-BOX V2.0 E-ID Card Reader for ICAO 9303 ID-1 Document Check Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint
Product Range:
Model/Function
M ID-BOX-1
M ID-BOX
MRZ Scanner
√
√
Contact Smart Card Reader
√
√
Contactless/RFID/NFC Reader
√
√
Fingerprint Scanner
√
√
Camera
XX
√

Available Model Number:

M ID-BOX (MRZ+Contact+Contactless/RFID+Camera+Fingerprint) M ID-BOX-1 (MRZ+Contact+Contactless/RFID+Camera)
Specifications:
Multi-purpose ID Card Reader
M ID-BOX
Parameter
Details
MRZ reading
Supported Font:
OCR-B
Supported Stardards:
• ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4
Supported Documents:
• 3 lines MRZ
- ID1: eID, Resident Permit...
Card Size
ID-1 card
Contact Smart Card reading
Supported Standards:
ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size:
ID-1
Smart Card Interface Speed:
• Up to 600 kbps (depending on card)
• TA1=97
Communication:
Compliant with CCID and PC/SC standards
Contactless/RFID/NFC reading
Supported Standards:
• ISO/IEC 14443 A&B Part 1 - 4,T=CL;
• ISO/IEC 18092
• ICAO DOC 9303
Supported Card ICs:
MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate:
106/212/424/848 kbits/s, depending on card IC
Communication:
Compliant with CCID and PC/SC standards
Fingerprint Sensor
Image Resolution
500 DPI
Image Size
300 * 400 pixels
Effective Sensing Area
15.24 * 20.32 mm
Sensor type
Optical
Camera
Pixels
5 Mega
Max. Resolution
2592*1944
Image Sensor
CMOS
General
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply:
Powered from universal input external power supply:
External 12VDC 2.5A
Connector:
1.5m USB cable with USB A connector
Dimensions(L*W*H):
149 * 109 * 50 mm (Without Camera)
Weight:
300 g ± 5%
Status Indicator:
LEDs
Body:
Black, ABS
Temperature:
• In operation: 0°C to 50°C
• Storage: -25°C to 85°C
Humidity:
0-95% non-condensing
Host operating systems:
Windows, Linux, Android
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service. We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM：

Support customer customization and provide personalized smart card solutions
