Specifications
Operation System :
ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO 14443A/B
Material :
ABS
Support Card :
MIFARE, smart cards
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply :
Bus-powered USB
Dimensions(L*W*H) :
181 * 106 * 99 mm (With Camera)
Supported Font :
OCR-B
MRZ/OCR reading :
ICAO 9303 specification Parts 1-4
Contact smart card reading :
ISO/IEC 7816 Part 1 to 4
Contactless/RFID/NFC reading :
ISO/IEC 14443, ISO/IEC 18092
Supported Card Size :
ID-1
Support :
Fingerprint collection
Camera :
Real-time photo or video recording
Description
Product Description

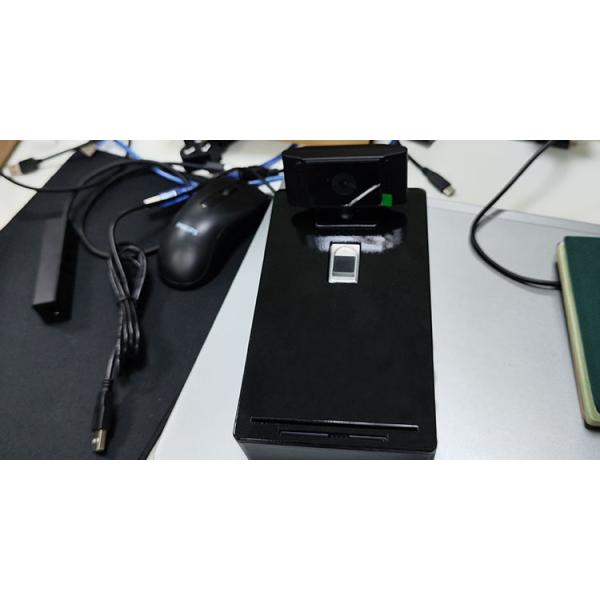

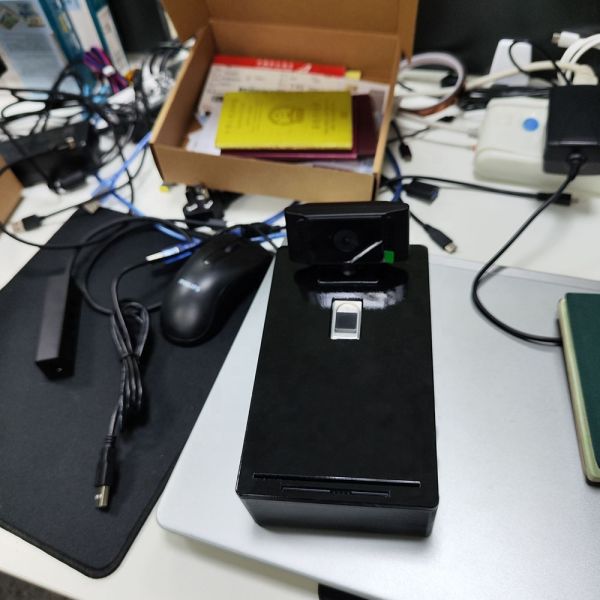

M ID-BOX ID Card Reader

Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint, Integrate these five functions into one device.


M ID-BOX ID card reader is a multi-function document reader for ID-1 identity document check, It provides a perfect solution for ICAO9303 standard documents of ID-1 size, such as eID, Resident Permit, Driving Licence, visa and other documents, which make it can be applied to variety of industries. It scans the MRZ on the card, and then extracts and prints digital data from the contactless NFC chip through the RFID function, including name, data of birth, gender, document number, date of expiry, the holder's image etc. In addition, M ID-BOX also integrates a fingerprint scanner and a camera, which can collect fingerprints and photos of holders on the spot in real time, which provides an ideal device choice for multi-factor identification. M ID-BOX ID card readers are both portable and desktop devices 'equipped' with a Software Development Kit, so that they can be integrated into computer systems - whether existing or planned. The industrial standard interfaces of our devices can be integrated into any IT system, the most importantly is that we can provide the customized service as per the clients requirement.

Read chip information from Documents in the following formats:

1. Printed with MRZ 2. Have contactless/NFC chip
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

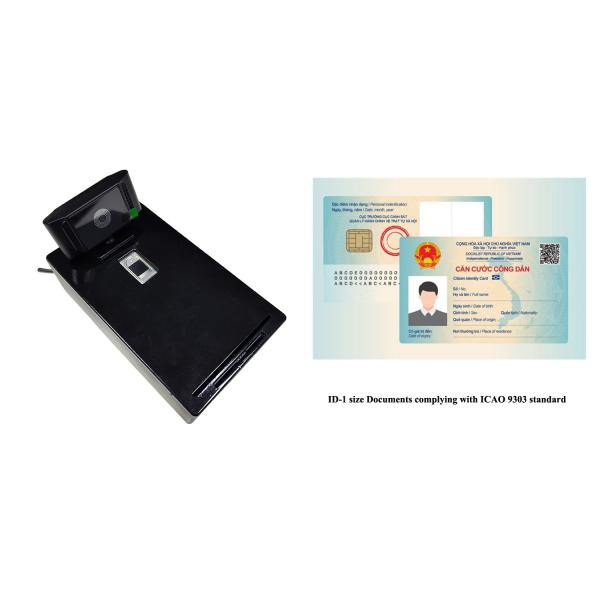

Supported Documents

M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

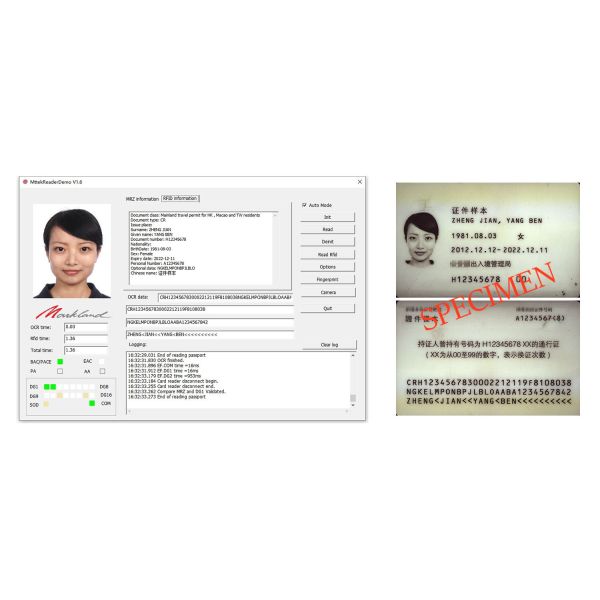

Reference Example

Keywords:

• Innovative and convenient multi-function authentication equipment • Read MRZ from ICAO 9303 compliant documents of ID-1 size (National IDs, Resident Permits, etc) • Single Action - MRZ & RFID chip reading are carried out simultaneously • One ISO 7816–compliant Contact Smart Card Reader • Support ISO 14443 Type A & B contactless ICs at 13.56MHz using a PC/SC interface • Support high-quality fingerprint collection and verification • Support high-definition real-time photography and video recording • Support customized shell, color, model, packaging, etc
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD
Product Range:
Model/Function
M ID-BOX-1
M ID-BOX
MRZ Scanner
√
√
Contact Smart Card Reader
√
√
Contactless/RFID/NFC Reader
√
√
Fingerprint Scanner
√
√
Camera
XX
√

Available Model Number:

M ID-BOX (MRZ+Contact+Contactless/RFID+Camera+Fingerprint) M ID-BOX-1 (MRZ+Contact+Contactless/RFID+Camera)
Specifications:
Multi-purpose ID Card Reader
M ID-BOX
Parameter
Details
MRZ reading
Supported Font:
OCR-B
Supported Stardards:
• ICAO 9303 specification Parts 1-4;
• ISO 18013 Driving Licence
Supported Documents:
• 3 lines MRZ
- ID1: eID, Resident Permit...
• 2 lines MRZ
- ID3: Passport, Visa...
- ID2: ID Card...
• 1 line MRZ
- ID1: Driving Licence...
Card Size
ID-1 card
Contact Smart Card reading
Supported Standards:
ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size:
ID-1
Smart Card Interface Speed:
• Up to 600 kbps (depending on card)
• TA1=97
Communication:
Compliant with CCID and PC/SC standards
Contactless/RFID/NFC reading
Supported Standards:
ISO/IEC 14443, ISO/IEC 18092
Supported Card ICs:
MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate:
106/212/424/848 kbits/s, depending on card IC
Communication:
Compliant with CCID and PC/SC standards
Fingerprint Sensor
Image Resolution
508 DPI
Image Size
192 * 192 pixels
Effective Sensing Area
9.6 * 9.6 mm
Sensor type
Capacitive
Camera
Pixels
5 Mega
Max. Resolution
2592*1944
Image Sensor
CMOS
General
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply:
Bus-powered USB
Connector:
1.5m USB cable with USB A connector
Dimensions(L*W*H):
181 * 106 * 99 mm (With Camera)
Weight:
300 g ± 5%
Status Indicator:
LEDs
Body:
Black, ABS
Temperature:
• In operation: 0°C to 50°C
• Storage: -25°C to 85°C
Humidity:
0-95% non-condensing
Host operating systems:
Windows, Linux, Android
Company Profile
MARKLAND was founded with its headquarters established in Hong Kong.
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD
Main Business:The company specializes in:



• e-Passport reader and scanner
• ID card identification devices
• Smart card read/write devices
• RFID/NFC applications

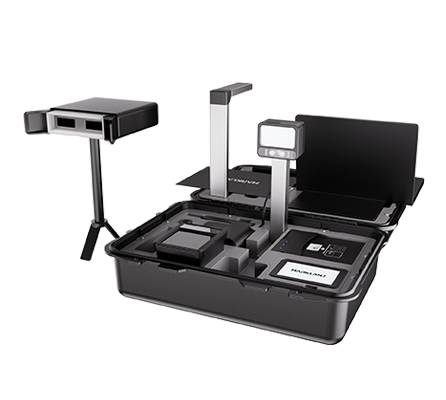

• Physical security devices • Biometric devices • Biometric Registration Kits


M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

Experience:

The core team has over 20 years of experience in the industry.

Strategy:

Hong Kong is utilized as a strategic hub to integrate global scientific and technological advancements, innovative application concepts, and localized optimizations.

Goal:

Aims to provide international products and services that incorporate the latest global innovations.

Innovation and Development:

• Independent research and development capabilities. • Holds 1 invention patent, 25 utility model patents, and 11 software copyrights.
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

Applications:

Involved in sectors like e-Government, e-Police, e-Tax, passenger transportation,identification management, information security, Elections, national ID card registration/verification, card issuance, census, refugee registration, KYC, IOT etc.
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

Commitment:

Committed to ongoing scientific research and innovation.

Collaboration:

Actively seeks cooperation with industry customers to create a better future.

Core Values：

Innovation in design and product creation Flexibility in business and partnership Adaptation in a fast changing global market
M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD
