Specifications
Operation System :
Linux, ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m, 3-5cm
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO 14443A/B
Material :
ABS
Support Card :
MIFARE, smart cards
Host Interface: :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector: :
USB Type A
Contact card Supported Standard: :
ISO7816 Part 1 to 4
Contact Card Interface Speed: :
Up to 600 kbps (depending on card)
Contactless Supported Standard: :
ISO14443 & ISO18092
Contactless Transfer Rate: :
106, 212, 424, or 848 kpbs, depending on card IC
Card Size: :
ID-1 (full-size)
Secure Access Modules (SAM): :
2
Driver: :
PC/SC
Support Systems: :
Win2000+/Linux/MacOS/Android
Description
Product Description

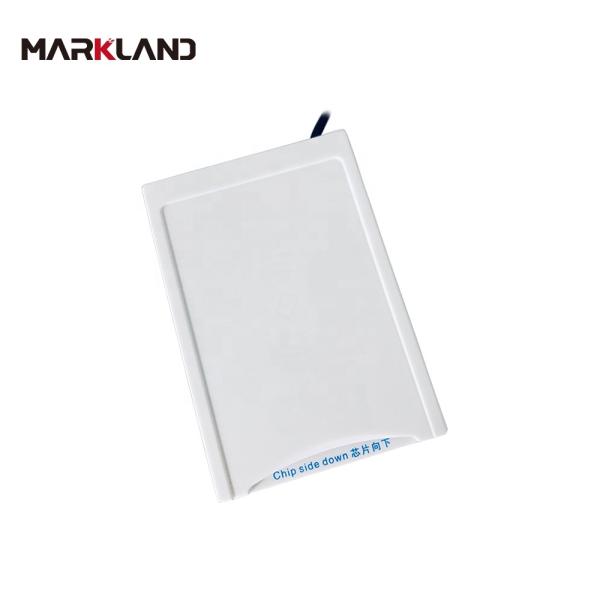

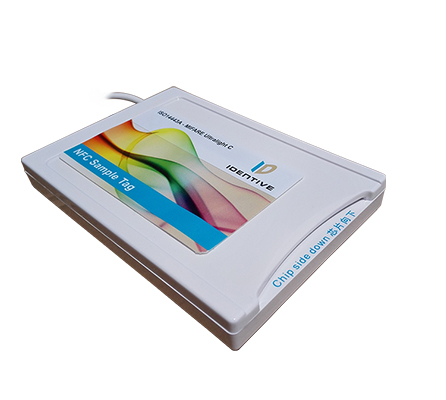

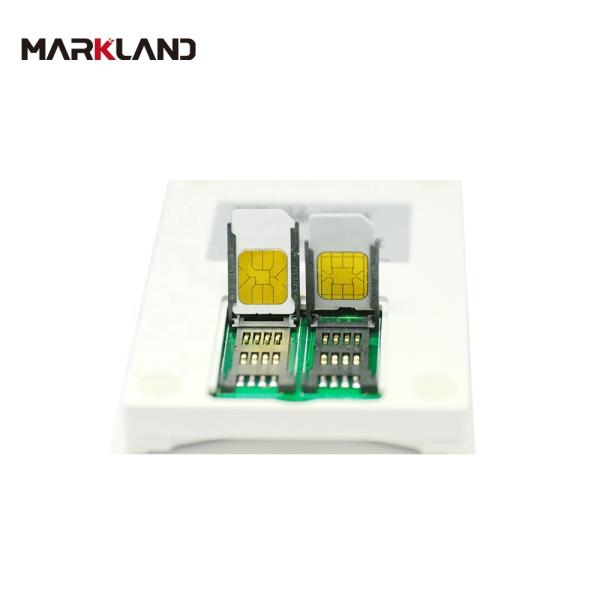

MCR6000 Dual Interface Smart Card Reader with 2 SAM

MCR6000 Dual Interface IC Chip NFC Felica Smart Card Reader Writer with 2 SAM - ISO7816 & ISO14443 & ISO18092

• USER CONVENIENCE
Modern housing design optimized for easy and ergonomic operation even in limited space environments
• CONVERGENT
Prominent 2SAM and Dual interface and NFC technologies for use with mixed credential populations
• INTEROPERABLE
Supports major card ICs standards and technologies in just one device
• FAST
Transaction time optimized with support of 848 kbps in ISO/IEC 14443 and 600 kbps in ISO/IEC 7816 for maximum end‐user acceptance

MCR6000 is the ideal combination of 2SAM cards, contact, contactless, and NFC technologies in just one single device.Supporting ISO/IEC 7816 contact cards, 13.56 MHz contactless technologies, and ISO/IEC18092 NFC technologies, this PC‐linked dual interface reader features end‐user environments where virtually all kinds of credentials are being used. It's PC/SC compliance for both contact and contactless interfaces. It makes use of high‐speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. MCR6000 has a built‐in 2SAM slot for added security in both contact and contactless applications. It represents the perfect mix between modern stylish design and the ergonomic use of any credential form factor. The enduser experiences convenience、transaction‐time efficiency、security、 flexibility, for use applications such as Network Security、Banking & Payment、DCEP & e‐Purse、CRM & print management、 Transportation management、enterprise OA system、e‐Government、online tax declarations、PKI security secret key、online games、automatic control、IoT...
Specification
PARAMETER
MCR6000 Dual Interface Smart Card Reader with 2 SAM
Host Interface
USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication Speed
12 Mbps (USB 2.0 full speed)
Contact card Supported Standards（Suitable for SAM card）
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant up to 5 MHz; Operates up to 12 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-1; SIM Size (SAM)
Smart Contact Type
Support 6pin for SAM and 8pin for Smart card ( with Card detection switch )
Contactless Supported Standards
Contactless Supported Standards

• ISO/IEC 14443A & ISO/IEC 14443B
• ISO/IEC 18092
Protocols
T=CL
Supported Card Chips
• Lascom Cards
• MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k) FeliCa™, Calypso, CD21,
• NFC Forum Tag types 1/2/3/4, Topz512, NTAG424 DNA, NTAG413 DNA
• Type A & B CPU card
Data Transfer Rate
• Up to 10mm for Lascom Cards
• Up to 70mm for Mifare Cards & NFC Tags (depending on card chip type and card antenna size)
• Up to 40mm Type A & B CPU card (depending on card chip type and card antenna size)
Antenna
Integrated
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/ 8.1/10 (32 and 64 Bit)
• Windows® Server 2003/2008/2012
• MacOS 10.10.x,10.11.x, 10.12.x
• Linux 2.6.x (32 and 64bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

<220mA, excluding smart card;<400mA, with smart card;<600μA in Standby Mode
Dimensions

113 x 78 x 14mm
Weight

136g ± 5%
Operating Temperature Range

‐10° to 70°C
Storage Temperature Range

‐25° to 85 C
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

2x LED (Green and Red)
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.
