Specifications
Operation System :
Linux, ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO14443A
Material :
ABS
Support Card :
MIFARE
Host Interface: :
USB HID
USB Connector: :
USB Type A
Card Size: :
ID-1 (full-size)
Data Output: :
UID only (Hex and ENTER delimiter)
Plug and Play :
YES
Support Systems: :
Win2000+/Linux/MacOS/Android
Description
Product Description

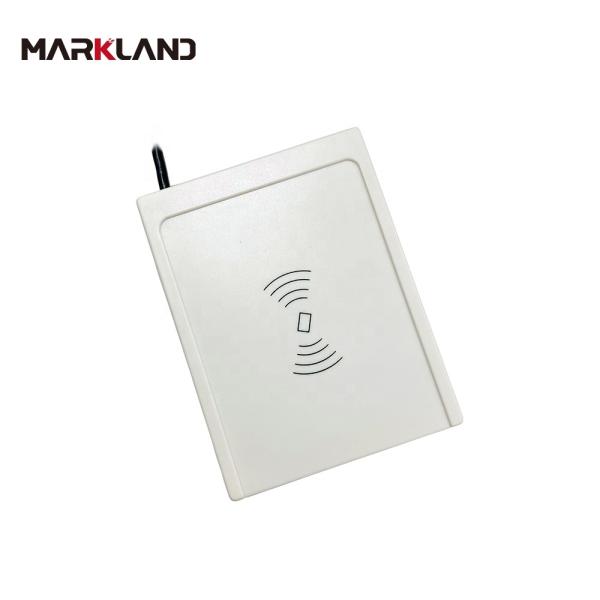

MHR0110P-UID Contactless Smart Card UID Reader

MHR0110P-UID NFC Card Reader Output the Unique Identifier Number (UID) of Any ISO14443


• USB 2.0 Full Speed Interface
• USB HID Keyboard Class
• Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
• Read/write speed of up to 848 kbps
• Built-in anti-collision feature (only one tag is accessed at any time)

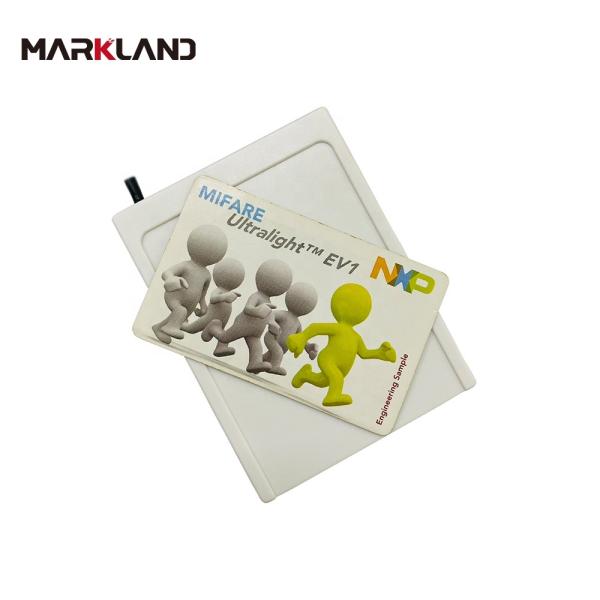

MHR0110P-UID is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card. When presented with a contactless card (such as a MIFARE card), the MHR0110P-UID retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. MHR0110P-UID also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously. Because MHR0110P-UID is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.
Specification
PARAMETER
MHR0110P-UID Contactless Smart Card UID Reader
Host Interface
USB HID
Contactless Supported Standards

ISO/IEC 14443A & ISO/IEC 14443B
Protocols
T=CL
Supported Card Chips
MIFARE Classic EV1, MIFARE Classic, MIFARE Mini, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE DESFire Light, MIFARE Plus S,
MIFARE Ultralight, MIFARE Ultralight C, MIFARE Ultralight EV1, NTAG2xx, NTAG4xx, EM4830, HID iCLASS ( UID only )
Operating Modes
• USB keyboard emulation (Automatically output the card number at the cursor)
• UID only (Hex and ENTER delimiter)
Data Transfer Rate
Up to 50 mm, depending on environment and transponder
Support Systems
Windows XP, Vista, 7 (32-/64-bit), 8, 8.1,10, Linux, Android
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

80 mA typ. (USB, normal operation); 150 mA peak
Dimensions

103 x 76 x 17mm
Weight

126g ± 5%
Operating Temperature Range

‐10° to 70°C
Storage Temperature Range

‐25° to 85 C
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

2x LED (Green and Red)
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM

Support customer customization and provide personalized smart card solutions
