XDR02 ISO14443 NFC Contactless Smart Card Reader Embedded Module Without External Antenna Board Passport RFID Identification
XDR02 ISO14443 NFC Contactless Smart Card Reader Embedded Module Without External Antenna Board Passport RFID Identification
XDR02 ISO14443 NFC Contactless Smart Card Reader Embedded Module Without External Antenna Board Passport RFID Identification
XDR02 ISO14443 NFC Contactless Smart Card Reader Embedded Module Without External Antenna Board Passport RFID Identification
Specifications
Operation System :
Linux, ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m, 3-5cm
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO 14443A/B
Material :
ABS
Support Card :
MIFARE
Host Interface: :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector: :
USB Type A
Contactless Supported Standard: :
ISO14443 & ISO18092
Contactless Transfer Rate: :
106, 212, 424, or 848 kpbs, depending on card IC
Card Size: :
ID-1 (full-size)
Driver: :
PC/SC
Support Systems: :
Win2000+/Linux/MacOS/Android
Support OEM&ODM: :
YES
Description
Product Description

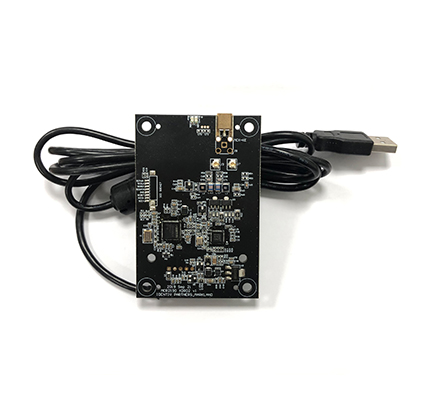

XDR02 Contactless Smart Card Reader Module

XDR02 ISO14443 NFC Contactless Smart Card Reader Embedded Module Without External Antenna Board Passport RFID Identification

• COMPACT
Size optimized for space constraint equipment
• COMPLIANT
ISO 14443 A/B, FeliCa, NFC Reader/Writer Mode and Peer-To-Peer mode. Full feature support of various contactless tags and NFC devices
• FAST
Optimized transaction times for highest throughput
• SIMPLE INTEGRATION
PC/SC standards-compliant driver for Windows®, Linux, Android and MAC

XDR02 is the ideal combination of contactless and near field communication (NFC) technologies in just one single device. Featuring 13.56 MHz contactless technology and NFC, this PC-linked reader supports end-user environments where virtually all kinds of contactless credentials are being used, even in mixed populations. With its all-in-one concept, the XDR02 enables a smooth transition from well-established traditional technologies into emerging NFC applications, supporting new business. It represents the perfect mix between modern, stylish design and the same ergonomic operation of any credential form factor, like ID-1 cards, tokens or NFC-enabled smart phones. The Identiv driver platform, as well as the Windows® Plug-and-Play driver support, allow seamless integration into any end-user environment with very little or no administration. The XDR02 can even be used on Android- based systems. With XDR02, the end user experiences convenience, transaction-time efficiency, security, flexibility and full NFC capability for applications such as network log-on, secure web-based transactions and even NFC-based customer loyalty programs. The product also has been designed for secure in-field firmware upgrades and great reliability, providing a perfect return on investment.
Specification
PARAMETER
XDR02 Contactless Smart Card Reader Module
Host Interface
USB 2.0 full speed (12 Mbps)
Supported Standards
ISO14443 & ISO18092
Supported Card Chips
• Lascom cards
• MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21
• NFC Forum Tag types 1/2/3/4
Data Transfer Rate
106, 212, 424, or 848kpbs, depending on card IC
Antenna
Optional external antenna board
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/ 8.1/10 (32 and 64 Bit)
• Windows® Server 2003/2008/2012
• MacOS 10.10.x,10.11.x, 10.12.x
• Linux 2.6.x (32 and 64bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

50mA, excluding card
Dimensions

80 x 55 x 8 mm
Weight

40 g ± 5%
Operating Temperature Range

0° to 50° C (32° to 122° F)
Storage Temperature Range

-25 to 85°C (-4 to 140°F)
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM

Support customer customization and provide personalized smart card solutions
