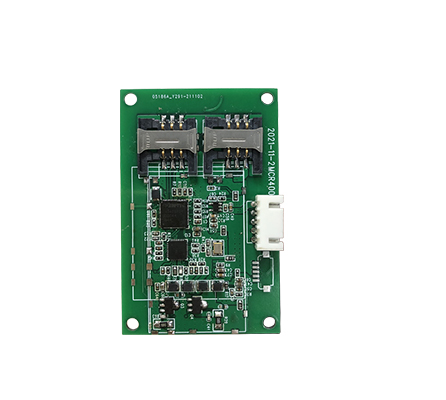

MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816
Specifications
Operation System :
Linux, ANDROID 10, Android 11, Windows 10, android 9.0, windows 7
reading distance :
0-3m
Place of Origin :
China
Frequency :
13.56Mhz
protocol :
ISO14443
Material :
ABS
Support Card :
MIFARE
Host Interface: :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector: :
Optional
Contactless Transfer Rate: :
106, 212, 424, or 848 kpbs, depending on card IC
Card Size: :
ID-1,SIM size
Driver: :
PC/SC
Support Systems: :
Win2000+/Linux/MacOS/Android
Support OEM&ODM: :
YES
Description
Product Description

MCR400-M Contactless Smart Card Reader Module with SAM

MCR400-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module With SAM ISO7816

• USER CONVENIENCE
Modern housing design optimized for easy and ergonomic operation even in limited space environments
• CONVERGENT
Features contactless, Lascom, and NFC technologies for use in mixed credential populations
• INTEROPERABLE
Supports major card ICs standards and technologies in just one device
• FAST
Transaction time optimized with support of 848 kpbs in ISO/IEC 14443 and 600 kpbs in ISO/IEC 7816
MCR400-M Contactless Smart Card Reader with SAM is the ideal combination of contactless and near field communication (NFC) technologies protected by an optional Secure Access Modules (SAM) in just one single device. Supporting ISO/IEC 7816 SAM, 13.56 MHz contactless technology, and NFC, this PC-linked dual interface reader features end-user environments where virtually all types of credentials are used, even in mixed populations. With its all-in-one concept,MCR400-M enables a smooth transition from well-established traditional technologies into emerging NFC applications, pushing new business. It represents the perfect mix between modern, stylish design and the ergonomic use of any credential form factor, like ID-1 cards, tokens, or NFC-enabled smart phones. With its protected SAM socket,MCR400-M conveniently adds security to most contactless use applications. The end user experiences convenience,transaction-time efficiency, security, flexibility, and full NFC capability for use applications such as network logon, secure web based transactions, and even NFC based customer loyalty programs.
Specification
PARAMETER
MCR400-M Contactless Smart Card Reader Module with SAM
Host Interface
USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication Speed
12 Mbps (USB 2.0 full speed)
SAM card Supported Standards
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant up to 5 MHz; Operates up to 12 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-000 (SIM size)
Smart Contact Type
Support 6pin for SAM
Contactless Supported Standards
Contactless Supported Standards

• ISO 14443 Part 1 to 4
• ISO 18092
Protocols
T=CL
Supported Card Chips
• Lascom Cards
• MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k) FeliCa™, Calypso, CD21
• NFC Forum Tag types 1/2/3/4
Data Transfer Rate
106/212/424/848 kbits/s, depending on card IC
Antenna
Integrated
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/ 8.1/10 (32 and 64 Bit)
• Windows® Server 2003/2008/2012
• MacOS 10.10.x,10.11.x, 10.12.x
• Linux 2.6.x (32 and 64bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

<220mA, excluding smart card;<400mA, with smart card;<600μA in Standby Mode
Dimensions

70 x 45 x 10 mm
Weight

20 g ± 5%
Operating Temperature Range

‐10° to 70°C
Storage Temperature Range

‐25° to 85 C
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

Dual color LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes
Systems/Standards
ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® WHQL
Regulatory/Environmental
RED 2014/53/EU, FCC, CE, UL94, UL60950, VCCI, RFLJ, RoHS2, REACH, WEEE
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM

Support customer customization and provide personalized smart card solutions
