Specifications
Brand Name :
MIKIM
Model Number :
65,70,75,85,95,120,136
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
$1500.00 - 9500.00/ Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
7-10 work days
Packaging Details :
packed by wooden export package or loading by container
Machine Type :
Extruder-based production line
Pellet Size :
0.5-15mm
Conditioner :
double or three layer conditioner
Power Supply :
380v/220v or customized
Machinematerial :
Stainless steel and carbon steel
Feeding Method :
Automatic
Weight :
500-2000 kg
Advantage :
easy operation
Productname :
Fish Feed Pellet Machine
Energy :
Electricity
Capacity :
100-2000 kg/h
Description

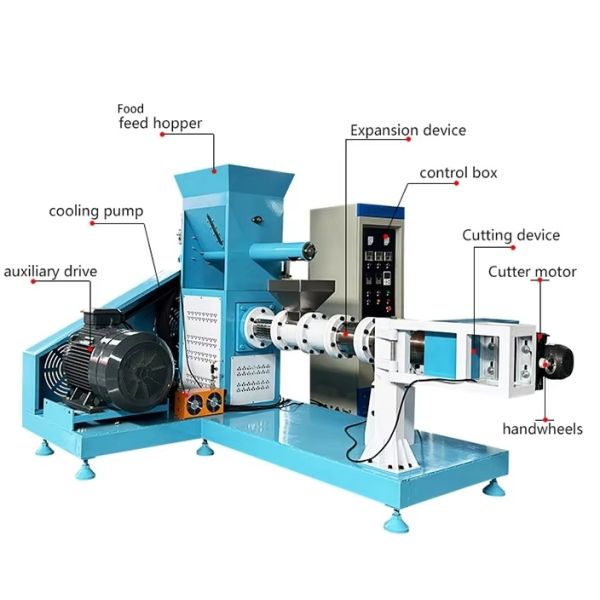

Product Overview

This Floating fish food pellet manufacturing machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. 2 The puffing feed extruder for pet feeds can float on the water surface for over12 hours without water polution.

1 According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc.

2 The finished pellets can keep floating for 12 hours without pollution to water.

3 The floating time can be controlled by the puffing degree adjustment

4 Floating feed extruder for pet feed can make pellet from diameter 1mm-12mm just by changing the mould.

5 Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6 High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

7 The cutting device can be adjusted to make pellets of different length.

8 The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.


Material Requirements for Floating Fish Feed Extruder
  • Raw materials: Corn, Wheat, Soybean, Grain, Bone powder, etc.
  • Raw materials need to be ground into 60-80 mesh
  • Raw materials moisture content: 20-30%
  • Diameter of final pellets: 0.9-12mm
  • Length of pellets adjustable by controlling the cutting knife

Pellet Size and Shape Customization
Final pellets size ranges from 0.9-12mm according to your requirements. Simply change the molds to achieve different size pellets. Various pellet shapes are available for customization.
Stainless Steel Floating Fish Feed Extruder Machine with 100-2000 kg/h Capacity and Easy Operation
Final Product
Customized shapes available
Stainless Steel Floating Fish Feed Extruder Machine with 100-2000 kg/h Capacity and Easy Operation

Our Services


Service before sale

1, 24 hours online .Your inquiry will be quick reply by email .

Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )

2,Professionally and patiently introduction,details pictures and working video to show machine

Service on sale :

1,Test every machine and inspect the machine seriously .

2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .

3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.

If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.

Service after sale

1, Free insurance for goods

2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factoy.

Product Specifications
Model
Capacity (kg/h)
Main motor (kw)
Feeder motor (kw)
Cutter motor (kw)
Screw diameter (mm)
Machine size (mm)
Weight (kg)
DGP-40
40-50
5.5
0.4
0.4
φ40
1.36*1.3*0.85
320
DGP-60
120-150
15
0.4
0.4
φ60
1.36*1.33*0.86
420
DGP-70
200-250
18.5
0.4
0.4
φ70
1.36*1.33*0.86
550
DGP-80
300-350
22
1.5
0.55
φ80
2.3*1.7*1.4
720
DGP-90
400-450
30
1.5
0.55
φ90
2.3*1.8*1.4
1100
DGP-100
500
37
1.5
1.5
φ100
2*2.8*1.2
1500
DGP-120
600-700
55
1.5
1.5
φ120
2.2*2.9*1.2
1800
DGP-135
800-900
75
1.5
2.2
φ135
2.2*3.1*1.37
2000
DGP-160
1000-1200
90
2 2
2.2
φ160
2.3*3.15*1.38
2500
DGP-200
1800-2000
132
3
3
φ200
2.35*3.45*1.65
3200
Stainless Steel Floating Fish Feed Extruder Machine with 100-2000 kg/h Capacity and Easy Operation Stainless Steel Floating Fish Feed Extruder Machine with 100-2000 kg/h Capacity and Easy Operation Stainless Steel Floating Fish Feed Extruder Machine with 100-2000 kg/h Capacity and Easy Operation
Tianjin Mikim Technique Co., Ltd.
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation and commissioning, and after-sales service. With 35 years dedicated to the design and production of feed machinery industry, we have passed many certifications including CE, ISO, etc.
We are primarily engaged in two fields: feed pellet machine production line (hammer mill-mixer-conveyor-feed pellet machine-cooling & vibration system-packing and sealing) and feed extruder production line (mixer-twin screw extruder machine-dryer-drum seasoning machine-cooling towers-packing machine).
We produce high quality and competitively priced equipment, exported worldwide, enjoying a good reputation. Our comprehensive after-sales service system helps customers solve all operational problems.
