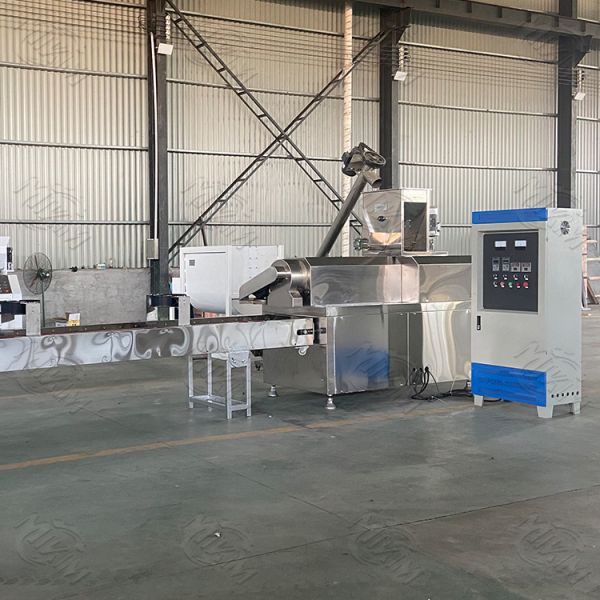

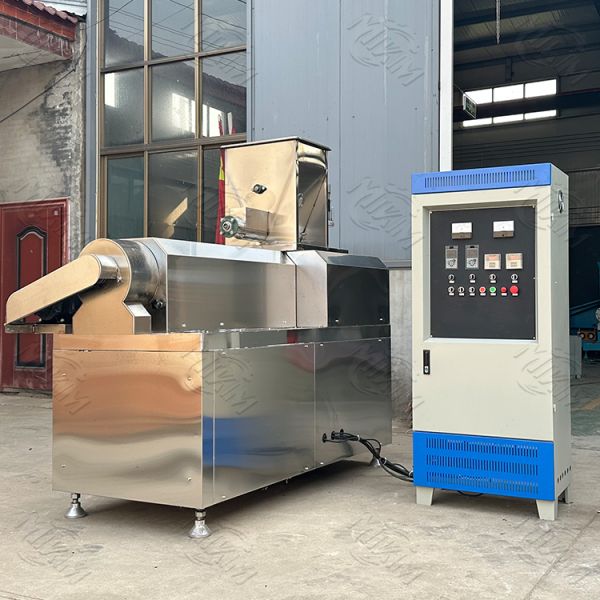

The dog food pellet extruder machine consists of several components, including a hopper where the raw ingredients are loaded, a screw conveyor that moves the ingredients through the machine, and a barrel where the ingredients are cooked and shaped into kibble or pellets. The extrusion process involves using high pressure and temperature to cook and shape the ingredients into the desired form.

Most dog food extruders are designed to process a wide range of ingredients, including meats, grains, and vegetables. The extruder can also be used to add vitamins and minerals to the dog food to ensure a balanced diet.

1.Materials for dog/cat/fish food: wheat/ corn flour, fish meal, born powder, animal oil
2. Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3.Full production line dog cat extruder making pet feed food pellet make machine line Capacity: 150kg/h, 250kg/h, 500-600kg/h,1000kg/h
4. Consumption: Low electricity and labor consumption
5. Design: With flexible design based on the client's demands, we provide turn key project.

6.Grade: SUS201,SUS304

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.

2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system.

Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.

3. Gearbox with automatic lubrication function, extending gear life.

4. World famous brand Siemens main motor, guaranteeing good quality

5.Barrel with water-cooled circulation,raw materials not only for corn/rice,also for wheat flour

starch with high viscosity. Different moisture-extrusion temperature ratio,whole expanded

and half expanded as different type of products.

6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

.
