Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Total power :
5.7kw
Air pressure :
0.6-0.8mpa
Edge banding speed :
0-20cm/s
Weight :
470kg
Overall size :
1550*1400*1350mm
Edge band width :
14-70mm
Description
Wood Edge Banding Machine for Curved Edges Automatic Bander
Products Description
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges
Feature
1. Heighten the machine head 7cm sheet
2. Data storage 20 data
3. Brand new cutter, fast and vertical
4. Clean the kit, clean and lubricate
5. Trimming, start and stop, intelligent and safe
6. Follow-up scraping, flat scraping treatment
Product Paramenters

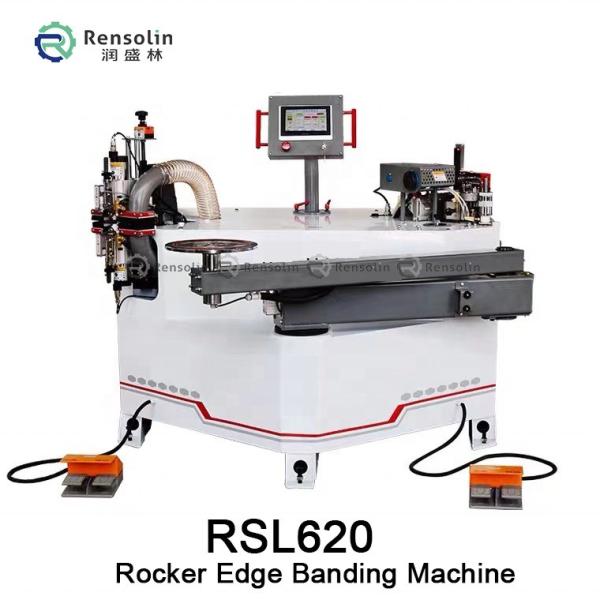

Name:RSL620 Curve Edge Banding Machine
Power supply: 380V/three-phase four-wire (3 live wire + 1 zero wire) 50HZ/60HZ
Total power: 5.7KW
Air pressure: 0.6-0.8Mpa
External suction: suction port p150, flow rate 40-45m/s
Glue pot operating temperature: 110°-210R
Touch screen: IT7000 industrial touch screen
PLC: HIU-XP PLC
Inverter: MD200 2.2KW industrial inverter
Edge banding motor: 220V180W single-phase motor
Trimming profiling motor: 220V 6OW single-phase motor
Trimming speed spindle: three-phase 220V, 400HZ24000r/min
Edge band thickness: usually 0.5-3mm (related to edge band material)
Edge band width: 14-70mm
Edge banding speed: 0-20cm/s
Trimming board thickness: <12mm single-sided trimming, 12-70mm upper and lower double trimming (related to trimming knife)
The minimum radius of the inner arc: usually 20mm (special operation can be sealed with a radius of 3mm)
edge band types: PVC, veneer (need to be customized), plastic, melamine, etc.
Packing size: 1550*1400*1350 (length * width * height mm)
Details display
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

1.Hot air suit

Double heating, additional switch at the air inlet, energy saving, optimized air outlet, uniform air outlet
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

2. Ladder

Brand new upgrade, overall heightened, easy to adjust.
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

3. Adjust the amount of glue on the screw

Glue volume adjustment handwheel, eliminate thread gap, high precision.
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

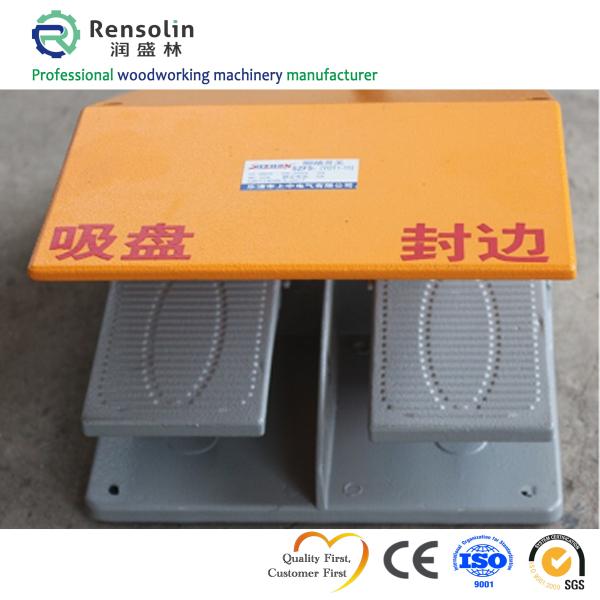

4. Double pedals

Double-connected control sucker, easy to operate.
Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

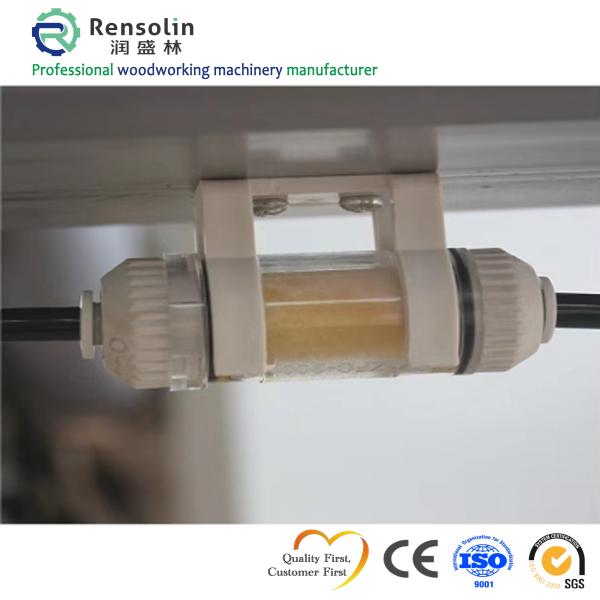

5. Vacuum filter

Dust filter suction cup has strong suction power
