4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
Specifications
Place of Origin :
China
Brand Name :
Rensolin

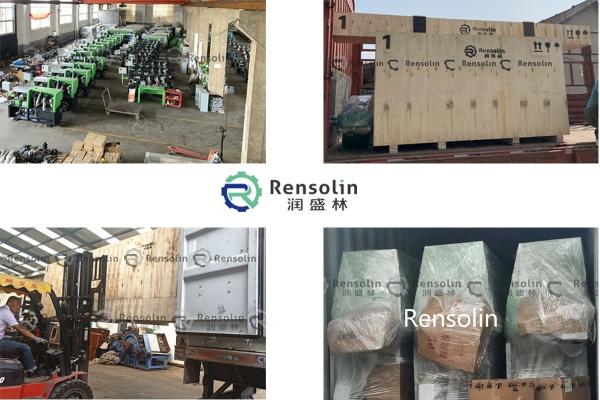

Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$2,800.00 - $5,800.00/sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Work piece Thickness :
10-60mm
Work piece Delivery Speed :
12-20m/min
Gross Power :
9kw
Rolling Edge-banding Belt Thickness :
0.4-3mm
Pressure :
0.6-0.8mpa
Port :
Qingdao,China
Description
Products Description
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
350AD Functions
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step1: Glue and Pressing
The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid
conglutination.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step2: End Cutting
The end trimming mechanism through a high precision linear guide rail, adopt automatic tracking and high-frequency motor fast
cutting structure to ensure the cutting surface smoothly.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step3:Rough Trimming
Comes with flat knife which can prevent thin veneer from cracking. This can reduce the cutting forces, wear and tear of fine trimming cutter.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step4: Fine Trimming
Used for cutting the excess edge materials,adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step5: Scraping
For a perfect finishing of the applied edge.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Step6: Buffing
Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface.
Machine Application
Model
RSL350AD
Name
Full Automatic edge banding machine
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. width of panel
>=80mm
Min. length of panel
>=120mm
packaging size
4100mm*750mm*1600mm
Feeding speed
12-20meters/min
Total power
9kw
Air pressure
0.6-0.8 Mpa
Voltage
380V/50HZ/3phase
Weight
1400KG
product advantages
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Electric Wires
Use imported motor and high quality electronic partsProduct seriation, multi-choice for customers
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Power off switch and Phase sequence protector
Avoid accidents that may be caused by the reversal of the machine installation, protect the safety of workers, and ensure the service life of the machine..
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Transformer
Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.
4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Contactor
Switch on and off the circuit, low voltage release protection.
