Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$3,000.00 - $6,000.00/sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Condition :
New
Weight (KG) :
1600 kg
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co
Video outgoing-inspection :
Provided
Product name :
450AD Edge banding machine
Panel thickness :
10-60mm
Description
Advanced 6 Functions Edge Banding Machine with Automatic Gluing Trimming and Buffing
Products Description
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
RSL 450 Functions
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander

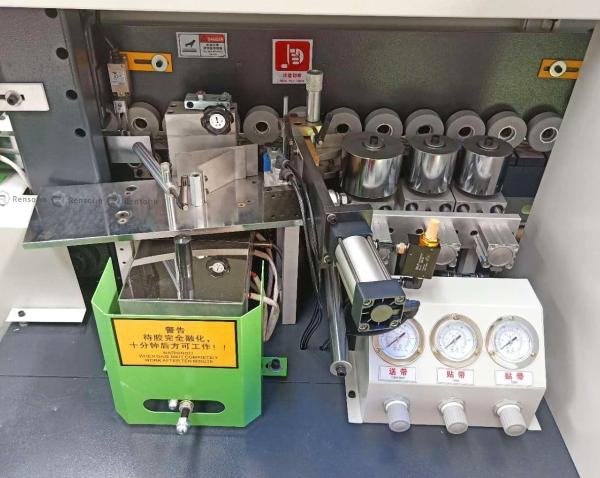

Step1: Glue and Pressing
Using the spiral structure of glue feeding , through the processing center of the one-time forming of the glue pot heating sol,so that the plate uniformly coated with glue and the adhesive force is more firm.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Step2: End Cutting
High matching German technology are adopted, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Step3:Rough Trimming
It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Step4: Fine Trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip ,will not seal edge strip surface dark mark.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Step5: Scraping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Step6: Buffing
Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing.
Machine Application
ding Machine
RSL450AD
Motor Power
7.8KW
Overall size
4200*750*1600mm
Feed speed
13-20m/min
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. length of panel
≥100mm
Min. width of panel
≥50mm
Working air pressure
0.6-0.8 Mpa
Weight
1600KG
product advantages
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander

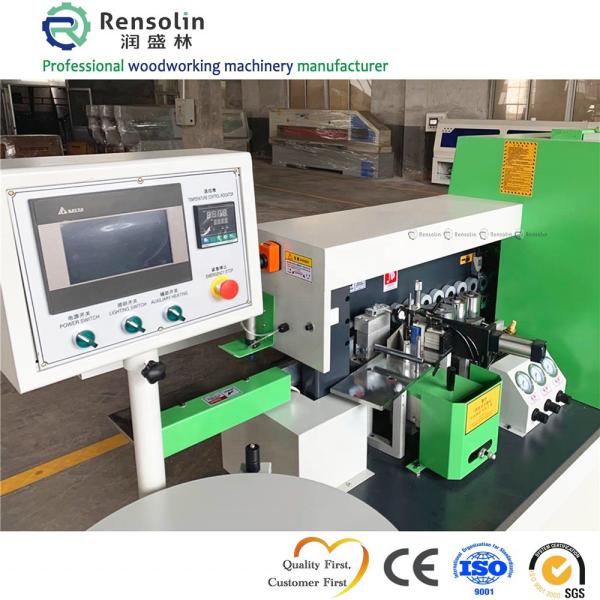

Display Screen
The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Laser cut body
Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Imported motor, multi- choices
Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.
Products Display
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander
Service
PRE-SALE SERVICES:
1.Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warranty period.: 2years
3. Provide custom-made service offening good suggest and design idea to customer.
4. Welcome to visit our factory.
SERVICES DURING SALES:
1.Fast delivery and 100% QC Inspection before shipmen.
2. Install and debug the machine well in our factory.
3. Provide safety package and shipping to clients.
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge.
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you .
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.For sliding table saw you just need install sliding table on machine body by 4 bolts
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.

Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.

Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shipping company will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
