Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$2,000.00 - $5,888.00/sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Power (kW) :
7.8kw
Weight (KG) :
1500 kg
Function :
Gluing, custom made
Panel Thickness :
10-60mm
Edge thickness :
0.4-3mm
Port :
Qingdao,China
Description
Edge Banding Machine for Panel Feed Speed 18m/min MDF Boards Plywood Furniture Cutting

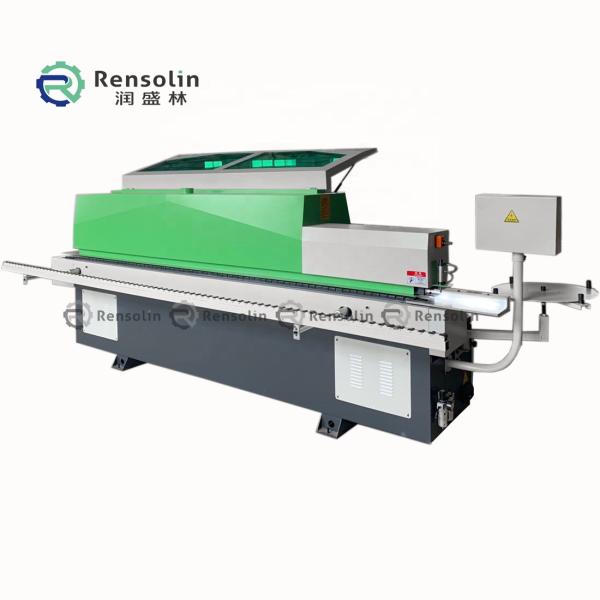

Rensolin Factory-RSL450AD High Quality Level Model Edge Banding Machine
Product Description
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step1: Glue and Pressing
Using the spiral structure of glue feeding , through the processing center of the one-time forming of the glue pot heating sol,so that the plate uniformly coated with glue and the adhesive force is more firm.
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step2: End Cutting
High matching German technology are adopted, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive.
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step3:Rough Trimming
It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm.
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step4: Fine Trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip ,will not seal edge strip surface dark mark.
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step5: Scraping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.
18m/Min Wood Edge Bander Panel MDF Boards Laminate Plywood Edge Banding
Step6: Buffing
Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing.
Specification
Type
Edge Banding Machine
Function
Glue and press,end cutting,rough trimming,fine trimming,scraping ,buffing function
Brand Name
Rensolin
Voltage
220v/380v/415v
Panel Thickness
10-60mm
Edge thickness
0.4-3mm
Feeding speed
13-18m/min
Working Pressure
0.6-0.8Mpa
Total Power
7.8kw
Machine Size
4200*750*1600mm
Weight
1500kg
Key word
wood based panels edge banding machine
Applicable Industries
furniture making, woodworking machinery edge banding machine, wood based panels machinery, Solid wood board, fiberboard, particle
board edge
Qingdao Runshenglin Machinery Co.,Ltd is a professional manufacturer of woodworking machinery with R&D, manufacturing and sales.
The leading products include CNC Router, Precision Panel Saw, Edge Banding Machine, Driller Machine, Vacuum Laminating Machine, Solid wood series and many other woodworking machinery.
In order to abide by the quality commitment to customers, we pay attention to establish professional research and technical team, perfect testing system, can provide one-stop service for design, installation and commissioning according to customer needs. We takes the principle of Quality First and Customer First, provide Systematic Pre-sale and After-sale Service, All machines have passed CE&ISO certification,Now our machine exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia, received many good feedback from customers Warmly welcome customers to visit and negotiate business, our quality products and perfect service will make you satisfied!
Rensolin Service
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.
