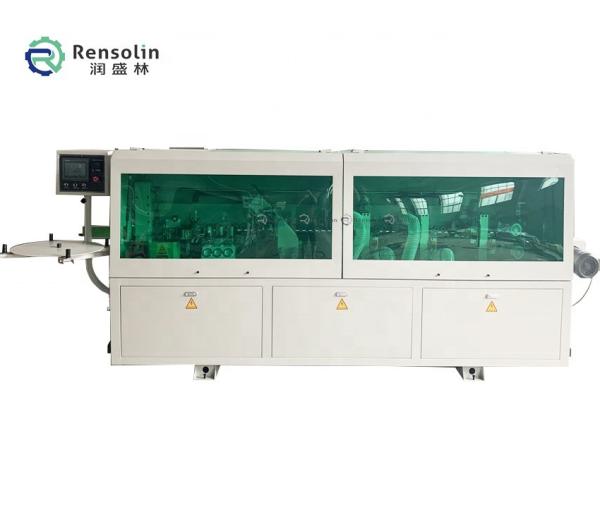

9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$1,500.00 - $5,500.00/sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Condition :
New
Type :
Edge Banding Machine
Voltage :
220v/380v/415v, 220v/380v/415v
Dimension(L*W*H) :
4100*750*1600mm
Power (kW) :
9kw
Weight (KG) :
1400 kg
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Warranty :
2 years
Function :
Gluing
Key Selling Points :
High-accuracy
Panel Feed Speed(m/min) :
20m/min
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Core Components :
Motor, PLC
Usage :
wood based panels machinery edge sealing
Name :
Edge Banding Machine
Panel thickness :
10-60mm
Edge banding tape thickness :
0.4-3mm
Motor powder :
9kw
Feed speed :
12-20m/min
Panel width :
>=80mm
Working air pressure :
0.6-0.8Mpa
Overall size :
4100*750*1600mm
Weight :
1400kg
Port :
qingdao port,china
Description
Automatic Edge Banding Machine for Wood Based Panels Gluing Function Panel Width 80mm
Products Description
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm

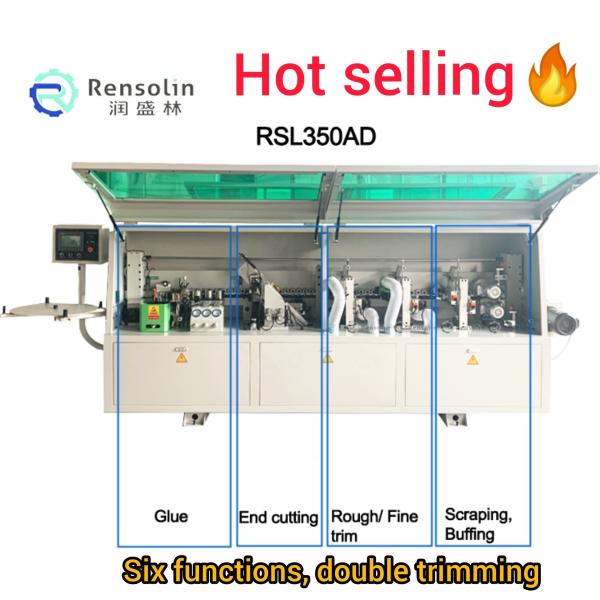

Functions
Step 1:Glue and Pressing
The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
Step2:End Cutting
The end trimming mechanism through a high precision linear guide rail, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly

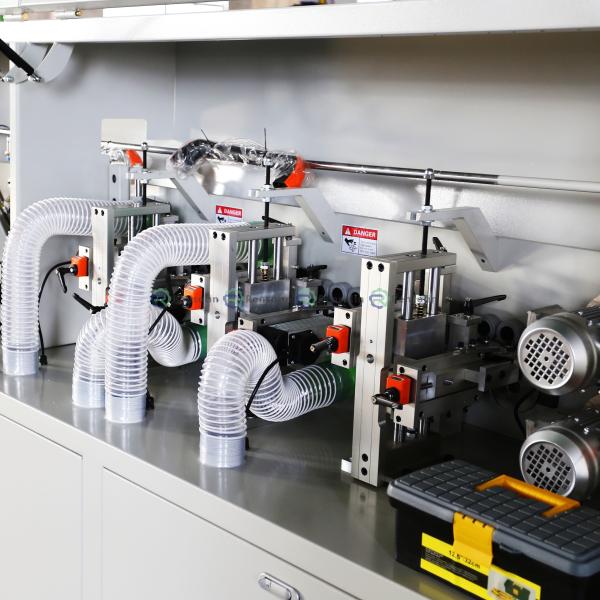

Step3:Rough Trimming
Comes with flat knife which can prevent thin veneer from cracking. This can reduce the cutting forces, wear and tear of fine trimming cutter
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
Step4:Fine trimming
Used for cutting the excess edge materials,adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly
Step5:Scraping
For a perfect finishing of the applied edge
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
Step6:Buffing
Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface
product advantages
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
1. Display Screen-DELTA BRAND PLC TOUCH SCREEN SYSTEM
The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop to protect personal safety and stop machine operations in time.
2.CNC Laser cut whole machine body
Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing thestability of the machine.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
3.Electrical part-Safety is important thing for you,for us!
Electrical appliances are very important and are related to the personal safety of workers. We use famous electrical appliances and high-quality electronic parts, and 100% of the electrical appliances have passed the electrical test. We have professional electrical engineers to design the optimal circuit to ensure the safe and reliable long-term operation of the entire line.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
1.Electric Wires :Use imported motor and high quality electronic parts, Product seriation, multi-choice for customers.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
2.Power off switch and Phase sequence protector:Avoid accidents that may be caused by the reversal of the machine installation,protect the safety of workers, and ensure the service life of the machine.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
3.Transformer:Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
4.Contactor:Switch on and off the circuit, low voltage release protection.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
Company Profile
Our factory have independent research and development team. We are committed to developing the highest performance machines.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm

All our machines are processed by CNC machining center, and pass; gantry milling west to improve accuracy.
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm

If the surface is not milled through the gantry, it will be rough surface as shown in this picture.
Product Paramenters
Edge Banding Machine
RSL 350AD
Key Word
Edge banding machine
Motor Power
9KW
Overall size
4100*750*1600
Feed speed
12-20m/min
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. width of panel
≥80mm
Working air pressure
0.6-0.8 Mpa
Weight
1400KG
Products Effect Display
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
Service
PRE-SALE SERVICES:
1.Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warranty period.: 2years
3. Provide custom-made service offening good suggest and design idea to customer.
4. Welcome to visit our factory
SERVICES DURING SALES:
1.Fast delivery and 100% QC Inspection before shipmen
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you .
