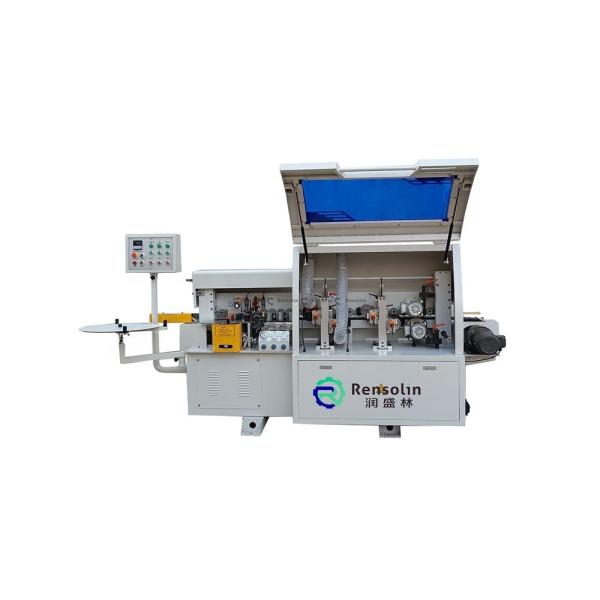

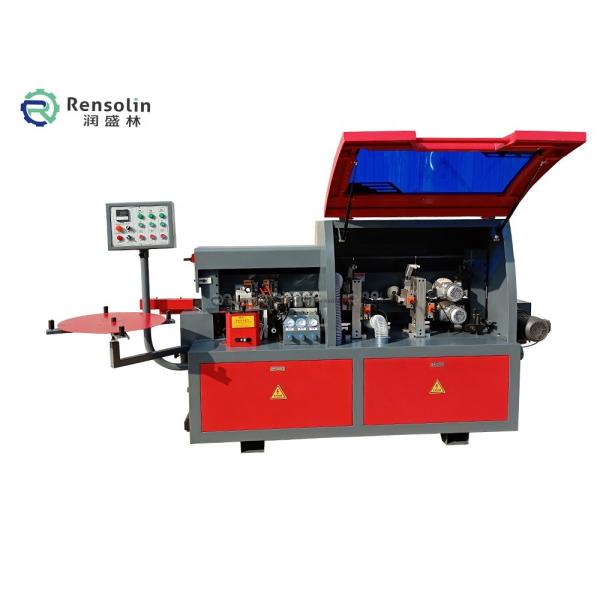

220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$2,500.00/sets 1-2 sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Condition :
New
Type :
Edge Banding Machine
Voltage :
220v/380v/415v
Dimension(L*W*H) :
2750*750*1600
Power (kW) :
6kw
Weight (KG) :
1000 kg
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Advertising Company, plywood machinery
Warranty :
2 years
Function :
gluing;fine trimming;scraping;buffing
Key Selling Points :
Easy to Operate and durable
Panel Feed Speed(m/min) :
13m/min
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Core Components :
Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Engine
Usage :
Plywood Production
name :
edge banding machine
Air pressure: :
0.6-0.8Mpa
voltage :
380V/220V/415V
Weight :
1000kg
Overall size :
2750*750*1600mm
Total power: :
6kw
Feeding speed : :
13m/min
Min width of wood: :
>=80mm
Min length of the wood: :
>=120mm
Edge band thickness: :
0.4-3mm
Port :
qingdao port,china
Description
380V/220V/415V Semi Automatic Edge Banding Machine for Woodworking Plywood Production
Products Description
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
Feature:
It is easy for operator to operate easily .
It mainly applied to the panel edge sealing of plywood,fiberboard,practice board and so on.
Advantage:
It solve the traditional manual mode and narrow.
This equipment has high precision in the machining process.
Product Paramenters
Edge Banding Machine
RSL 340
Key Word
Edge banding machine
Motor Power
6KW
Overall size
2750*750*1600
Feed speed
13m/min
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. length of panel
≥120mm
Min. width of panel
≥80mm
Working air pressure
0.6-0.8 Mpa
Weight
1000KG
Functions
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
1 Glue and pressing
Through the processing center of the one-time forming of the glue pot heating sol, using the spiral structure of glue feeding

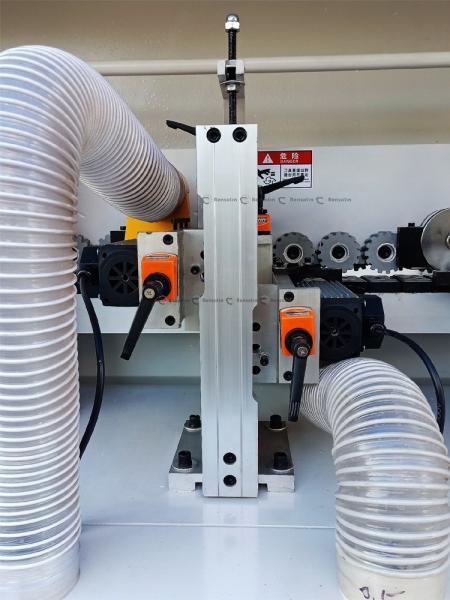

2 Fine trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip (such as acrylic edge strip), will not seal edge strip surface dark mark.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
3 Scrapping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more
smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.
4 Buffing
Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing product
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
product advantages

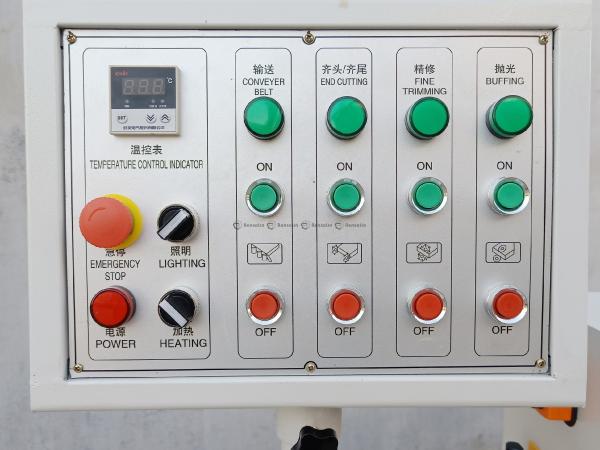

1. Display Screen-DELTA BRAND PLC TOUCH SCREEN SYSTEM
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop to protect personal safety and stop machine operations in time.
2.CNC Laser cut whole machine body
Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing thestability of the machine.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
3.Electrical part-Safety is important thing for you,for us!
Electrical appliances are very important and are related to the personal safety of workers. We use famous electrical appliances and high-quality electronic parts, and 100% of the electrical appliances have passed the electrical test. We have professional electrical engineers to design the optimal circuit to ensure the safe and reliable long-term operation of the entire line.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
1.Electric Wires :Use imported motor and high quality electronic parts, Product seriation, multi-choice for customers.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
2.Power off switch and Phase sequence protector:Avoid accidents that may be caused by the reversal of the machine installation,protect the safety of workers, and ensure the service life of the machine.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
3.Transformer:Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
4.Contactor:Switch on and off the circuit, low voltage release protection.
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
Products Effect Display
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
PRE-SALE SERVICES:
1.Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warranty period.: 2years
3. Provide custom-made service offening good suggest and design idea to customer.
4. Welcome to visit our factory
SERVICES DURING SALES:
1.Fast delivery and 100% QC Inspection before shipmen
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you .
