Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Panel thickness :
10-60mm
Edge banding tape thickness :
0.4-3mm
Working air pressure :
0.6-0.8Mpa
Weight :
1200kg
Description
Door Furniture Full Automatic Edge Bander Working Air Pressure 0.6-0.8Mpa Gluing Function
Products Description

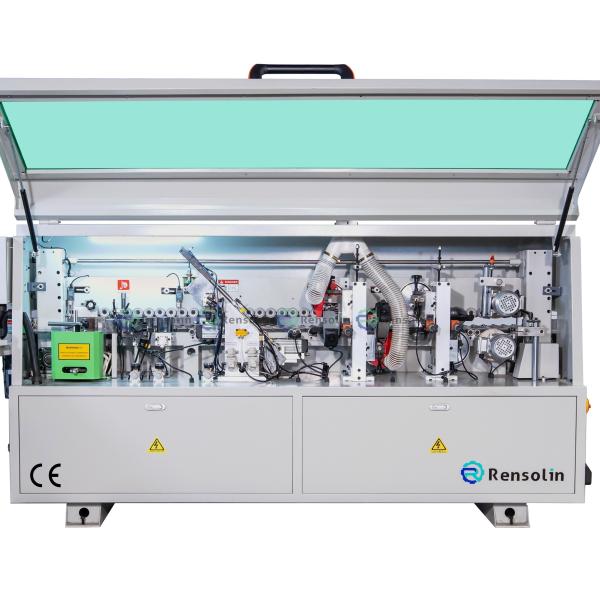

RSL 440S Edge banding Machine
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Main Functions
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Preheating
The 300W heating plate is assembled at the feeding plate to preheat the plate in advance, which is beneficial to the
bonding of the edge banding belt.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Gluing and Pressing
The glue pot is one-formed with CNC center, never leak glue Five 300W heating rods are equipped with thermocouples to realize cyclic heating.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
End Cutting
Pure iron base, with Airtec cylinder, solenoid valve,Taiwan linear guide.The special gas circuit principle is adopted to solve the problem of broke hit the head of plate.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Fine Trimming
The inclined repair design makes the trimming better, and the high-speed motor of Changchuan CC is adopted.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Scraping
The edge scraping function makes the knife grain smoother and the edge sealing effect better.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Polishing
Powerful polishing motor makes the sealing surface smooth
Product Paramenters
Edge Banding Machine
RSL 440s
Motor Power
6.7KW
Overall size
2750*750*1500
Feed speed
12-20m/min
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. length of panel
≥100mm
Min. width of panel
≥50mm
Working air pressure
0.6-0.8 Mpa
Weight
1200KG
product advantages
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa
Display Screen
The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three button below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Laser cut body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Imported motor, multi- choices

Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.
Company Profile
Our factory have independent research and development team. Our machine are more precision.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Machine material are passed Longmen Milling Surface. It is very smooth.
Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Not passed Longmen Milling Surface. It is like this one.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
