Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance
Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance
Specifications
Brand Name :
WKS
Certification :
ROHS
Place of Origin :
Hebei,China
MOQ :
200/Piece
Price :
US $9.00 - 11.50/ Piece
Payment Terms :
T/T
Supply Ability :
1000 piece in 10 days
Delivery Time :
10-30 workday
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product name :
Metal Frame Scaffolding
Material :
Steel
Surface treatment :
Galvanization
Size :
Standard Size
Design Style :
Handy
Colour :
Customized Colour
Advantage :
Stable
Usage :
Buidling Constrcution
Keyword :
Scffolding
Packing :
Bundle
Description
Heavy Duty Frame Scaffolding For Industrial Maintenance And Steel Erection
Frame Scaffolding: High-Strength Modular Access & Support System

Frame Scaffolding (also known as Modular Frame Scaffold) is a prefabricated steel structure system widely used for building facade access, interior finishing, and temporary support in construction. It consists of welded frames, cross braces, and accessories, offering a balance of rapid deployment and cost efficiency for medium-to-low rise projects.

Key Features & Functional Advantages
  • Rapid Assembly without Tools: The system uses a simple pin-lock or wedge-lock mechanism to connect frames and braces, eliminating loose bolts. This reduces assembly time by over 50% compared to tube-and-clamp systems and minimizes on-site labor costs.
  • Stable & Rigid Structure: The welded frame design with integrated cross bracing provides excellent lateral stability and load-bearing capacity, safely supporting workers, tools, and light materials.
  • Versatile Configurations: Available in walk-through and ladder-frame types, it can be easily adapted for straight runs, corners, and mobile tower setups with casters.
Technical Specifications
  • Material: Q235 or Q345 Steel (Main Tube: φ42mm-φ48mm, Wall Thickness: 2.0mm-2.5mm)
  • Standard Sizes: Width 1219mm / 914mm; Height 1700mm / 1524mm / 1930mm
  • Surface Treatment: Hot-dip galvanized or powder-coated for corrosion resistance
  • Safety Standards: Complies with OSHA, EN 12811, and GB standards
Competitive Advantages

Our Frame Scaffolding offers superior cost-effectiveness for repetitive projects due to its low initial investment and minimal maintenance requirements. It provides a safer and more efficient alternative to traditional tube scaffolding, with full technical support including layout design and load calculations to ensure project safety and compliance.

Product Parameters

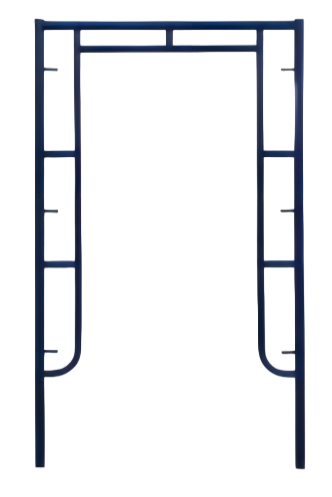

1. Walk Through Frame
Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA63 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Door Frame Walk Thru Frame Width 914mm, Height 1524mm 10.81
SCA64 Walk Thru Frame Width 914mm, Height 1700mm 12.05
SCA65 Walk Thru Frame Width 1219mm, Height 1524mm 11.68
SCA66 Walk Thru Frame Width 1219mm, Height 1700mm 12.91
SCA67 Walk Thru Frame Width 1219mm, Height 1930mm 14.37
2. H Frame
Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA68 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Ladder Frame H Frame Width 914mm, Height 1524mm 7.96
SCA69 H Frame Width 914mm, Height 1700mm 11.43
SCA70 H Frame Width 1219mm, Height 1524mm 9.16
SCA71 H Frame Width 1219mm, Height 1700mm 12.76
SCA72 H Frame Width 1219mm, Height 1930mm 14.24
3. American Style Walk Through Frame
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA73 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance American-style door frame American Style Walk Thru Frame Width 914mm, Height 1524mm 14.8
SCA74 American Style Walk Thru Frame Width 914mm, Height 1930mm 17.5
SCA75 American Style Walk Thru Frame Width 1524mm, Height 1930mm 18.9
4. American Style Mason Frame
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA7 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Ladder Frame Mason Frame Width 1524mm, Height 914mm 14.4
SCA77 Mason Frame Width 1524mm, Height 1219mm 16.1
SCA78 Mason Frame Width 1524mm, Height 1524mm 17.9
SCA79 Mason Frame Width 1524mm, Height 1930mm 20.2
SCA80 Mason Frame Width 1524mm, Height 2007mm 21.8
5. Narrow Frame
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA81 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Four-bar frame Narrow Frame Width 610mm, Height 1524mm 10.6
SCA82 Narrow Frame Width 610mm, Height 1930mm 12.5
SCA83 Narrow Frame Width 914mm, Height 1930mm 18.1
SCA84 Narrow Frame Width 1219mm, Height 1930mm 19.9
6. Italian Style Frame
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x2.0mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
Item No. Picture Product Name Description Weight (kgs)
SCA85 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Italian-style door frame Italian Style Frame Width 1050mm, Height 2000mm 11.6
7. Base Jack

Designed to provide a level base for the scaffolding platform | Steel Grade: Q235 | Surface treatment: Hot-dip Galvanized

Item No. Picture Description Diameter (mm) Length (mm) Plate Size (mm) Weight (kgs)
SCA86 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Solid BaseJack φ30 (solid) 600 120x120x4 3.58
SCA87 Solid BaseJack φ32 (solid) 300 120x120x6 2.72
SCA88 Hollow Base Jack φ38 (hollow) 400 150x150x6 3.19
SCA89 Hollow Base Jack φ48 (hollow) 600 150x150x5 4.33
8. U Head Jack

Used as the base which holds the standard of the scaffold adjusting the height and making the scaffolding more stable | Steel Grade: Q235 | Surface treatment: Hot-dip galvanized

Item No. Picture Description Diameter (mm) Length (mm) Plate Size (mm) Weight (kgs)
SCA90 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Solid U Head Jack φ30 (solid) 600 150x150x50x4 4.32
SCA91 Solid UHead Jack φ34 (solid) 500 140x210x75x6 6.2
SCA92 Hollow U HeadJack φ38 (hollow) 600 150x150x50x6 4.29
CA93 Hollow U HeadJack φ48 (hollow) 600 150x150x50x6 5.23
9. Frame Scaffolding Plank
Steel Grade: Q195, Q235 | Surface treatment: Pre-galvanized | Other sizes are available on request
Item No. Picture Description Width (mm) Height (mm) Length (mm)
SCA94 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Frame Scaffolding Plank 210*1829mm 210 1.2 1829
SCA95 Frame Scaffolding Plank 210*1829mm 210 1.5 1829
SCA96 Frame Scaffolding Plank 240*1829mm 240 1.2 1829
SCA97 Frame Scaffolding Plank 240*1829mm 240 1.5 1829
SCA98 Frame Scaffolding Plank 420*1829mm 420 1.2 1829
SCA99 Frame Scaffolding Plank 420*1829mm 420 1.5 1829
SCA1O0 Frame Scaffolding Plank 500*1829mm 500 1.2 1829
SCA101 Frame Scaffolding Plank 500*1829mm 500 1.5 1829
10. Frame Joint Pin
For Connecting the Scaffoldings | Steel Grade: Q235, Q345 | Surface treatment: Hot-dip Galvanized | Other sizes are available on request
Item No. Picture Description Diameter (mm) Thickness (mm) Length (mm)
SCA102 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Frame Joint Pin 35/36 1.5/1.6 225/220/210
11. Frame Scaffolding Cross Brace
Also called X braces - components of all Frame Scaffolding System | Steel Grade: Q195, Q235 | Surface treatment: Galvanized | Other sizes are available on request
Item No. Picture Description Width (mm) Height (mm) Length (mm)
SCA103 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance Frame Scaffolding cross Brace 1829 1219 2198
SCA104 1219 1219 1724
SCA105 1829 914 2045
SCA106 1829 610 1928
SCA107 1219 610 1363

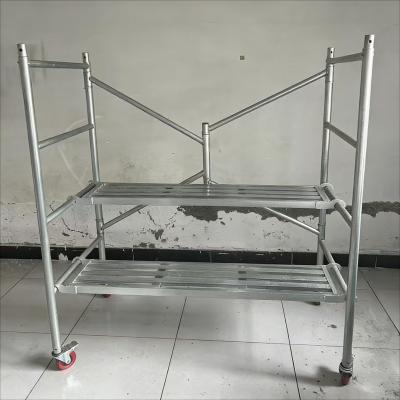

12. Scaffolding Wheel

Used at bottom of scaffolding vertical tube, enabling the scaffolding system to be a mobile Platform

Item No. Picture Product Name Description
SCA108 Heavy Duty Metal Frame Scaffolding High Strength Handy Scaffolding For Industrial Maintenance caster 12" Caster wheel
SCA109 caster 16" Caster Wheel
Service
  • Customized production services: Professional team of engineers and consultants provide detailed product application solutions based on architectural and structural drawings
  • Timely response to service: Professional engineers available before, during, and after sales to promptly solve and meet your needs
  • Worry free after-sales service: One-on-one service teams help complete implementation and landing of engineering projects with perfect product-demand matching
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in the production and processing of formwork and scaffolding products for over 20 years.
How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation. For complex projects like apartments and residences, our professional consultants will develop an application plan based on your engineering architectural and structural drawings.
How long does it usually take to complete the plan and quotation?
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation after receiving your engineering drawings.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time after the contract is signed?
According to project complexity, it usually takes 30-60 days to complete stocking. More accurate delivery time will be estimated during the planning and quotation process.
Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring projects may cause slight deformation of the formwork. We recommend using all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.
What are the defects of the plastic template system?
The load force is too small for large-sized concrete structures, and poor high temperature resistance may cause slight deformation in high-temperature areas.
What is the payment method you require?
  • Payment ≤ 1,000 USD: 100% in advance
  • Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
  • Or L/C
