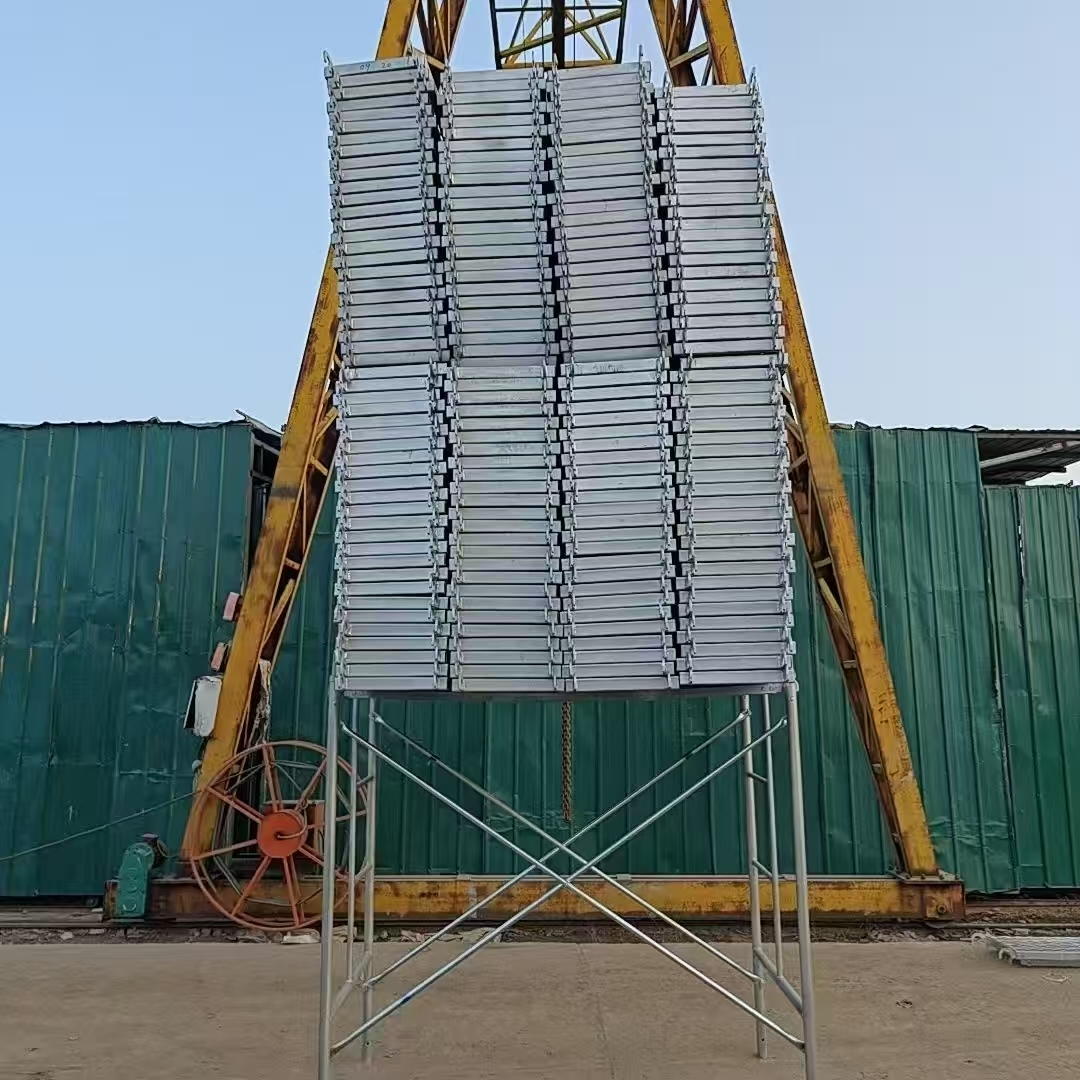

Steel Frame Scaffolding System with Tool-Free Assembly, Built-In Cross Bracing, and Compact Storage
Steel Frame Scaffolding System with Tool-Free Assembly, Built-In Cross Bracing, and Compact Storage
Specifications
Delivery Time :
10-30 workday
Advantage :
Stable
Certification :
ROHS
Material :
Steel
Payment Terms :
T/T
Usage :
Buidling Constrcution
Place of Origin :
Hebei,China
Surface treatment :
Galvanization
Price :
US $9.00 - 11.50/ Piece
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Design Style :
Handy
Keyword :
Scffolding
Supply Ability :
1000 piece in 10 days
Size :
Standard Size
Brand Name :
WKS
Product name :
Frame Scaffolding System
MOQ :
200/Piece
Colour :
Customized Colour
Packing :
Bundle
Description
Professional Frame Scaffolding System for Versatile Construction Access
The Frame Scaffolding System is a pre-welded, modular access solution designed for rapid deployment in residential, commercial, and industrial construction. Featuring a sturdy ladder-frame design with integral cross-bracing, this system eliminates the need for loose diagonal components, enabling tool-free assembly with captive stacking pins.
Key Advantages
  • Tool-Free Assembly - Captive pin connections allow quick stacking without hammers or spanners
  • Built-In Cross Bracing - Welded zig-zag bracing on each frame provides inherent stability
  • Compact Storage - Frames nest together to minimize warehouse space and transport costs
  • Narrow Width Options - 0.7m and 0.9m widths fit through standard doorways for interior work
  • Versatile Configurations - Available in single-width, double-width, and mobile tower setups
  • Corrosion Protection - Electro-galvanized or hot-dip galvanized finish ensures long service life
Customization Capabilities
We offer full customization to suit your project needs:
  • Frame widths: 0.7m, 0.9m, 1.2m, 1.5m
  • Frame heights: 1.2m, 1.5m, 1.7m, 1.8m, 2.0m
  • Material: Q235 or Q355 steel
  • Finish: Electro-galvanized, hot-dip galvanized, or powder coated
  • Accessories: Caster sets, outriggers, guardrail frames, platform planks, screw jacks
Technical Specifications
Parameter Specification
Material Q235 / Q355 Steel
Tube Diameter 42.2mm or 48.3mm OD
Wall Thickness 1.8mm - 2.5mm
Frame Width 0.7m, 0.9m, 1.2m, 1.5m
Frame Height 1.2m - 2.0m
Cross Bracing Integrated welded zig-zag
Max Working Height Up to 15m (with ties/outriggers)
Load Capacity 10 - 25 kN per frame
Finish Electro-galvanized / Hot-dip galvanized / Powder coated
Load Capacity Reference
Tower Width Tower Length Max Height Safe Working Load
0.9m 1.8m 8m 450 kg
1.2m 2.4m 10m 600 kg
1.5m 3.0m 12m 750 kg
Load decreases with height; building ties required above 8-10m.
Typical Applications
  • Interior plastering, drywall, and painting
  • Ceiling and MEP installation
  • Residential facade access (low-rise)
  • Warehouse and retail shelving access
  • Temporary platforms and event staging
Lead Time & Minimum Order
  • Standard orders: 10-15 days
  • Custom projects: 15-25 days
  • Factory direct - competitive pricing
