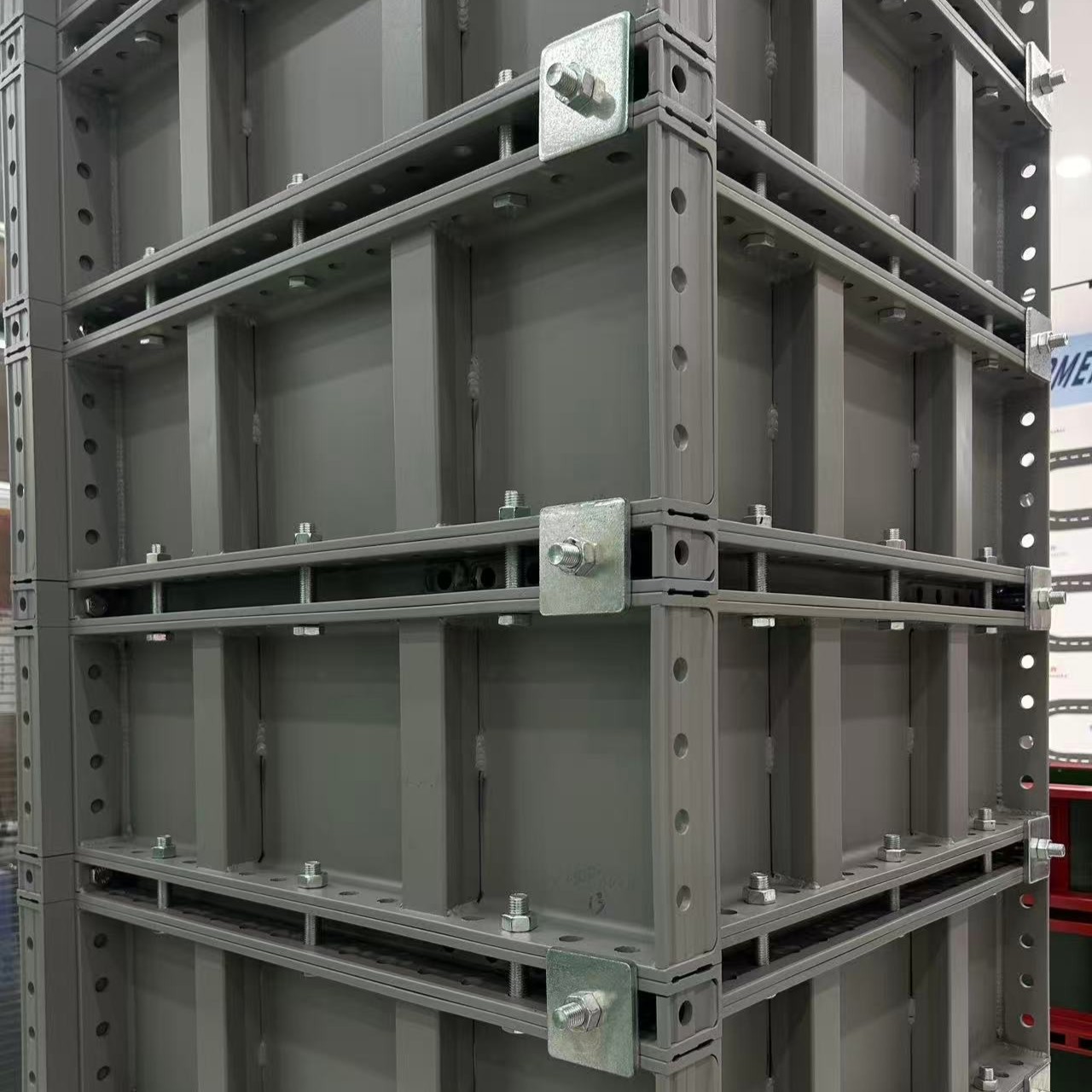

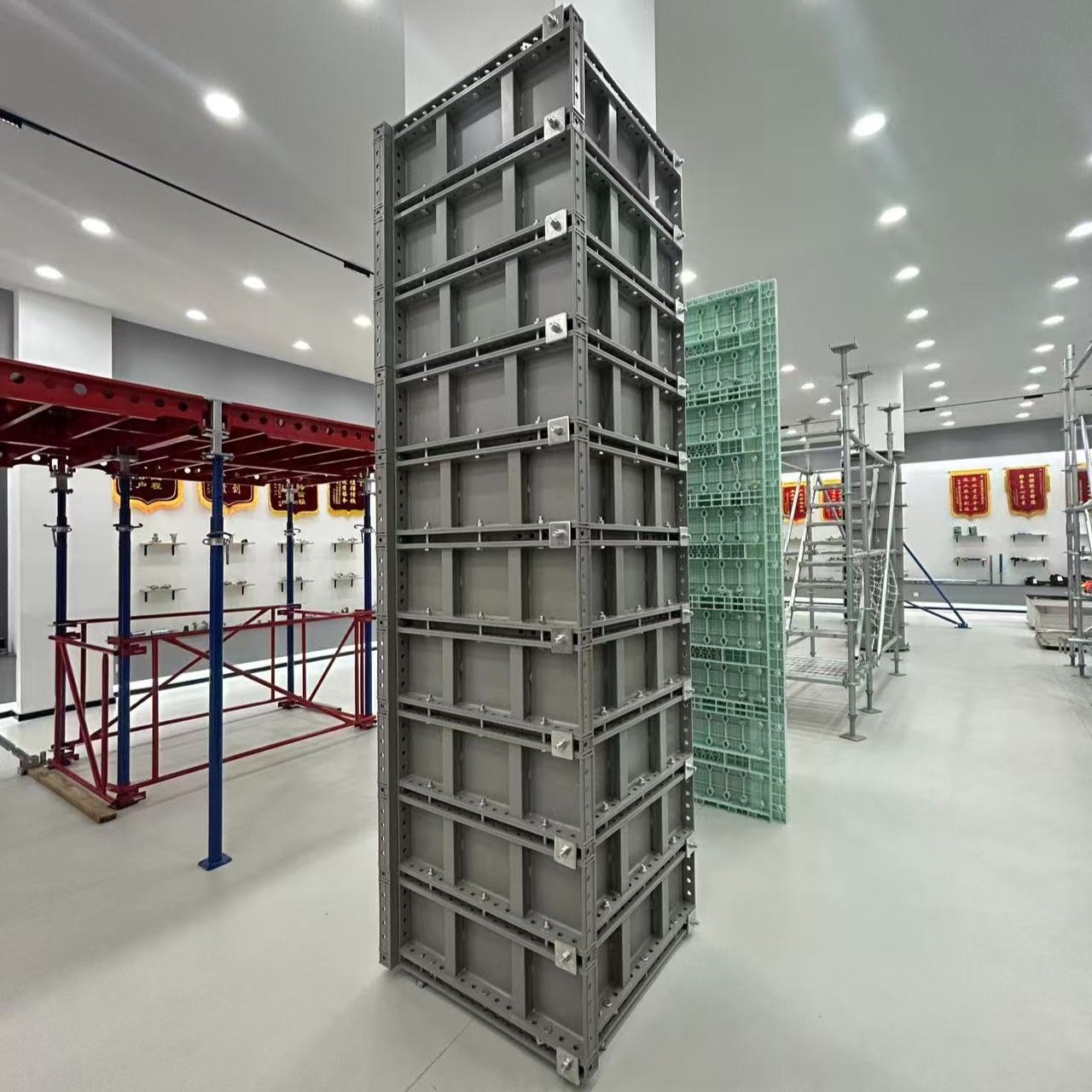

Heavy Duty Steel Frame Formwork System with High Load Resistance and Modular Interlocking for Smooth Surface Finish
Heavy Duty Steel Frame Formwork System with High Load Resistance and Modular Interlocking for Smooth Surface Finish
Specifications
MOQ :
50 piece
Modularity :
Interlocking system for easy assembly and disassembly
Place of Origin :
Hebei,China
Density :
1.03g/cm³-1.28g/cm³
Supply Ability :
1000 piece in 10 days
Final Product :
Wall
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product Life :
More than 1500 times
Payment Terms :
T/T
Applications :
Used in construction for walls, columns, beams, and slabs
Compatibility :
Compatible with steel reinforcement bars
Delivery Time :
10-30 workday
Panelsize :
Typically 600mm x 300mm or customizable
Price :
US $97.00 - 130.00/ Square Meter
Surfacefinish :
Smooth surface for high-quality concrete finish
Brand Name :
WKS
Product Name :
Steel Formwork System
Environmentalimpact :
Recyclable and eco-friendly material
Description
Heavy Duty Steel Frame Formwork for High Load Concrete Pouring
This Heavy Duty Steel Frame Formwork System is engineered for demanding concrete forming applications where structural integrity and load resistance are critical. Combining rigid steel frames with durable plywood facing, this system delivers reliable performance for walls, columns, slabs, and other concrete structures in high-rise buildings, infrastructure projects, and industrial facilities.
The robust frame construction withstands high concrete pressures without deformation, ensuring precise dimensional accuracy and a smooth concrete finish. With a modular design that allows quick assembly and disassembly, this system reduces labor time and accelerates project schedules while maintaining consistent quality across multiple pour cycles.
Key Advantages
  • Superior Load Resistance - Rigid steel frames withstand high concrete pressures without flexing or deflection
  • Extended Frame Life - Steel construction delivers lasting durability; plywood facing replaceable when worn
  • Quick-Release Connections - Pin-and-wedge system enables fast assembly without specialized tools
  • Precision Engineered - Consistent panel dimensions ensure accurate concrete shapes and tight joints
  • Versatile Configuration - Suitable for straight walls, corners, columns, beams, and custom profiles
  • Corrosion Protected - Surface coating provides resistance against moisture and job site exposure
Customization Capabilities
We offer full customization to suit your project requirements:
  • Panel dimensions: Custom sizes and shapes available
  • Plywood facing: Various thicknesses and surface finishes
  • Frame coating: Painted, powder coated, or galvanized
  • Connection hardware: Pin-and-wedge or bolt options
  • Accessories: Corner profiles, tie rods, walers, supports, and filler panels
  • Special configurations: Designed for curved walls, tapered columns, or unique structural needs
Technical Specifications
Parameter Specification
Frame Material High-Strength Structural Steel
Panel Facing Premium Plywood with Smooth Surface
Standard Sizes Wide range available (custom on request)
Frame Construction Welded steel with reinforced corners
Connection System Pin & wedge or bolt type
Surface Finish Corrosion-resistant coating
Panel Replacement Removable plywood facing
Load Capacity Engineered for high concrete pressures
System Components
  • Steel frame panels in various dimensions
  • Replaceable plywood facing panels
  • Inner and outer corner profiles
  • Connecting pins and wedges
  • Tie rods and tie holders
  • Adjustable props and shores
  • Filler strips and custom adapters
Typical Applications
  • High-rise building core walls and shear walls
  • Large concrete columns and structural piers
  • Heavy slab and beam formwork
  • Bridge piers and abutments
  • Retaining walls and foundation structures
  • Industrial facilities and power plants
Quality Assurance
  • Manufactured from certified high-grade steel
  • Precision welding for accurate panel alignment
  • Smooth plywood surface for quality concrete finish
  • Coating applied for corrosion resistance
  • Each panel inspected for flatness and dimensional accuracy
Lead Time & Minimum Order
  • Standard orders: 15-25 days
  • Custom projects: 25-40 days (depending on complexity)
  • Factory direct - competitive pricing
