MachineU > China Products > Construction & Real Estate > Formwork

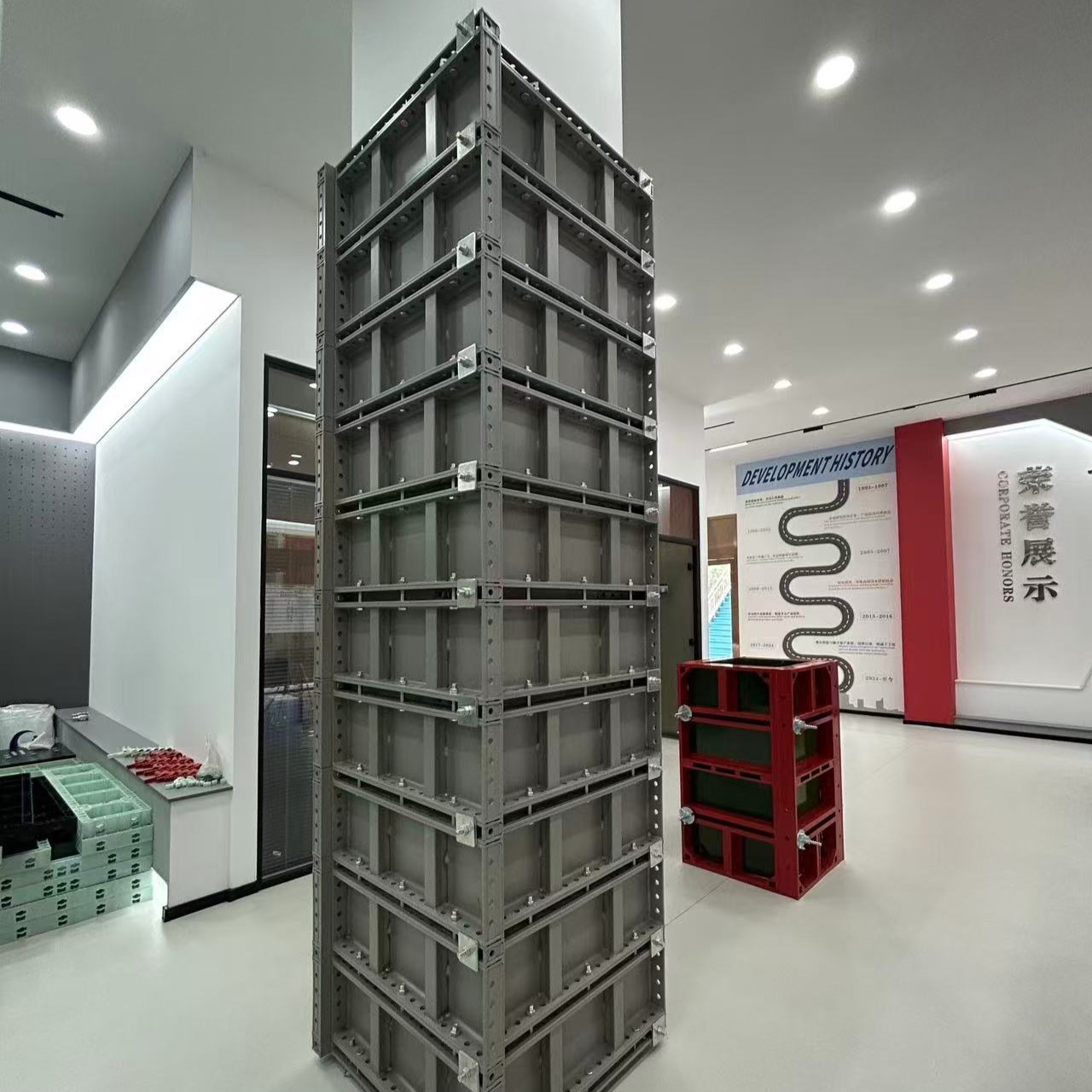

Best Custom Heavy Duty Steel Formwork System 500 Reuses
Best Custom Heavy Duty Steel Formwork System 500 Reuses
Specifications
Place of Origin :
Hebei,China
Density :
1.03g/cm³-1.28g/cm³
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product Life :
More than 1500 times
Payment Terms :
T/T
Applications :
Used in construction for walls, columns, beams, and slabs
Compatibility :
Compatible with steel reinforcement bars
Delivery Time :
10-30 workday
Panelsize :
Typically 600mm x 300mm or customizable
Supply Ability :
1000 piece in 10 days
Final Product :
Wall
MOQ :
50 piece
Modularity :
Interlocking system for easy assembly and disassembly
Price :
US $97.00 - 130.00/ Square Meter
Surfacefinish :
Smooth surface for high-quality concrete finish
Brand Name :
WKS
Product Name :
Steel Formwork System
Environmentalimpact :
Recyclable and eco-friendly material
Description
Best Custom Heavy Duty Steel Formwork System 500 Reuses
Product Overview

The Steel Formwork System is a heavy-duty concrete forming solution manufactured from high-strength Q235/Q355 steel. Engineered for demanding construction and infrastructure projects, this system delivers exceptional load capacity, dimensional stability, and long service life - ideal for tunnels, bridges, high-rise core walls, and mass concrete pours.

Key Advantages
  • High Load Capacity (80-120 kN/m²) - Safely handles heavy concrete pours and vibration loads
  • 500+ Reuse Cycles - Exceptional durability delivers lowest long-term cost per use
  • Zero Deflection - Rigid steel construction ensures precise concrete dimensions
  • Smooth Concrete Finish - Precisely ground panel surfaces produce plaster-free results
  • Weather Resistant - Suitable for all climate conditions, from extreme heat to freezing temperatures
Customization Capabilities

All products support project-based customization:

  • Panel sizes: 600×1200mm, 600×1500mm, 600×1800mm (custom available)
  • Panel thickness: 4mm, 5mm, 6mm
  • Steel grade: Q235B, Q355B, or as specified
  • Surface finish: Epoxy paint, hot-dip galvanized, powder coated
  • Custom radii for tunnel and curved structures
  • Non-standard corner and filler panels
Technical Specifications
Parameter Specification
Material Q235B / Q355B Steel
Panel Thickness 4mm, 5mm, 6mm
Frame Section 80×80mm / 100×100mm channel
Standard Sizes 600×1200mm, 600×1500mm, 600×1800mm
Weight 55-85 kg/m²
Load Capacity 80-120 kN/m²
Reuse Cycles 500-800 times
Surface Finish Epoxy paint / Hot-dip galvanized
Applications

High-rise building core walls and shear walls, large concrete columns and piers, tunnel and underground structures, bridge abutments and retaining walls, mass concrete foundations.

Lead Time & MOQ
  • Standard orders: 20-30 days
  • Custom projects: 30-45 days (depending on drawings)
  • Factory direct - volume discounts available
