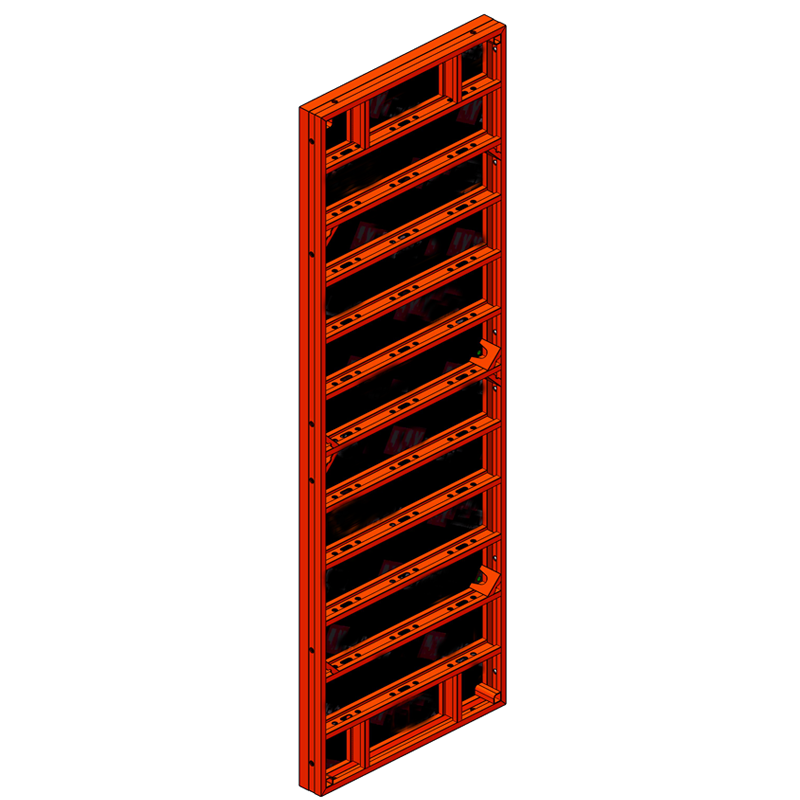

Best Custom Aluminum Frame Formwork Lightweight Reusable System
Best Custom Aluminum Frame Formwork Lightweight Reusable System
Specifications
Material :
Aluminum
Certification :
ROHS
Aluminum Frame Height :
100mm/120mm
Supply Ability :
1000 piece in 10 days
Max Size of Wall&Column :
1000mm*3000mm
Payment Terms :
T/T
Aluminum Frame Material :
6061-T6
Delivery Time :
10-30 workday
Max Size of Slab :
Plywood Panel Material 1800mm*2400mm
Plywood Panel Material :
Birch,poplar,eucalyptus,mixed or Plastic plywood
Price :
US $97.00 - 130.00/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Coating of aluminum frame :
Powder coating
Place of Origin :
Hebei,China
Maximum Concrete Pressure :
60kN/sqm
MOQ :
50 piece
Product name :
Aluminium Column Formwork
Brand Name :
WKS
Plywood Panel Thickness :
12mm/15mm/18mm
Description
Best Custom Aluminum Frame Formwork Lightweight Reusable System
Product Overview

The Aluminum Frame Formwork combines lightweight aluminum frames with high-strength plywood panels, delivering an ideal balance of durability, handling ease, and cost efficiency. Perfect for residential and commercial construction, this system allows one-person handling without cranes, significantly reducing labor costs and construction time.

Key Advantages
  • Ultra-Lightweight Frames - 8-12 kg per linear meter; one-person handling, no crane required
  • 100-150+ Frame Reuses - Long service life; plywood inserts easily replaceable
  • 30-40% Lower Cost - Compared to full aluminum panel systems
  • Flexible Panel Options - Accepts 18mm film faced plywood, ABS, or composite panels
  • Fast Assembly - Pin-and-wedge connection system; no specialized tools needed
  • Corrosion Resistant - Aluminum frames will not rust, suitable for humid environments
Customization Capabilities

All products support project-based customization:

  • Panel sizes: 600×1200mm, 600×1500mm, 750×1500mm (custom available)
  • Plywood thickness and grade options
  • Surface finish: Powder coated or anodized
  • Full accessory sets: pins, wedges, ties, props
  • Drophead early stripping mechanism available
Technical Specifications
Parameter Specification
Frame Material Aluminum Alloy 6063-T5 / 6061-T6
Panel Material 18mm Film Faced Plywood / ABS / Composite
Standard Sizes 600×1200mm, 600×1500mm, 750×1500mm
Frame Weight 8-12 kg/m (10-15 kg per panel)
Frame Reuse Cycles 100-150+ times
Load Capacity 50-70 kN/m²
Connection Type Pin & wedge / Bolt system
Surface Finish Powder coated / Anodized
Applications

Wall and shear wall formwork, slab and floor formwork, column and beam formwork, high-rise residential buildings, commercial real estate projects.

Lead Time & MOQ
  • Standard orders: 15-20 days
  • Custom projects: 20-35 days (depending on drawings)
  • Factory direct - competitive pricing
