Commercial Grade Aluminum Frame Formwork is designed specifically for high-rise building projects, offering superior performance and efficiency in concrete construction applications.

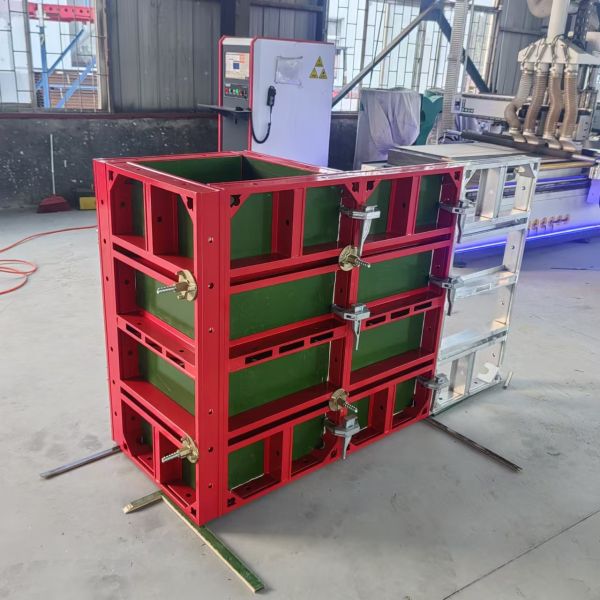

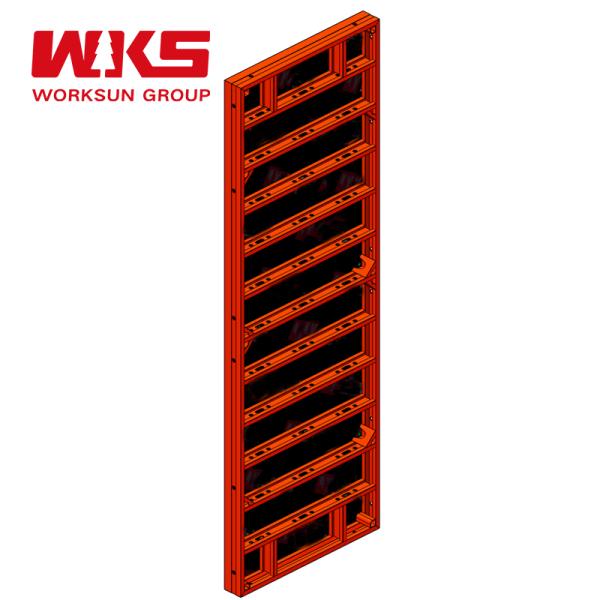

Aluminum Frame Formwork is a high-performance, reusable shuttering system designed for cast-in-place concrete walls, slabs, and columns. It features a rigid aluminum alloy frame combined with a durable plywood face, offering superior strength-to-weight ratio and faster assembly compared to traditional steel or timber formwork.

• Lightweight & Fast Assembly: The aluminum frame is significantly lighter than steel, enabling easy manual handling and reducing crane dependency. A simple pin-and-wedge connection system allows for rapid installation and stripping by semi-skilled labor, cutting cycle times.
• High Load Capacity & Stability: Engineered with reinforced ribs and sturdy bracing, the system safely withstands fresh concrete pressures up to 60-70 kN/m², ensuring dimensional accuracy and preventing blowouts.
• Cost-Effective Reusability: The hybrid design combines a long-life aluminum frame (reusable 200+ times) with replaceable plywood panels, offering excellent cost efficiency and adaptability for diverse project layouts.

• Frame Material: 6061-T6 / 6082-T6 Aluminum Alloy
• Panel Face: 15-18 mm High-Density Film Faced Plywood
• Standard Sizes: Modular widths from 300 mm to 1200 mm; common heights 2400 mm, 2700 mm, 3000 mm
• Surface Treatment: Powder-coated or anodized frame for enhanced corrosion resistance

Our system provides superior flexibility for complex projects where pure aluminum panel systems are less economical. With a focus on interchangeable components and on-site technical support, we help contractors achieve faster cycle times, reduce total formwork costs, and maintain high-quality concrete finishes without the high initial investment of full aluminum systems.

• Having advanced production equipment and 20 years of production experience.
• A team of engineers with an average of about 10 years of experience ensures smooth progress of engineering projects.
• We can provide full cycle project services to ensure the smooth application of aluminum frame formwork.

• Free consultation service: You provide us with construction drawings to evaluate which formwork system solution is more cost-effective and provide a detailed quotation list for you.
• Full process one-on-one project team service: Each project will have an independent team to provide you with professional engineering solution services, business communication services, and on-site construction management services.
• Project emergency plan service: The project scheme formulation process will cautiously consider the emergency handling of aluminum alloy formwork system products during use.
