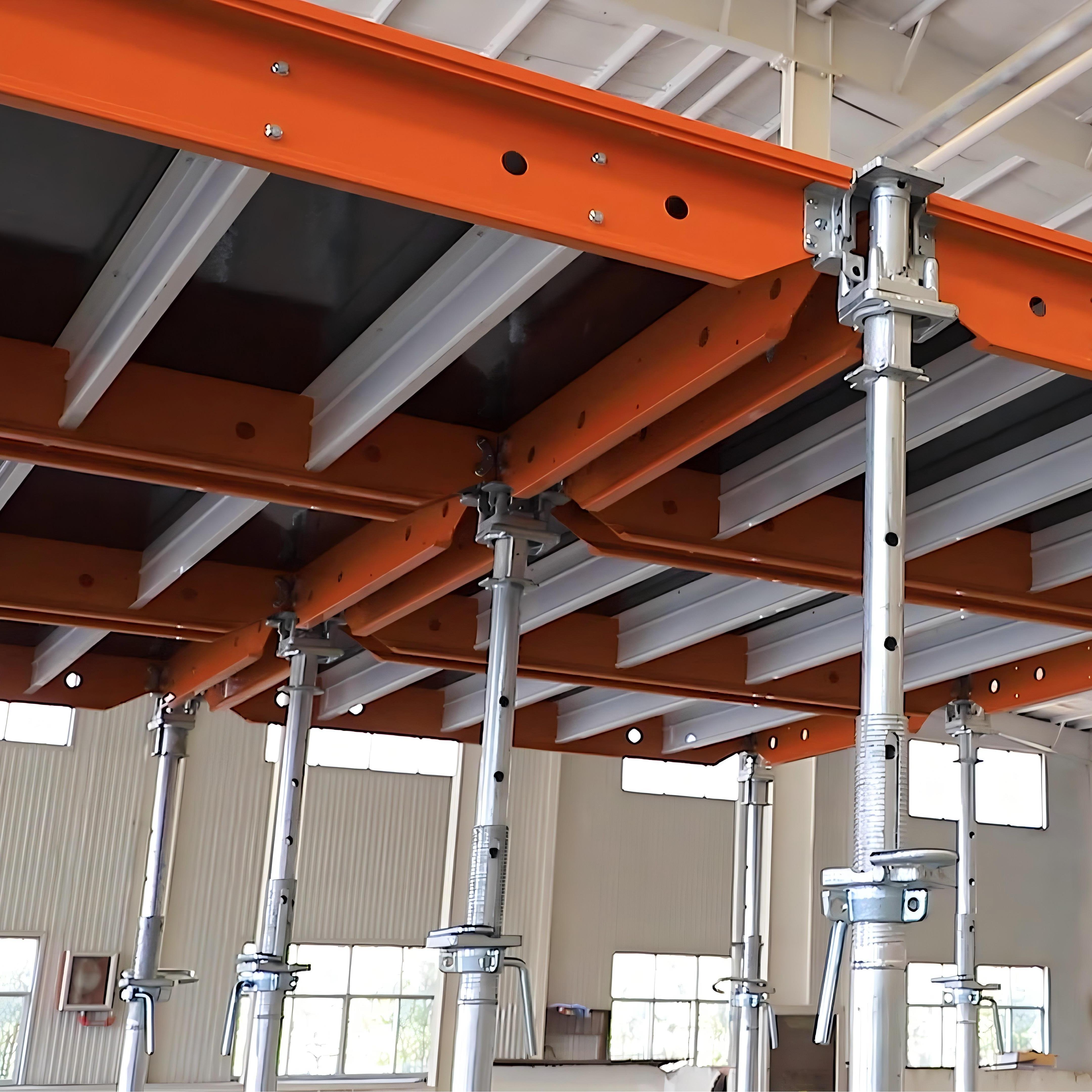

Best Custom Alu Skydeck Formwork Drophead Slab System
Best Custom Alu Skydeck Formwork Drophead Slab System
Specifications
Certification :
ROHS
Aluminum Frame Material :
6061-T6
Payment Terms :
T/T
Weight :
24kg/sqm
Delivery Time :
10-30 workday
Plywood Panel Material :
Birch,poplar,eucalyptus,mixed or Plastic plywood
Price :
US $85.00 - 90.00/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Aluminum Frame Height :
100mm/120mm
Coating of aluminum frame :
Powder coating
Supply Ability :
1000 piece in 10 days
Max Size of Slab :
Plywood Panel Material 1800mm*2400mm
Place of Origin :
Hebei,China
Material :
Aluminum Alloy
MOQ :
50 piece
Plywood Panel Thickness :
12mm/15mm/18mm
Brand Name :
WKS
Product name :
Alu Skydeck Formwork System
Feature :
Easily Assembled
Description
Best Custom Alu Skydeck Formwork Drophead Slab System
Product Overview

The Alu Skydeck Formwork System is a high-efficiency aluminum panel slab formwork solution widely used in residential and commercial real estate projects. With the drophead early striking mechanism, panels and beams can be removed just one day after concreting, while dropheads continue supporting the slab until it reaches full strength. This dramatically reduces on-site formwork inventory and accelerates floor cycle times.

Key Advantages
  • Ultra-Lightweight Components - Panel and main beam weigh only ~15.5 kg each; one-person handling, no crane required
  • Drophead Early Stripping - Formwork removed after 24 hours with a single hammer blow; lowered by 60mm
  • Low Prop Density - Only 0.29 props per m² of slab - more open workspace and easier material handling
  • Thick Slab Capability - Supports slabs up to 109 cm thick (150cm main beam + 75cm panel configuration)
  • Fast & Systematic Assembly - Simple sequence; unskilled workers can learn quickly
Customization Capabilities

All products support project-based customization:

  • Panel sizes: 150×75cm, 150×50cm, 150×37.5cm, 75×75cm, etc.
  • Main beam lengths: 375cm, 225cm, 150cm
  • Aluminum props: Various height ranges (800mm - 6250mm)
  • Surface finish: Powder coated (standard)
Technical Specifications
Parameter Specification
System Type Aluminum Panel Slab Formwork
Panel Sizes 150×75cm / 150×50cm / 150×37.5cm / 75×75cm / 75×50cm / 75×37.5cm
Main Beam Lengths 375cm / 225cm / 150cm
Component Weight ~15.5 kg (panels & main beams)
Area per Support 3.45 m²
Prop Density 0.29 props per m²
Slab Thickness Up to 109 cm
Drophead Drop 60mm (one hammer blow)
Platform Load 150 kg/m²
Applications
High-rise residential floor slabs, commercial building concrete floors, parking garage slab construction, industrial facility flooring, any project requiring rapid floor cycle times.
Lead Time & MOQ
  • Standard orders: 15-25 days
  • Custom projects: 25-40 days (depending on drawings)
  • Factory direct - competitive pricing
