SQM Ceramic Wirewound Resistors Vertical Mount 2W-10W 150PPM
SQM Ceramic Wirewound Resistors Vertical Mount 2W-10W 150PPM
Specifications
Brand Name :
JDC
Model Number :
SQM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
5000PCS
Price :
$0.06-$0.35
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
1,000Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in blister & Carton
Rated Power :
2W-10W
Resistance Range :
0.1R-100KR
TCR :
150PPM
Description

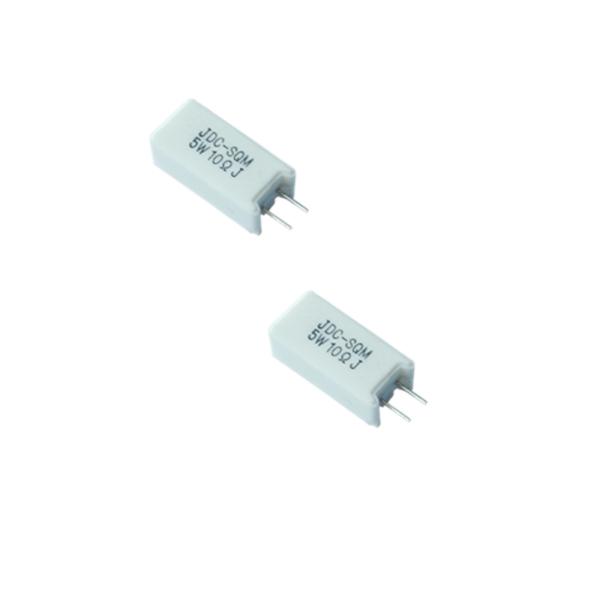

Ceramic Wirewound Resistor, Vertical Mount, SQM

SQM Ceramic Wirewound resistors feature a resistance range from 0.05Ω to 1KΩ, while SQP Cement Film Resistor have a resistance range of 100Ω to 50KΩ.

It has ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.

Standard tolerances for both devices are to ±5%, ±2% and ±1% are customizable, with TCRs ≤300ppm.

Features:

  • High performance for power required applications.
  • Low cost, space saving, RoHS compliant with 100% lead free.
  • High power to size ratio, Special inorganic potting compound.
  • Ceramic case provide high thermal conductivity in a fireproof package.
  • Direct mounting on printed circuit board, Circuit board lock-in mounting tabs available.

Dimensions:

Type Dimension (mm) Resistance Range (Ω)
SQM H±1.5 W±1 S±1 Wirewound Metal Oxide Film
2W 20 12 8 0.05-100 100-50K
3W 25 12 8 0.05-100 100-50K
5W 25 13 9 0.05-500 100-50K
7W 39 13 9 0.05-500 500-50K
10W 51 13 12 0.05-1K 1K-50K
10WS 35 16 12 0.05-1K 1K-50K

Applications:

1. Motor controllers, Automotive applications.

2. Power electronics circuits, Power supplies, Voltage dividers.
