High Power Ceramic Wirewound Resistors , 40W 80W Inverter Braking Resistor
High Power Ceramic Wirewound Resistors , 40W 80W Inverter Braking Resistor
Specifications
Brand Name :
JDC
Model Number :
BKG
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
US$0.8/PCS-US$2.2/PCS
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
500Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in blister & Carton
Rated Power :
40W, 80W
Resistance Range :
0.1R-1K
TCR :
≤250PPM
Description

High Power Ceramic Wirewound Resistor for inverter braking

Features:

  • High load power
  • Low TCR and noise
  • Good heat dissipation and high insluation

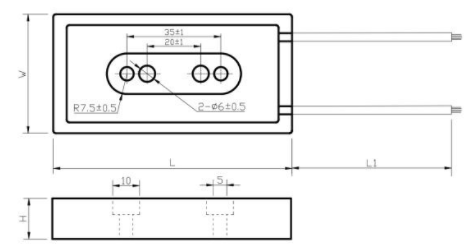

Dimensions:

High Power Ceramic Wirewound Resistors , 40W 80W Inverter Braking Resistor

Type Rated power (w) Resistance range(Ω) Tolerance ±(％) Max Wording Voltage(V)
Max Overload
Voltage(V)		 外形尺寸
Dimension (mm)
L±1.5 W±1.0 H±1.0 H±3.0 W1±0.2
BKG 40 0.1～1K 1(F)
2(G)
5(J)
10(K)		 150 500 59 26 14 24 0.65
BKG 80 0.1～1K 150 500 90 45 15 24 0.65

Electrical Performance:

Inspection item Requirement Test method
Solder ability Soldering Area ≥90％ 260±5℃ ,2±0.5 seconds
Withstand voltage No breakdown, arc flying phenomenon 500VAC,5s
Temperature coefficient ≤±250×10-6/℃ Evironment temperau+100℃
Resistance to sold,heat △R≤±(1％R+0.05Ω) 350±5℃ ,3.5±0.5 seconds
Over load No visible damage, △R≤±(1％R+0.05Ω) 10 times,5s
Terminal tensile strength No visible damage, △R≤±(1％R+0.05Ω) 10N,10s
Temperature Change No visible damage, △R≤±(2％R+0.05Ω) -55℃~+200℃,3 Cycles
Vibration No visible damage, △R≤±(2％R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5％R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10％R+0.1Ω) 25℃,Ur,1000h
