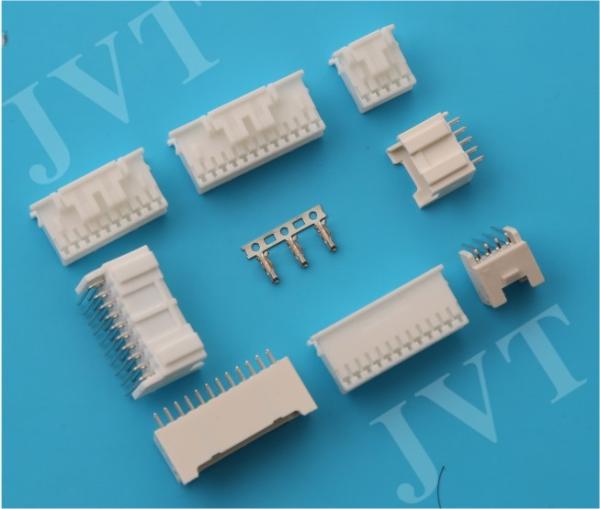

PCB Wire To Board Connector With Secure Locking Device
PCB Wire To Board Connector With Secure Locking Device
Specifications
Brand Name :
JVT
Model Number :
JVT2038
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Cross :
JST PAD connector series
No.of Row :
dual row
Plating :
tin plated
contact material :
brass
Description

Equivalent of JST B10B PADSS F 2.0mm pitch 10 contact double row PCB wire to board connector with secure locking device

2.0mm pitch double-row connector with secure locking device
*Secure locking device
The housing has a locking device to securely hold the header, preventing accidental disconnection because of external forces that might result from the routing of wires during assembly process oe of vibration.

Specifications :

Pitch: 2.0mm

Poles: 2-32

Applicable wire: AWG#22-28

Voltage rating: 250V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 800V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Payment &shipping Terms :
Minimum Order Quantity: 1000 PCS
Shipping terms:By express or by sea
Delivery Time :7-10 working days
Packaging Details :PE bag packing +outer carton

TARGET MARKET

Mainboard

Computer

Refrigerator

Control panel
