Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing
Specifications
Brand Name :
JVT
Model Number :
JVT 1501
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
500000pcs per day
Delivery Time :
6-8 working days
Packaging Details :
Tape&Reel
Material :
PA66 UL94V-0
Poles :
2-15
Pitch :
1.5mm
Color :
White
Voltage rating :
350V AC,DC
Current rating :
3A AC DC
Description

Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing

JVT offer a complete range of board to board and wire to board connectors including : pin

header,mini jumpers,female header,PCB Multipole and housing a wide range of applications including : industrial ,Medical and automotive.

All are offered with small moq's,the majority being stocked items.

Specification​:

Category PCB Connectors Wire to Board
Material Nylon 66 UL94V-0
Pitch 1.5mm
Poles 2-15
Contact resistance 20MΩ
Voltage rating 350V AC/DC
Current rating 3A AC DC
Withstand voltage 500V AC/minute
Working temperature -25°C +85°C
Contact resistance 1000MΩ Min
Finish Tin-plated
Terminal thickness 0.15±0.01mm
Samples free

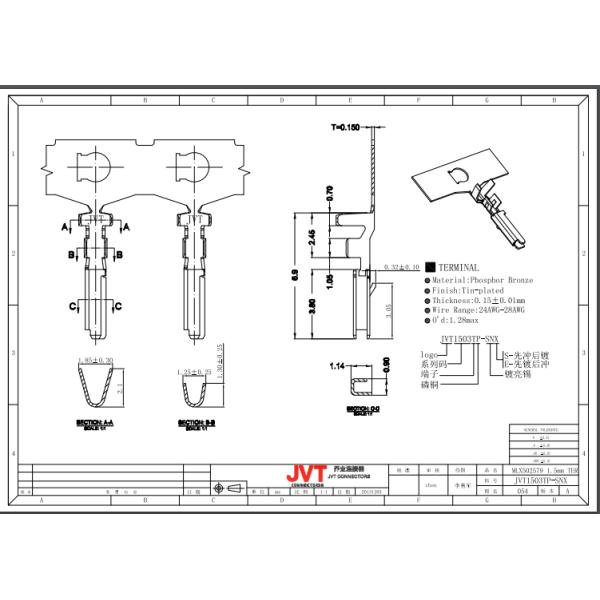

Drawing:

Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing

Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing

Payment Details:

Payment Terms:T/T

Minimum Order:1000 Pieces

Service:

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

Equipment:

Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing

Pitch 1.5mm , 2-15Pin, PCB Wire to Board Connectors , Tin-plated, white housing

JVT Competitive Advantages:

♦ Products with Good Performance

♦ High-Efficiency Lead Time

♦ Friendly Service

♦ Experienced Staff

♦ International Approvals

♦ Competitive Price
