Qipang large TC1250 spool winding machine coiling equipment made in China

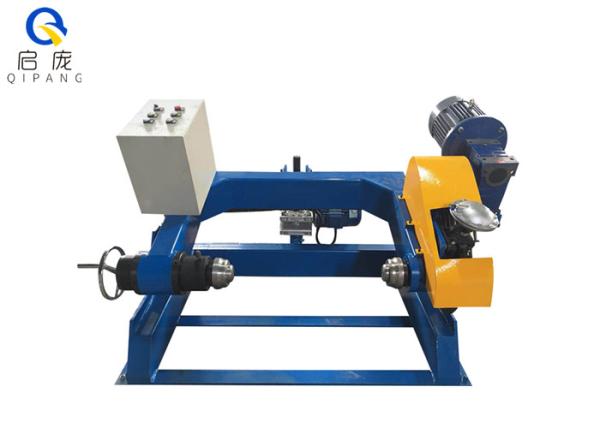

Φ630-Φ1000mm active pay-off machine

1. Adapt to bobbin flange OD diameter: Φ630-Φ1000mm, Φ1000mm, overall
2. width 475-750mm, inner hole 56/80
3. Top shaft mode: no shaft top cone pneumatic top tight
4. Pay-off speed: MAX200 m / min
5. Clamp the bobbin: 0.75KW electric screw lift
6. Power: 4KW motor drive spool release line
7. Brake: 10KG electromagnetic brake
8. Maximum load capacity: 3000 kg

Vertical tension storage Accumulator/Dancer

1. Total height of 2 meters;
2. The storage line volume is 0-15 meters, and the storage line wheel is Φ400mm(4 groups + 3 groups);
3. Adapt to the wire diameter: 0.5-10mm2 hard wire, Ф15mm soft wire;
4. Guide wheel material: aluminum alloy material, surface hardening treatment;
5. Control mode: The sensor gives a 0-10V voltage signal to control the speed of the line.

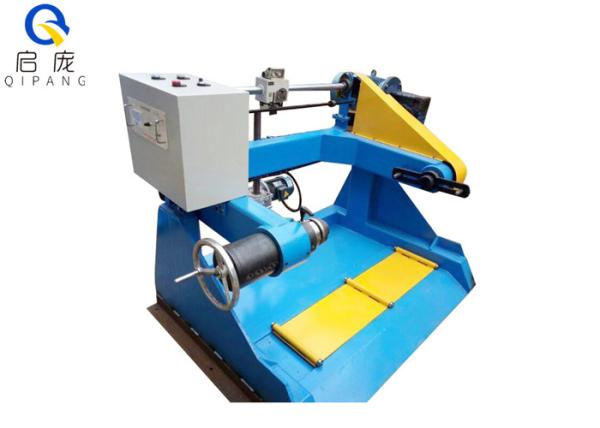

400-1250 spool winding machine coiling equipment

1. Adapted to bobbin flange OD diameter: PN400-PN1250, coil width 280-800mm,
2. inner hole diameter Φ56mm
3. Applicable line speed: 200m/min
4. Top shaft mode: no shaft top cone
5. Clamp the bobbin: electric screw lifts, the upper and lower limits are safe and reliable
6. Cable: GP30 rolling ring drives, adjustable pitch. Wire winding : 10N.M torque motor winding wire

Business Scope:

Our company mainly products roller guides ,rolling ring drives ,wire take up machine, wire coil winding machine ,automatic coiling and packaging machine, TC1250 spool winding machine coiling equipment, microcomputer automatic rolled plate machine ,wire straightener , wire straightening and cutting machine, etc. (Some as follow picture show)

After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.

Company Profile:

Established in 2009, Shanghai Qipang Industrial Co., Ltd. has a history of 11 years. It is a professional manufacturer of cable winding equipment. It has high-quality R&D management and production personnel. It has many years of rich production experience and strong production. production ability. The company's headquarters is located in Shanghai, China, which is China's largest industrial, economic and financial center.

The company has developed from the production of a single rolling ring drive, wire roller device to large cable winder, coil winding machine, small spool winding machine, wire pay-off stand, textile yarn winding machine, spool winding machine coiling equipment, microcomputer coil winding packaging machine, wire straightening machine, wire straightening and cutting machine, etc. The series is equipped with advanced production equipment, and the company has become a well-known professional equipment manufacturer in the industry.

FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.

Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q:What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
