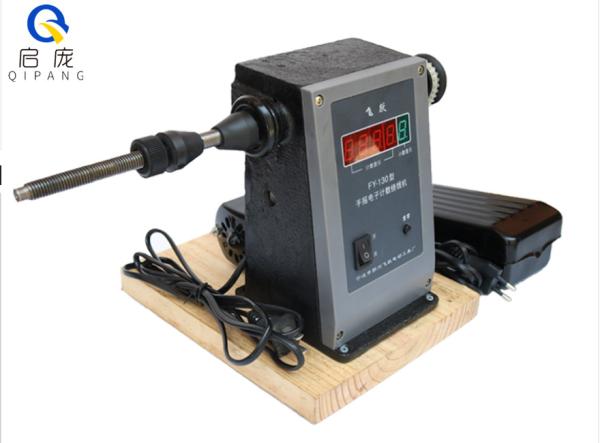

Advanced flying 130 hand-cranked electronic counting winding machine supplier

The electronic counting winding machine adopts manual transmission, two speeds, electronic counting display, accurate counting, flexible operation, stable performance, clear display, convenient use and power-off data protection function.

(FY-130 counting range is 0-9999.9 times, and counting error is less than 0.1 times.)

Transmission system:

This electronic counting winding machine is for manual use and has two speeds. Both the manual gear and the winding shaft can be installed with a handle. The manual gear is 57 teeth, the bridge driving wheel is 19 teeth, the driven wheel is 38 teeth, and the spool gear is 18 teeth. The transmission speed ratio is 1: 1 when the rocking handle is installed on the hand-cranked gear, and the transmission speed ratio is 1: 1 when installed on the winding shaft.

Instructions:

• This electronic counting winding machine should be installed on a relatively solid workbench. There are 4 fixing holes on the bottom plate of the winding machine, which are used to fasten the installation between the winding machine and the workbench.

• Connect the unit to a 220V AC power socket, turn on the power switch, and press the zero reset button to clear the previous data. You can work after the display is zero.

Precautions:

• Please strictly control the power supply voltage at 220V ± 10%.

• Photoelectric sensors are installed on the main shaft of the machine. It is strictly forbidden to hit both ends of the main shaft, and please strictly control the axial series movement of the main shaft, otherwise the photoelectric sensor will be damaged, causing counting errors or not counting.

• If there is an error, please check whether the groove of the photoelectric sensor and the turntable inside the main shaft of the fuselage are detached from each other, or whether they are rubbed or dusty.

• The circuit of this machine is an electronic circuit. Please keep away from strong electromagnetic interference such as welding machines, electromagnets and radio transmitting equipment when working to avoid affecting the normal counting.

• This machine is a manual winding machine. It is strictly forbidden to drag with a motor.

Note:

The machnie is manual hand ,so it isn't charged,if you want to improve work efficiency, you could modify to electric.

It can only work with 220v 50hz .if you ony have 110v ,please prepare a110v to 220v voltage converter by yourself.

The machine can be equipped with a motor, rotation rate is 500 rpm

Business Scope:

Our company mainly products roller guides ,rolling ring drives ,wire take up machine, electronic counting winding machine ,automatic coiling and packaging machine, microcomputer automatic rolled plate machine ,wire straightener , wire straightening and cutting machine, etc. (Some as follow picture show)

After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.

Company Profile:

The company has developed from the production of a single rolling ring drive, wire roller device to large cable winder, coil winding machine, small spool winding machine, wire pay-off stand, textile yarn winding machine, microcomputer coil winding packaging machine, wire straightening machine, wire straightening and cutting machine, etc. The series is equipped with advanced production equipment, and the company has become a well-known professional equipment manufacturer in the industry.

FAQ:

Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.

Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
