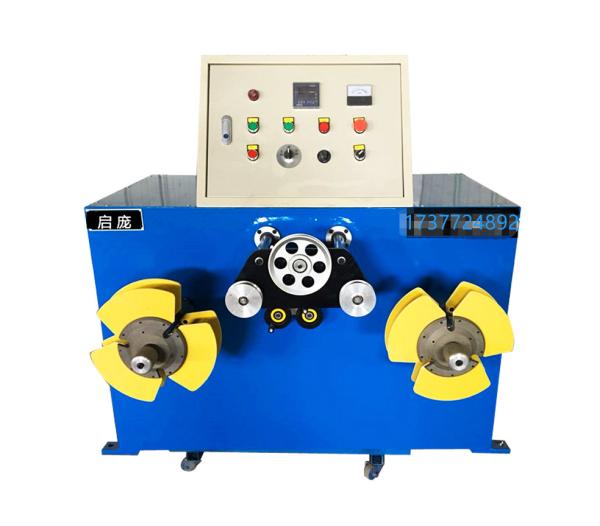

Qipang Wire Take Up Machine Coiling machine type winding machine Coiling line on spool​

Application:
This equipment is used for the circling and bundling of flat line , such as sheathed cable , parallel cable . audio cable. Etc.
Main Features

1. The swell-diminution and demount can be finished within 2-3 seconds.The bundle can be easily packed and take out The back board can be adjusted to realize the bundling height from 40-100mm (Universal bearing frame is optional configured for different line standard);
2. The guide wheel which is the latest adjustable aluminum combination wheel,can realize line adjusting from 5 -17mm;
3. Driven cable composing device is used for precision cable composing,The adjustable guide wheel base (one in front and one in back) are installed to ensure the stability of the process;
4. The mufti-function cable circling equipment can switch working style . Start up the driven cable composing device with the SWITCH when circling flat cable .and turn off the switch when circling round cable;
5. The equipment can be used without pay-off shelves.For some customers who don' t meed circling or cable falling directly . it is also applicable.

Application:

This equipment is used for the circling and bundling of 10-50mm single cable and the round sheathed cable which the diameter is less than 200mm .

Technical Specs:

1. Pay-off shelve : end bearing,electronic elevator

2. Electronic elevator : deceleration motor 2HP ( 1.5KW )

3. High-accuracy meter counter : 0.1%

4. Max.rotative speed:300r/min

5. Power of the machine : 5HP ( 3.7KW)

6. Control system;frequency conversion + SCM integration system

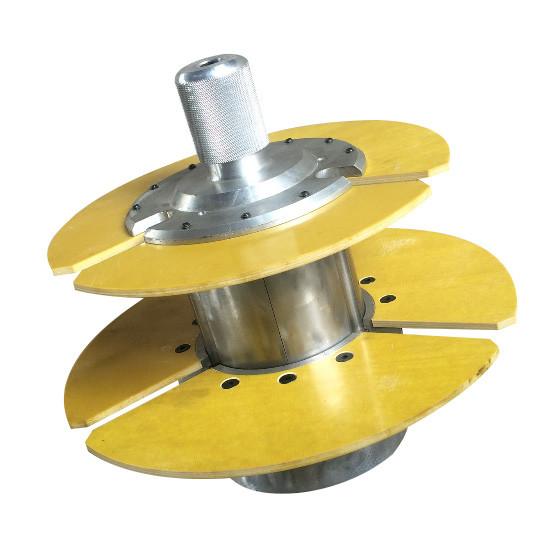

7. Circling wheel: Ф 130mm - Ф 250mm ( optional configuration in this range )

8. Pay-off Wheel: Ф 1250mm- Ф 1600mm(optional configuration in this range)

9. Braking system:aerodynamic braking control

10. Applicable range:10- 50mm single cable and the round sheathed cable which the diameter is less than 20mm

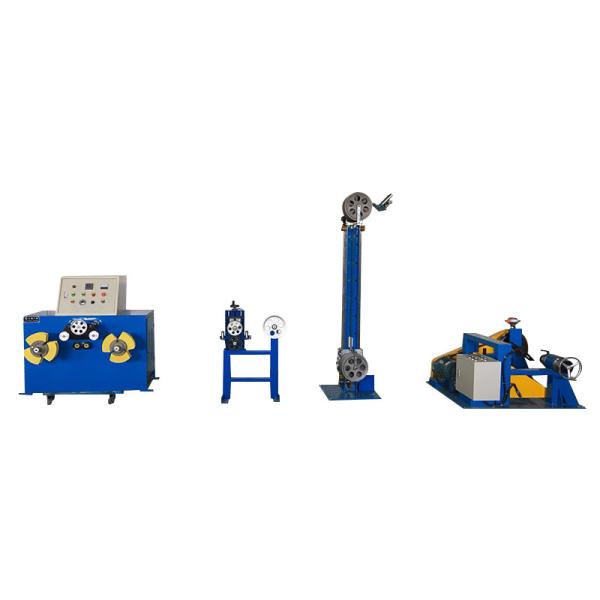

Product show

QP-φ1600 large section automatic loop forming machine
Application:
This equipment is used for the circling and bundling of big section cable (10- -240mm²),and it can work with haulage machine Meter counter is also configured
Technical Specs:
1.Max, rotative speed:300r/min
2.Power of the host machine;5HP (3KW)
3.Power of the frequency conversion:4KW
4.High- accuracy meter counter:0.1%
5.Width of circling:50- 250mm(adjustable)
6.Diameter of circling bearing; φ180- -250mm(adjustable)
7.External diameter of circling wheel:φ700mm ( customizable )
