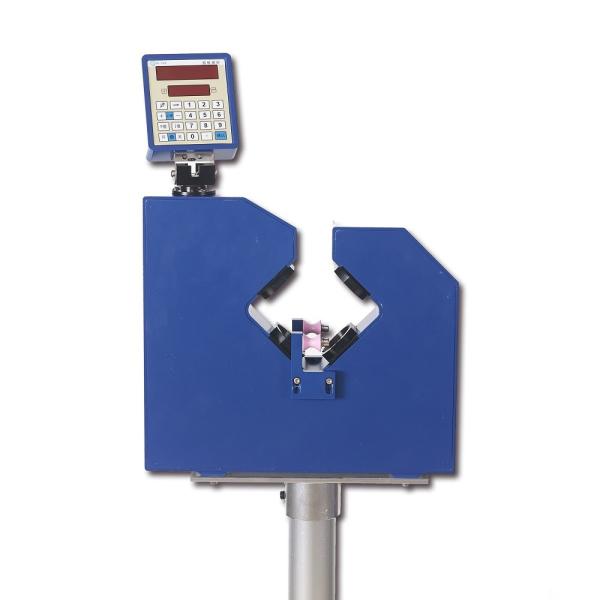

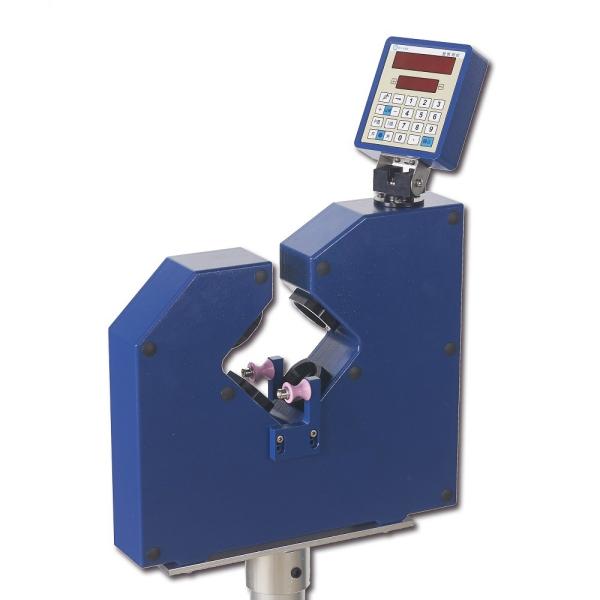

QP3040XY Laser Bidirectional Diameter Gauge/Out-of-roundness Detector

Features:
Suitable for metal wire, glass tube, rubber tube, wire and cable, etc.
It can be connected to PLC, industrial computer, special controller, and large screen display.
The length of the diameter gauge can be extended.
It can be equipped with PROFIBUS-DP and MODBUS converter to connect with PLC and industrial computer.
Can be equipped with remote controllers DDC-II, DDC-III, DDC-5, automatic feedback control of the extruder and tractor to control the outer diameter within the tolerance range, improve product quality and reduce consumption.
Transparent body can be measured.

Advantages of laser diameter gauge:
1. Realize online automatic detection of outer diameter size.
2. It is a non-contact measurement, no damage to the tested part.
3. Realize high-precision size measurement.
4. Realize accurate measurement of easily deformable and high temperature objects.

Working principle

The laser diameter gauge uses infrared or incandescent lamp projection type to measure the wire and cable for detection.
The receiving device is a dual receiver, which can effectively ensure the accuracy of the detection result. When the detection object passes through the detection head, the light quantity of the receiver is a fixed value. If the appearance of the wire is convex or concave, the amount of light received by the receiver will change. By changing the amount of light, the convex or concave defect can be detected.

Technical parameters

Company profile

Shipping and Packing

FAQ

Q1: Are you a factory or trading company?

We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?

With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.

Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.

Q3:How about your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q4: What are your payment terms?

100%TT or prepaid 50% , balance 50% before shipping.
