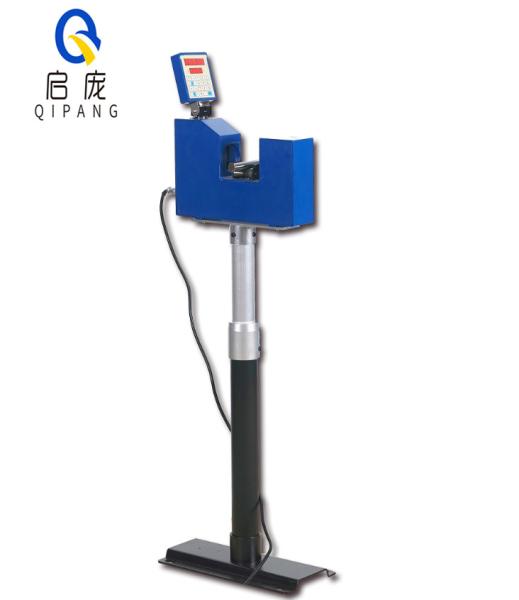

AC 220V low power Affordable Integrated Laser Diameter Gauge

The integrated laser diameter gauge is a special model specially designed and manufactured by our company for companies with low precision requirements. It adopts laser scanning technology and has the characteristics of large measuring range, long service life and stable performance. Mainly used for non-destructive online measurement and control of the outer diameter of various wires, cables, optical fiber cables, various pipes and rods.

Performance

1. Scanning speed
1800 times/sec
2. Data processor and data storage
High-performance DSP processor can be used for high-speed and high-precision calculations; large-capacity FLASH memory is used to facilitate data recording.
3. Communication interface
The RS232 and RS485 communication interfaces can be connected to the computer for online detection, and the stored measurement records can also be transmitted to the computer.
4. Continuous measurement, data retention, data storage
Continuous measurement can observe the moving object, the data is easy to record, and the data can be stored according to the position, line position and time.
5. Data parameter setting
The data parameters can set the nominal value and tolerance of the measured object; out-of-tolerance alarm prompt; the measured machine position, line position, and process standard settings.

6. Environmental requirements

The air does not contain corrosive gas, serious volatile oil, water vapor and dust.

Advantages:

Using laser scanning technology, the measurement range is large;
Using SMD circuit, small size, light weight, strong anti-interference;
High measurement accuracy and good repeatability;
RS485 communication interface, which can communicate with PLC and PC online (including MODBUS communication protocol);
Using high-precision F (θ) mirror, the swing of the measured object does not affect the normal measurement;
Not affected by external stray light and smoke; measurement stability.

Technical parameter:

The laser diameter gauge is now an indispensable measuring tool for measuring rolled products, steel pipes, and round products. It can achieve continuous high-precision measurements at the fastest speed, and convey the most accurate measurements to the staff at the fastest speed. You can also set data reminders, the first time the data is not reached or exceeded, it will be reminded by the display screen and the alarm sound.
