55kw 1500rpm Pvc Traction Cable Haul Off Machine
55kw 1500rpm Pvc Traction Cable Haul Off Machine
55kw 1500rpm Pvc Traction Cable Haul Off Machine
55kw 1500rpm Pvc Traction Cable Haul Off Machine
Specifications
Brand Name :
QIPANG
Model Number :
TQD500
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1
Price :
RMB/USD Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40/Week
Delivery Time :
7-25days
Packaging Details :
Wooden box
Product name :
Cable Production Equipment For Pipe Pvc Traction Wire And Cable Haul Off Machine TQD500
Usage :
Plastic Extrusion
Tractive Force :
200~15000kg
Belt Grip Length :
520-5000mm
No. of Cylinder :
3-14pairs
Motor Speed :
1500rpm
Core Components :
Engine, Gearbox
Belt Width :
70-240mm
Motor Power :
3-55kw
Weight :
2TONS
Description

Cable Production Equipment For Pipe Pvc Traction Wire And Cable Haul Off Machine TQD500

I.Equipment Application: Mainly used for various cable production lines for single machine or front and rear double traction.

II.Application:

1. The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel.

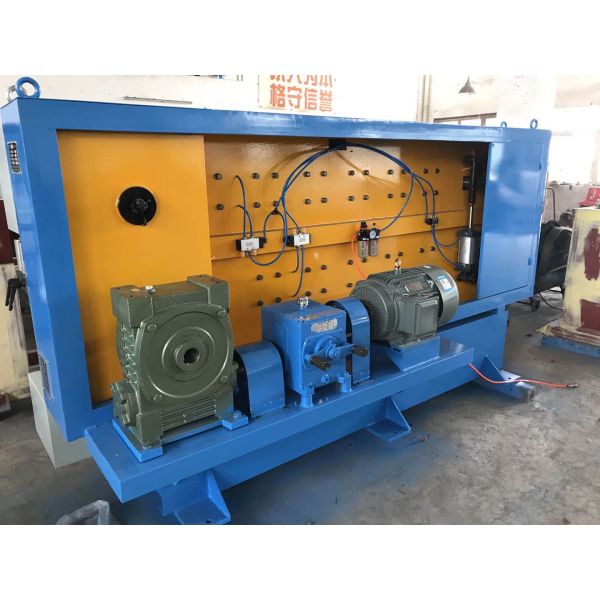

2.The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower
helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z
4. DC motor or variable-frequency motor for users to choose. 4. With electronic meter, it can display the line speed and meter length in time.
5.It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding
production lines.
6. The tension tractor adopts magnetic powder tension control, which is used for the traction of the insulation
and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink
after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special
processes and effectively improve the repeated service life of the track
Model Max traction force(kg) Cable through outer diameter(mm) Track contact length(mm) Track width(mm) Number of cylinder(pair) Traction speed
TQD300 300 ≤Ø 15 390 60 3 200
TQD500 500 ≤Ø 30 850 80 3 150
TQD800 800 ≤Ø 40 1150 80 4 120

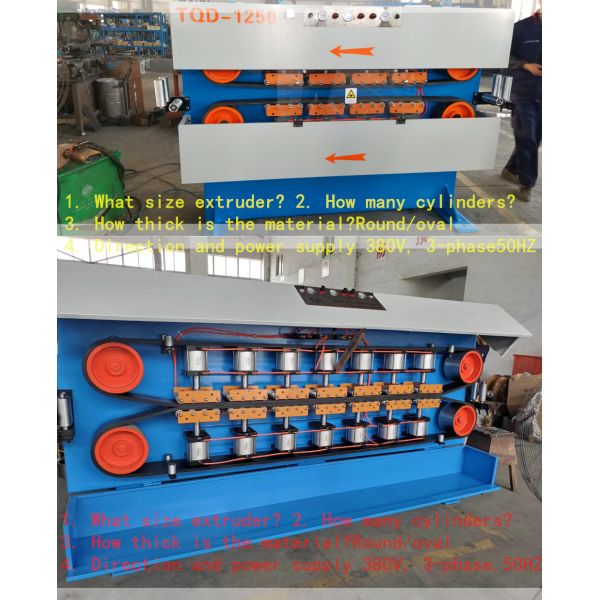

TQD1250 1250 ≤Ø 60 1600 120 5 100
TQD1600 1600 ≤Ø 80 1900 120 6 80
TQD2000 2000 ≤Ø 100 2300 120 7 80
TQD2500 2500 ≤Ø 120 2500 140 8 60
TQD3200 3200 ≤Ø 150 2800 140 9 60
TQD4000 4000 ≤Ø 180 3500 160 10 30
TQD5000 5000 ≤Ø 200 4000 180 11 30

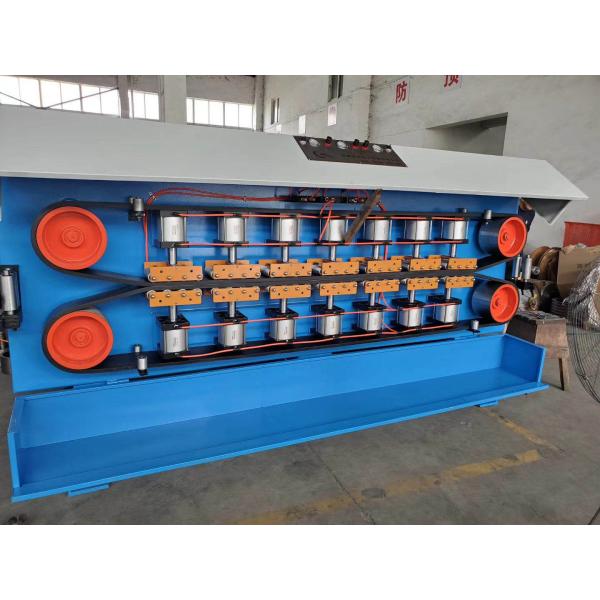

Double caterpillar hauling mode is used for wide range application;
The speed regulation range is wide as stepless speed regulation is adopted;
Uniformly hauling speed;
Low noise;
Compact structure & beautiful appearance;
Coding-length counting device is selectable for precisely measuring.
